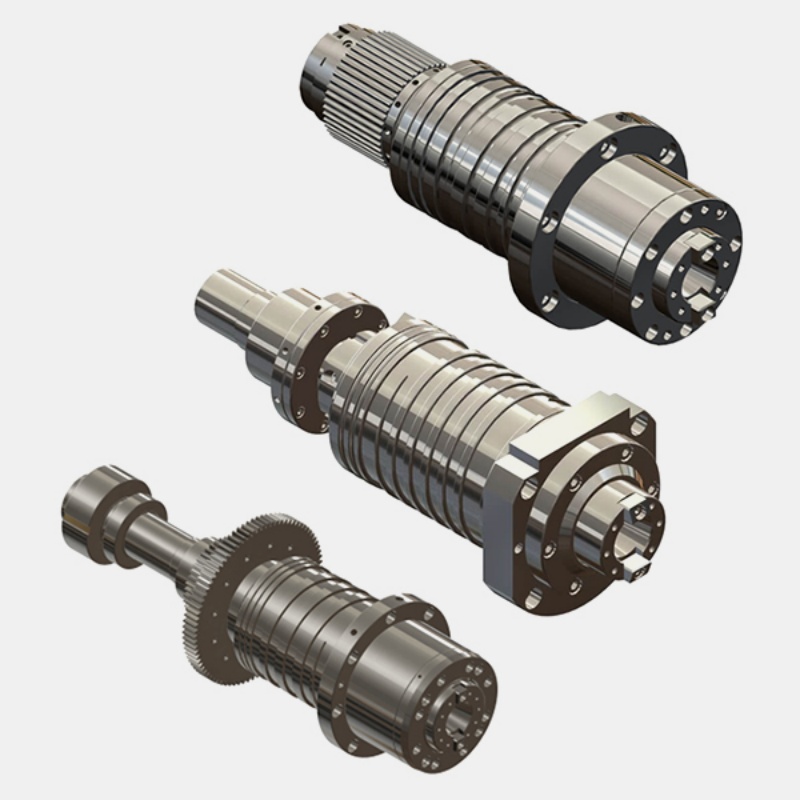

Design Principles Machine Center Series Spindle adopts integrated motor-spindle direct drive design,abandoning traditional mechanical transmission structure,which greatly reduces transmission error and power loss.The high-rigidity spindle body is matched with high-precision bearing assembly,and the optimized heat dissipation and lubrication system are configured to realize the organic combination of high speed,high precision and high rigidity.It is specially designed for the processing characteristics of large moulds,automotive and aerospace parts,with strong process adaptability and equipment compatibility. Performance Features High Speed & High Efficiency:Excellent high-speed operation performance,greatly improve machining efficiency of precision parts High Precision & Stability:Micron-level runout accuracy,stable rotation,ensure high machining precision and consistency of workpieces High Rigidity & Impact Resistance:High-strength spindle body structure,strong anti-impact and anti-vibration ability,adapt to heavy cutting working conditions Multi-scenario Adaptation:Support high-speed finishing and low-speed heavy cutting,meet diverse processing needs of different parts Easy Matching & Installation:Standardized interface design,perfect matching with various CNC machine centers,convenient assembly and replacement Long Service Life & Reliability:Optimized structural design and high-quality material selection,low failure rate,long-term stable operation Customization Options Customized spindle speed and torque parameters Customized interface size and connection mode Special cooling system design for special working conditions High-temperature and wear-resistant material modification Customized matching scheme for non-standard CNC machine centers

Working Principle Power Transmission Adopt motor-spindle integrated direct drive structure,the rotor of the built-in motor is directly connected with the spindle body,and the stator is fixed on the spindle housing.The electric energy is converted into mechanical energy to drive the spindle to rotate directly,which realizes zero transmission loss and fast speed response. Precision Guarantee The high-precision precision bearing assembly is used to support the spindle rotation,which strictly controls the radial and axial runout of the spindle.The high-rigidity spindle body structure effectively reduces the vibration and deformation during the spindle operation,ensuring the rotation stability and machining precision. Load Adaptation According to the different machining processes (high-speed finishing/low-speed heavy cutting),the spindle can realize the precise matching of speed and torque through the CNC system control,adapt to different cutting loads,and ensure the processing efficiency and quality. Temperature Control The optimized heat dissipation structure and special cooling system take away the heat generated by the motor operation and cutting friction in time,control the spindle temperature rise within the reasonable range,and avoid the influence of thermal deformation on the machining precision and service life.
