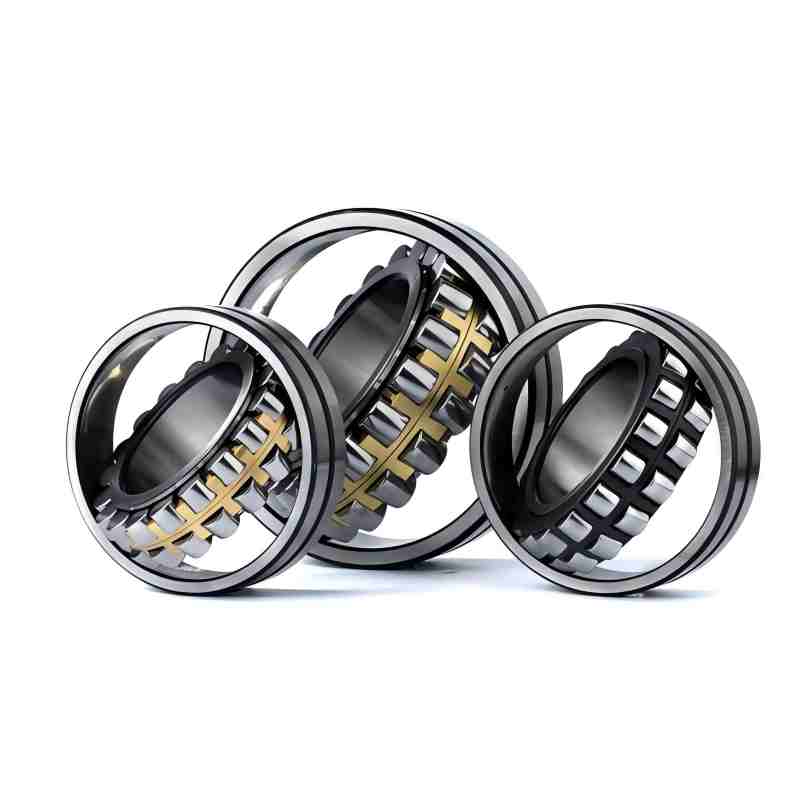

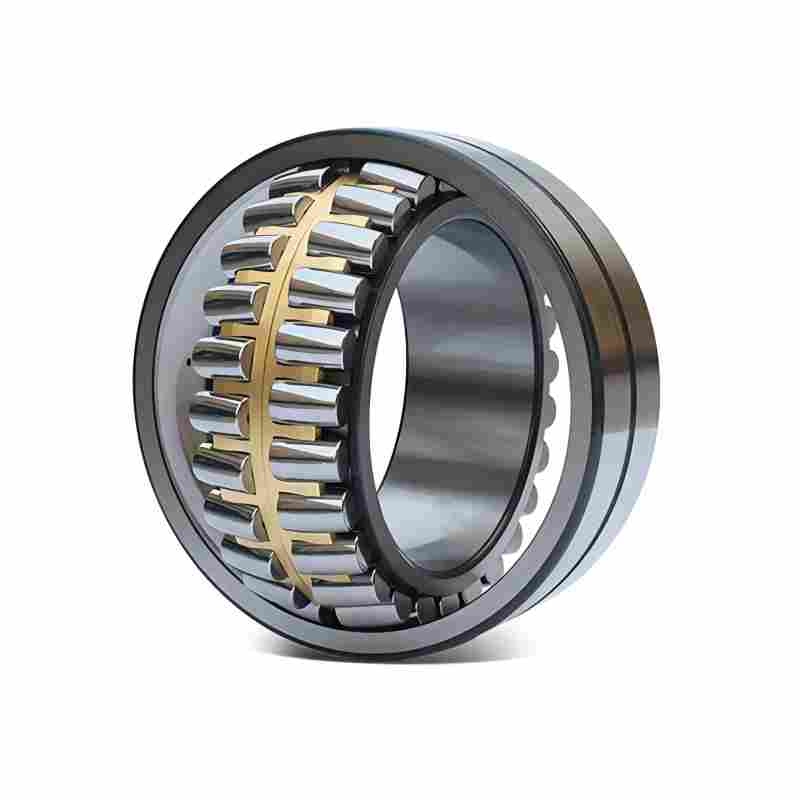

Spherical Roller Bearings

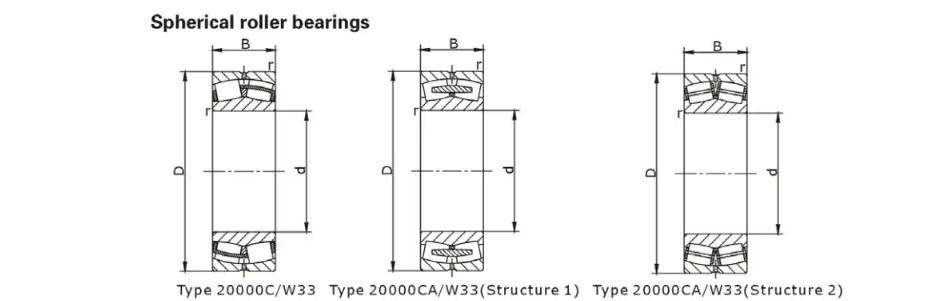

Design Principles: The inner ring with double raceways and the outer ring with a spherical raceway form a symmetrical load-bearing structure. The spherical rollers with drum-shaped profiles form line contact with raceways, maximizing the contact area and realizing uniform transmission of radial and bidirectional axial loads. The spherical design allows the rollers to slide slightly along the outer ring raceway, automatically compensating for ±1.5°-2.5° installation misalignment and shaft deflection, avoiding local stress concentration. The cage guides the spherical rollers to move orderly, reducing friction and collision between rollers and improving operational stability. The symmetrical structure balances load distribution, enhances shock resistance, and adapts to heavy-load frequent start-stop working conditions. Performance Features: Core High Radial Load Capacity: Line contact design + heavy-load reinforced material, with a maximum radial load of up to 10000 KN, 2-3 times higher than cylindrical roller bearings of the same size, adapting to the needs of ultra-heavy equipment. Self-Aligning Adaptability: No need for high-precision installation, can compensate for installation deviations and shaft deflection, reducing assembly difficulty and maintenance costs, and improving operational stability under complex working conditions. Strong Shock Resistance: Line contact between spherical rollers and raceways buffers impact loads, adapting to high-frequency impact scenarios such as mining and metallurgy, with low operational failure rate. Long Service Life & Stability: Surface hardening treatment of GCr15 material, precision polishing of roller end faces (Ra≤0.08μm), fatigue life increased by 40% compared with conventional bearings, adapting to long-term continuous operation. Flexible Working Condition Adaptability: Customizable sealing and lubrication schemes, compatible with various complex environments such as clean, dusty, and high-temperature, adapting to different heavy-load scenarios. Customization Options: Supports non-standard size (inner diameter, outer diameter, width) customization, self-aligning angle optimization (±2.5°-4°), corrosion-resistant material (SUS440C) customization.

Working Principle - Roller Arrangement and Load Distribution: Spherical rollers are symmetrically and evenly distributed along the spherical raceway of the outer ring. Radial load is uniformly transmitted through line contact between the rollers and the inner ring's double raceway and the outer ring's spherical raceway; bidirectional axial load is transmitted through contact between the roller end faces and the inner ring's shoulders, achieving bidirectional positioning. When installation eccentricity or shaft deflection exists, the spherical rollers can slide slightly along the outer ring's spherical raceway, automatically adjusting their posture to ensure uniform load distribution and achieve self-aligning function, avoiding local overload. - Thermal Management: Precision grinding of raceways and rollers + low-friction cage design reduces friction loss and effectively controls working temperature rise (typical temperature rise ≤15°C); combined with the thermal stability of heavy-duty special grease or circulating oil, it ensures the thermal stability of the equipment under heavy load and medium-high speed conditions. Installation Adaptability: The inner ring uses an interference fit with the shaft (shaft h7), and the outer ring uses a transition fit with the housing (hole H7), compatible with the assembly tolerance requirements of most industrial equipment; the self-aligning function reduces the requirements for the parallelism of the mounting base surface, simplifying the assembly process; the split structure facilitates separate installation of the inner ring, outer ring, and roller assembly, adapting to complex assembly procedures.
