How Thin Section Four Point Contact Ball Bearings Are Applied in Wind turbine small pitch adjustment rotary parts?

What are Thin Section Four Point Contact Ball Bearings?

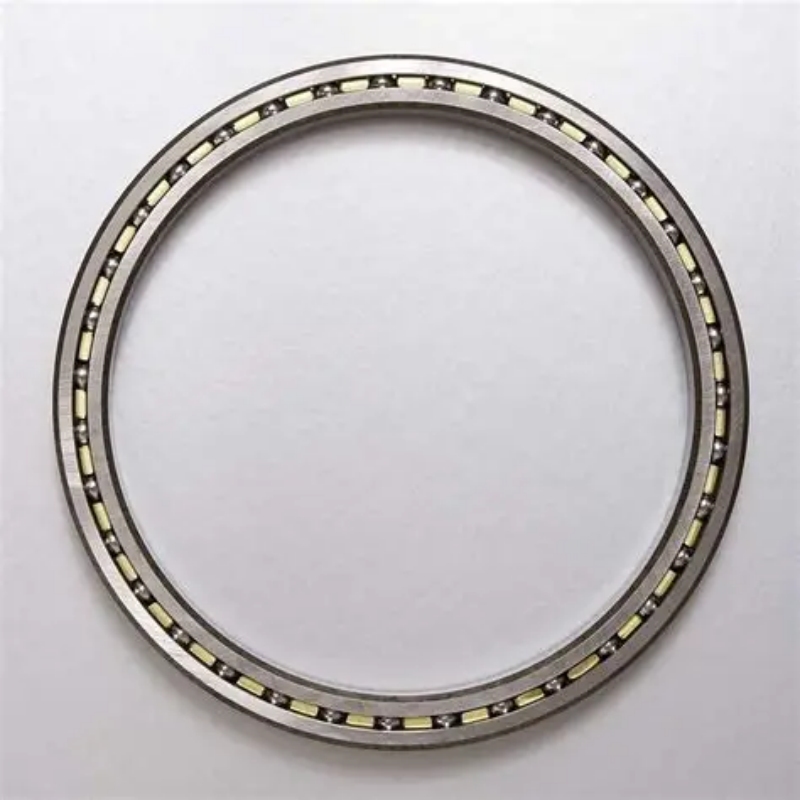

Thin section four point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are Wind turbine small pitch adjustment rotary parts?

Wind turbine small pitch adjustment rotary parts are core rotating execution units installed inside the wind turbine hub,responsible for fine-tuning the attack angle of wind turbine blades in real time according to real-time wind speed,wind direction and power output signals.Different from large main pitch slewing bearings for whole blade rotation,small pitch adjustment rotary components undertake micro-angle reciprocating rotation,frequent forward and reverse swing and low-speed continuous adjustment tasks.These assemblies integrate small pitch reducers,drive servo motors,torque feedback sensors and rotary bearing supports in an extremely narrow hub internal space.During long-term outdoor operation,they bear multiple complex loads:radial gravity load of the fine-tuning transmission mechanism,bidirectional axial thrust generated by wind alternating impact,and overturning moment caused by eccentric blade wind force.Meanwhile,the working environment is extremely harsh:long-term vibration from rotor rotation,sand dust erosion,temperature alternation between cold winter and hot summer,and occasional rain and salt fog corrosion for offshore wind turbines.Wind power equipment requires a service life of over 20 years,so the rotary bearings of small pitch adjustment parts must maintain stable low-torque rotation,tiny positioning deviation and excellent anti-fatigue performance under long-cycle alternating loads,and effectively resist external particle contamination and corrosion to reduce regular maintenance downtime of wind turbines.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.

Semiconductor Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers (CMP),and photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

Wind Power Equipment:Wind turbine small pitch adjustment rotary components:Applied to miniature pitch fine-tuning rotating supports inside turbine hubs to realize lightweight,compact micro-angle adjustment under composite alternating loads.

Yaw auxiliary small rotary modules:Adopted in auxiliary fine-adjustment rotary units of wind turbine nacelles for low-inertia stable rotation.

Large-diameter lightweight slewing auxiliary supports:Matching with main slewing bearings to undertake secondary moment and radial load sharing of wind power rotary structures.

The Importance of Thin Section Four Point Contact Ball Bearings in Wind turbine small pitch adjustment rotary parts

Constant ultra-thin cross-section solves the hub space limitation problem:The internal installation space of wind turbine hubs is extremely tight,and a large number of pitch drive circuits,hydraulic pipelines and sensing components are arranged in a concentrated way.Thin section four point contact ball bearings adopt equal cross-section design that will not expand with the increase of inner diameter,greatly reduce the radial and axial occupied space of small pitch rotary support,realize miniaturization and lightweight of the whole fine adjustment assembly,leave more layout space for other wind power control components,and effectively control the overall dead weight of the hub rotary system to reduce the rotor operation energy consumption.

Single bearing bears three composite alternating loads synchronously to simplify pitch transmission structure:During wind power operation,small pitch adjustment rotary parts continuously bear radial gravity of transmission parts,bidirectional axial alternating thrust brought by unstable wind and overturning moment formed by eccentric wind load on blades.One thin section four point contact ball bearing can independently undertake the three-way composite load instead of two groups of matched angular contact ball bearings,reduce the number of bearing matching parts inside the pitch fine adjustment module,simplify the assembly process of wind turbine hub components,lower the manufacturing and assembly cost of wind power equipment,and avoid positioning error caused by multiple bearing assembly accumulation.

Stable low fluctuation torque ensures high-precision micro pitch adjustment:Wind turbines need to continuously adjust blade attack angles in small ranges to stabilize power output.The ultra-precision P4/P5 grade raceway superfinishing technology of thin section four point contact ball bearings realizes ultra-smooth rotation with tiny friction torque fluctuation.Even under long-term low-speed reciprocating micro swing,the bearing will not produce rotation jitter,guarantee micron-level repeated positioning accuracy of small pitch adjustment parts,avoid power output fluctuation caused by blade angle adjustment deviation,and improve the overall power generation efficiency of wind turbines.

Low inertia rotary structure reduces pitch adjustment response lag:The thin-section inner and outer rings and tiny steel ball rolling elements greatly reduce the rotary inertia of the small pitch adjustment shaft.When wind speed suddenly changes,the pitch servo drive can drive the bearing to complete rapid angle fine adjustment without obvious response delay,timely adjust the blade wind receiving state to avoid overload damage of the unit under strong wind,and improve the safety and stability of wind turbine operation.

Diversified sealing and material options adapt complex wind field working conditions:J-type double rubber sealed thin bearing series can block sand dust,metal wear debris and rainwater splash invading the bearing interior,effectively preventing rolling element abrasion failure caused by particle pollution.Customized 9Cr18 stainless steel bearing versions are available for coastal offshore wind farms to resist salt fog corrosion and extend the service life of pitch rotary parts under marine climate.Meanwhile,special anti-aging wind power long-life grease can be matched to reduce the maintenance frequency of wind turbine hubs which are difficult to reach for overhaul,cutting wind farm operation and maintenance costs.

Excellent anti-fatigue performance matches 20+ years wind turbine full life cycle:The bearing rings and steel balls are made of high-hardness GCr15 bearing steel after superfinishing and heat treatment,with outstanding anti-alternating fatigue performance.It can adapt to millions of times reciprocating micro rotation cycles of small pitch adjustment parts within the 20-year design life of wind turbines,effectively reduce early bearing wear,crack and failure risks,and lower unexpected shutdown loss of wind farms caused by pitch bearing damage.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for wind turbine small pitch adjustment rotary parts,collaborative robot joint modules,slim rotary automation equipment and precision machinery.

Wind Power Special Customization:Supply lightweight low-torque thin bearings with enhanced anti-sand dust double sealing,salt fog resistant stainless steel material and wind power long-life anti-aging lubricating grease;customized prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of dimensional tolerance,rotational torque and runout before shipment.

Global Fast Shipment:Mass stock of KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers onshore and offshore wind power customers worldwide.

Authoritative Quality Certification:All products meet ISO 9001 and relevant national precision bearing standards,and SGS test inspection reports can be provided upon request.
