How Thin Section Four Point Contact Ball Bearings Are Applied in Automated inspection rotary platforms for lithium battery production lines?

What are Thin Section Four Point Contact Ball Bearings?

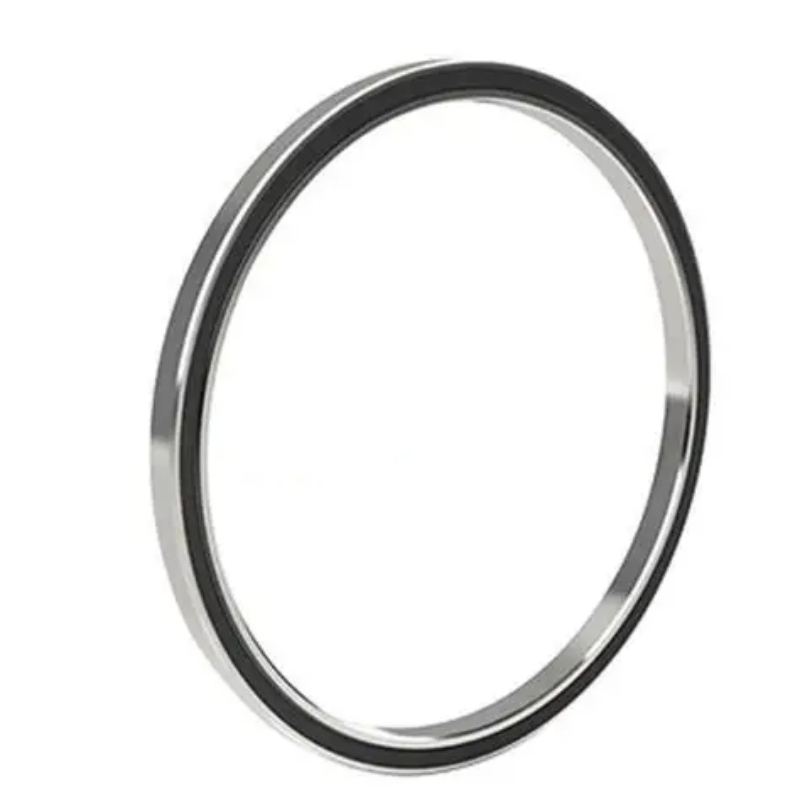

Thin section four point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm.Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18.Precision levels:P0,P6,P5 and P4.Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are Automated inspection rotary platforms for lithium battery production lines?

Automated inspection rotary platforms are core rotary positioning equipment integrated into lithium battery automated assembly and testing production lines,responsible for carrying lithium cells,battery modules and PACK assemblies to complete multi-station continuous visual inspection,thickness testing,defect scanning and electrical performance detection.Lithium battery manufacturing involves pole piece coating,winding,assembly,liquid injection,formation and final offline full inspection.Rotary platforms realize automatic station switching through continuous indexing rotation,matching CCD high-speed cameras,laser thickness gauges and insulation testing probes to detect surface scratches,pole piece dislocation,liquid leakage and dimensional tolerance defects in all directions of batteries.This equipment runs continuously 24 hours in dust-containing workshop environments with trace electrolyte mist.During indexing rotation,the rotary table bears the dead weight of battery workpieces,vertical axial pressure from detection equipment,radial offset load caused by unbalanced battery placement,and alternating overturning moment during rapid start-stop indexing.The rotary support bearing directly determines indexing repeat positioning accuracy,inspection image stability and long-term continuous operation stability of the whole inspection line.Tiny rotation jitter or angular deviation will lead to missed inspection and false detection of battery defects,severely reducing product yield of lithium batteries.Equipment designers require rotary bearings to feature ultra-thin outline,low rotation inertia,stable low friction torque,excellent dust and chemical mist resistance and long fatigue service life.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.

Semiconductor Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers (CMP),and photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

The Importance of Thin Section Four Point Contact Ball Bearings in Automated inspection rotary platforms for lithium battery production lines

Constant ultra-thin cross-section optimizes rotary platform overall structure layout:Lithium battery inspection equipment pursues compact and slim rotary table design to reserve more installation space for multi-channel CCD cameras,laser sensors and testing fixtures.Thin section four point contact ball bearings adopt equal cross-section design that does not thicken with the increase of inner diameter.Compared with matched double angular contact bearings,single bearing greatly reduces the overall thickness and outer diameter of the rotary support structure,effectively lightens the rotary table moving part weight,lowers the driving power demand of servo indexing motor,and shortens the whole inspection equipment body length to save factory workshop space.

Single bearing bears composite loads generated by battery inspection rotation:During full battery inspection,the rotary platform bears three kinds of simultaneous loads: radial offset load from unplaced lithium cells,vertical axial load from pressing detection fixtures,and overturning moment during rapid indexing acceleration and deceleration.One thin section four point contact ball bearing can independently bear radial,bidirectional axial and overturning composite loads,replacing two sets of paired angular contact ball bearings.It simplifies the rotary table transmission and support structure,reduces the number of assembly parts,lowers equipment processing and assembly cost,and avoids positioning deviation caused by matching error of double bearings.

Ultra-stable low torque ensures micron-level inspection positioning precision:Lithium battery surface defect inspection requires extremely high rotary indexing repeat accuracy; micro jitter during rotation will cause blurry camera images and missed detection of tiny pole piece flaws.Thin section four point contact ball bearings adopt P4/P5 ultra-precision super-finished raceways,delivering smooth rotation with tiny friction torque fluctuation.Under continuous alternating load,the bearing maintains stable rotation without angular deflection,guarantees the rotary table indexing repeat positioning accuracy within micron level,eliminates false detection and missed detection risks of lithium battery visual inspection,and improves finished battery product yield.

Low inertia realizes high-speed continuous indexing to boost inspection line throughput:The thin-wall inner and outer ring structure and small-diameter steel balls greatly reduce rotary inertia of the rotary table support.The inspection rotary platform equipped with thin section four point contact ball bearings can complete fast acceleration,instant stop and frequent forward-reverse indexing without rotation lag,shortening single battery station switching cycle,greatly lifting the hourly inspection throughput of the lithium battery automated production line and improving overall production efficiency.

Diversified sealing and material options adapt lithium battery workshop harsh environment:Lithium battery inspection workshops contain floating dust,trace electrolyte volatile mist and cleaning liquid splash.J-series double rubber sealed thin bearings effectively isolate battery powder,chemical mist and tiny workpiece debris to prevent internal bearing corrosion and contamination.For high-standard dry room lithium battery production workshops,9Cr18 stainless steel customized bearings are optional to resist weak acid electrolyte corrosion,extending bearing service life and reducing unexpected equipment shutdown caused by bearing failure.

Excellent anti-fatigue performance cuts production line maintenance downtime:Precision ground raceways and high-hardness GCr15 or stainless steel rolling elements provide outstanding fatigue resistance,adapting to 24-hour non-stop frequent reciprocating indexing rotation of inspection rotary platforms.Low wear characteristics extend bearing lubrication maintenance cycle and replacement cycle,lowering after-sales maintenance frequency of lithium battery production lines and reducing production loss brought by equipment halt.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for lithium battery automated inspection rotary platforms,slim indexing equipment and other compact precision automation machinery.

Battery Inspection Equipment Customization:Supply low-torque,dust-resistant thin bearings with anti-electrolyte special grease,full stainless steel material and enhanced double-contact rubber seals; customized prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of dimensional tolerance,rotational torque and runout before shipment.

Global Fast Shipment:Mass stock of KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery; complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and relevant national precision bearing standards,and SGS test reports can be provided upon request.
