RU Crossed Roller Bearings Elevate Rotational Precision for US Machine Tool Manufacturers

Date: January 15, 2026

Customer:Top-tier enterprise in the U.S. machine tool manufacturing industry

Background

In early 2026, a renowned U.S. manufacturer of CNC equipment encountered a technical bottleneck regarding a core component of the rotary table while developing a new generation of high-precision machining centers. The client specified precise requirements for an ultra-high-precision crossed roller bearing: an outer diameter of 150 mm and an inner diameter of 76 mm, with the installation height strictly confined to an extremely thin dimensional envelope. Furthermore, the bearing was required to meet P4-class precision standards to ensure that the rotary table could maintain micron-level rotational accuracy even under high-speed operating conditions.

The client initially tested standard-series products from multiple suppliers; however, none were able to simultaneously satisfy both the stringent dimensional constraints and the precision requirements. Although standard RU-series crossed roller bearings met the required precision metrics, their conventional height exceeded the installation space allotted in the client's design. This technical challenge directly stalled the progress of the entire project.

What Are the RU-Type Crossed Roller Bearings?

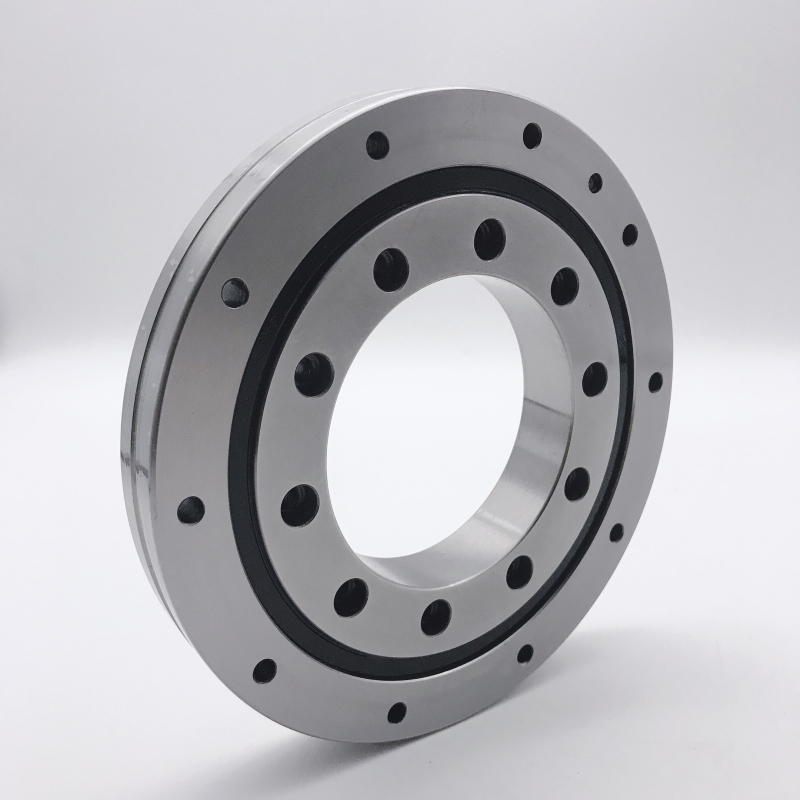

RU-Type Crossed Roller Bearings are a high-precision rolling bearing featuring a split inner ring design and cylindrical rollers arranged at 90° crisscrossed angles. Unlike RA-Type cross roller bearings with a one-piece inner ring, its two-part inner ring with mounting holes enables easy installation and alignment, making it ideal for applications requiring compactness, high rigidity, and multi-directional load capacity. Engineered by NewBeeTrans, these bearings achieve P4/P2 precision grades, supporting radial, axial, and moment loads simultaneously, and are widely used in robotics, precision machinery, and automation equipment.

Features of RU-Type Crossed Roller Bearings

RU-Type Crossed Roller Bearings stand out in precision industrial applications due to their unique structural design and outstanding performance advantages, with core features as follows:

Split Inner Ring for Easy Installation & Alignment

The two-piece inner ring simplifies assembly and maintenance, especially in confined spaces. Mounting holes on the inner ring allow direct bolting to machinery, reducing alignment errors caused by indirect fixing. Compared to integral ring bearings, it eliminates the need for complex positioning tools, cutting installation time by over 40%.

High Load Capacity & Rigidity

The 90° crossed roller arrangement distributes loads evenly across the raceways, enabling a single bearing to withstand radial, axial, and tilting moments. The line-contact design between rollers and raceways maximizes the effective contact area, ensuring high rigidity and minimizing deformation under heavy loads—critical for precision equipment requiring stable positioning.

Ultra-Precision Rotation Performance

Available in P4 (standard) and P2 (ultra-precision) grades, these bearings achieve radial runout ≤ 0.002mm, ensuring smooth and accurate motion. The raceways and rollers undergo precision grinding, meeting the micron-level accuracy requirements of CNC rotary tables, robotic arms, and optical instruments.

Space-Saving & Lightweight Design

The thin-section structure reduces the machine footprint while maintaining high load capacity. Standard models cover inner diameters from 50mm to 200mm, with customizable sizes upon request, making them suitable for equipment with strict space constraints.

Long Service Life & Environmental Adaptability

Bearing rings and rollers are primarily made of GCr15 high-carbon chromium steel for durability. SUS440C stainless steel is available for corrosive environments, and optional ceramic rollers extend service life in high-speed or extreme conditions. The robust material selection and optimized roller design enhance wear resistance and fatigue life.

Applications of RU-Type Crossed Roller Bearings

Leveraging their high precision, compact design, and multi-directional load capacity, RU-Type Crossed Roller Bearings are widely used across key industrial fields:

Industrial Robots:Applied to rotary joints, robotic arm linkages, and harmonic drive supports, they ensure precise and stable motion for automation tasks, withstanding repeated start-stop cycles and complex load combinations.

Machine Tools:Integrated into CNC rotary tables, indexing heads, and multi-axis machining centers, their high rigidity and precision maintain machining accuracy, critical for high-precision cutting and forming operations.

Medical Equipment:Used in CT/MRI scanner gantries and surgical robot rotation mechanisms, the corrosion-resistant SUS440C variant and ultra-low vibration performance meet the strict hygiene and precision requirements of medical environments.

Semiconductor Manufacturing:Ideal for wafer handling robots and precision alignment stages, their P2-grade ultra-precision and cleanroom-compatible materials ensure accurate positioning of delicate semiconductor components.

Optical & Measuring Instruments:Installed in telescope mounts and laser cutting rotary platforms, they minimize vibration and ensure stable rotation, supporting high-precision measurement and processing.

Price of RU-Type Crossed Roller Bearings

The price of RU-Type Crossed Roller Bearings is determined by multiple interrelated factors, primarily including product specifications and order requirements:

Material Selection Standard:GCr15 high-carbon chromium steel is cost-effective for general industrial use. SUS440C stainless steel increases costs by 20%-30%, suitable for corrosive or medical environments. Ceramic rollers command a higher premium but offer superior performance in extreme conditions.

Precision Grade:P4-grade bearings are the standard option for most industrial applications. P2-grade ultra-precision models are 15%-25% more expensive, designed for semiconductor, medical, and optical fields requiring micron-level accuracy.

Size & Customization:Larger bearings (inner diameter > 150mm) cost more due to increased raw material consumption and complex machining. Special customizations such as non-standard sizes, special lubricants, seals, or preload adjustments raise prices by 10%-20%.

Order Quantity & Delivery Time:Bulk orders (≥100 pieces) qualify for 15%-25% quantity discounts. Small-batch (≤30 pieces) or urgent orders (delivery within 7 days) incur additional production and logistics costs, increasing unit prices by 20%-35%.

How to Choose the RU-Type Crossed Roller Bearings

To select the optimal RU-Type Crossed Roller Bearing, purchasers should comprehensively evaluate the following key factors:

Confirm Dimensional Requirements:Match the inner diameter (d), outer diameter (D), and width (B) to the equipment design drawings. NewBeeTrans offers standard sizes from 50mm to 200mm, with custom dimensions available for special applications.

Evaluate Load Capacity Needs:Ensure the bearing can handle combined radial, axial, and moment loads of the application. Consult the manufacturer’s load rating data to avoid overload-induced failure.

Determine Precision Grade:Select P4 grade for general precision requirements and P2 grade for ultra-high-precision applications such as semiconductor manufacturing or optical instruments.

Adapt to Environmental Conditions:Choose GCr15 steel for standard environments, SUS440C stainless steel for humid or corrosive settings, and ceramic rollers for high-speed or extreme-temperature conditions.

Verify Supplier Reliability:Prioritize certified manufacturers like NewBeeTrans, verifying ISO 9001 quality certification, advanced production equipment, and comprehensive after-sales support to ensure product quality and technical assistance.

Manufacturer of RU-Type Crossed Roller Bearings

NewBeeTrans is a professional manufacturer of high-quality RU-Type Crossed Roller Bearings, specializing in providing reliable precision bearing solutions for global customers in robotics, machine tools, medical equipment, and semiconductor industries. With 20 years of experience and customer-centric services, it has established a reputation as a trusted partner worldwide.

Comprehensive Product Range:The standard product line covers inner diameters from 50mm to 200mm, with precision grades P4 and P2. It offers options for GCr15/SUS440C/ceramic materials, and supports non-standard size customization to meet diverse application needs.

Advanced Production & Testing Capabilities:Equipped with international advanced CNC precision grinders, integral heat treatment lines, and automatic roller sorting equipment, NewBee implements strict quality control throughout the production process. 100% inspection of finished products (including precision runout, load capacity, and wear resistance) ensures consistent reliability.

Professional Customization Services:A team of senior engineers provides one-stop customization solutions, including non-standard size design, material modification, special lubrication, and seal configuration. The sample development cycle is 4–8 weeks, with urgent production support for critical projects.

Reliable Quality Assurance & After-Sales:All products comply with ISO 9001 and international bearing standards, backed by a 12-month warranty. The 24/7 technical support team offers installation guidance, maintenance training, and rapid fault diagnosis to ensure uninterrupted customer production.

Efficient Global Logistics:Standard models are in stock for fast delivery within 5–10 days. Cooperating with global logistics partners (DHL, FedEx) and overseas warehouses, NewBee provides timely delivery to customers worldwide, supporting just-in-time production schedules.

Precautions for RU-Type Crossed Roller Bearings

Proper installation, lubrication, and maintenance are critical to maximizing the service life and performance of RU-Type Crossed Roller Bearings. Key precautions include:

Standardized Installation:Thoroughly clean the bearing, shaft, and housing bore to remove burrs, oil stains, and impurities. Align the two-part inner ring accurately during assembly, ensuring uniform bolt tightening to avoid deformation. Use specialized tools to apply force evenly—prohibit hammering or rough handling that damages raceways or rollers.

Scientific Lubrication Management:Select lubricants based on temperature and speed: standard lithium-based grease for general conditions, high-temperature grease for environments above 120°C, and low-friction grease for high-speed applications. Open-type bearings require grease replacement every 800–1500 working hours; sealed models should be inspected regularly for leakage.

Real-Time Operation Monitoring:Monitor bearing temperature, vibration, and noise during operation. The normal operating temperature ranges from 30°C to 70°C, with a temperature rise not exceeding 15°C. Abnormal spikes may indicate misalignment, overload, or lubrication failure—shut down equipment immediately for inspection.

Proper Storage & Handling:Store bearings in a clean, dry, ventilated environment with humidity ≤60%, avoiding contact with corrosive substances and strong magnetic fields. Store horizontally in original packaging to prevent ring deformation, and use shockproof packaging during transportation to protect precision.

Regular Inspection & Maintenance:Conduct periodic disassembly inspections every 3–6 months for heavy-duty applications. Check for raceway/roller wear, cage integrity, and inner ring connection tightness. Replace worn bearings promptly to avoid secondary equipment damage.
