Newbee Transmission Technical Bulletin: Precision Preload Solutions for Angular Contact Ball Bearings

Understanding Angular Contact Ball Bearings

Angular contact ball bearings combine high-speed capability with exceptional load capacity. Compared to deep groove ball bearings, they offer superior axial load handling while maintaining excellent radial load performance. However, their unique design allows them to withstand axial loads in only one direction, requiring specific application considerations.

Structural Characteristics & Unidirectional Load Capacity

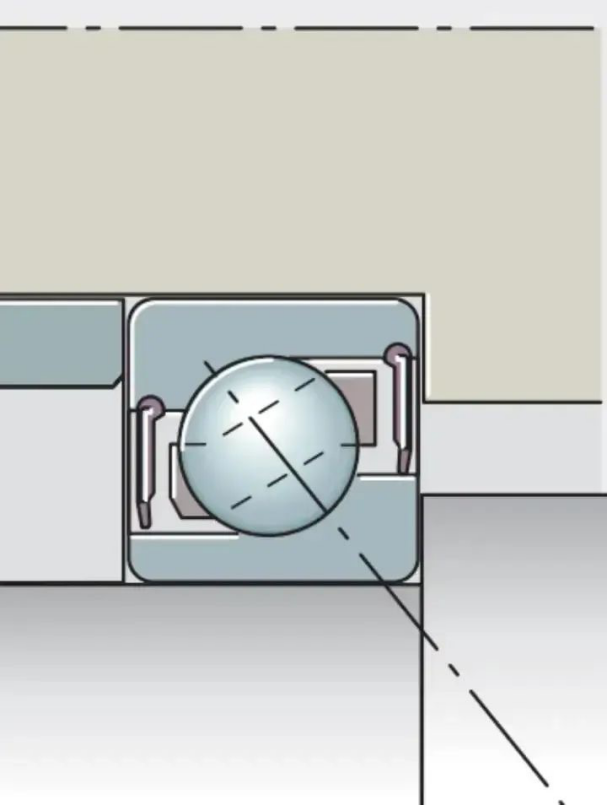

The internal geometry of angular contact ball bearings (see diagram below) dictates their unidirectional axial load capacity - specifically from the thicker side of the inner ring toward the thicker side of the outer ring. Reverse axial loads cause separation between rings, leading to:

Heat generation

Accelerated wear

Premature bearing failure

 The Necessity of Axial Preload

To prevent failure modes, axial preload must be applied in the bearing's designed load direction (from outer ring thick side to inner ring thick side).

 Key Preload Principles:

1. Single Bearing Applications

Preload must exceed maximum expected reverse axial load

Additional minimum load requirement must be maintained

Field conditions must be factored into calculations

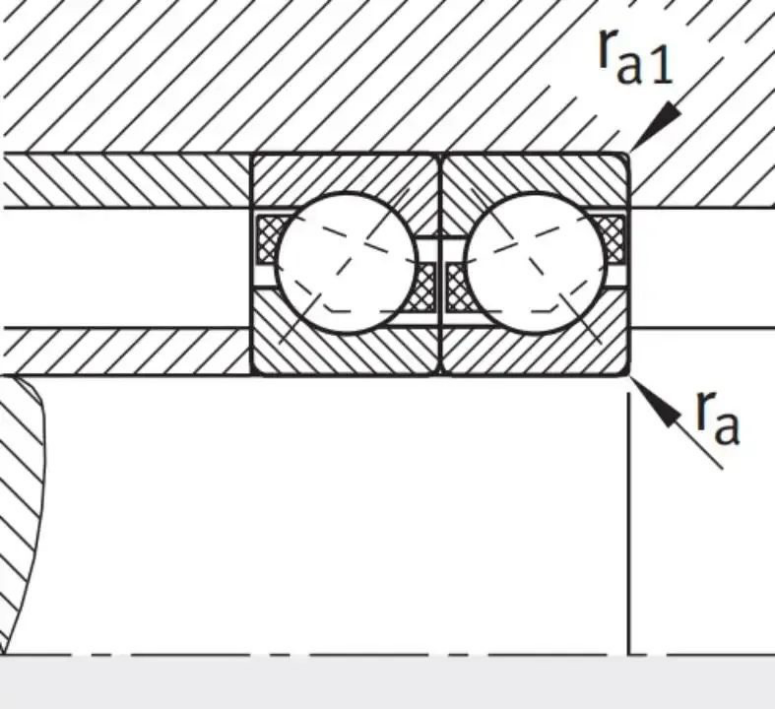

 2. Paired Bearing Arrangements

Common configurations for bidirectional axial loads:

Back-to-back (DB): Thick sides facing outward

Face-to-face (DF): Thin sides facing outward

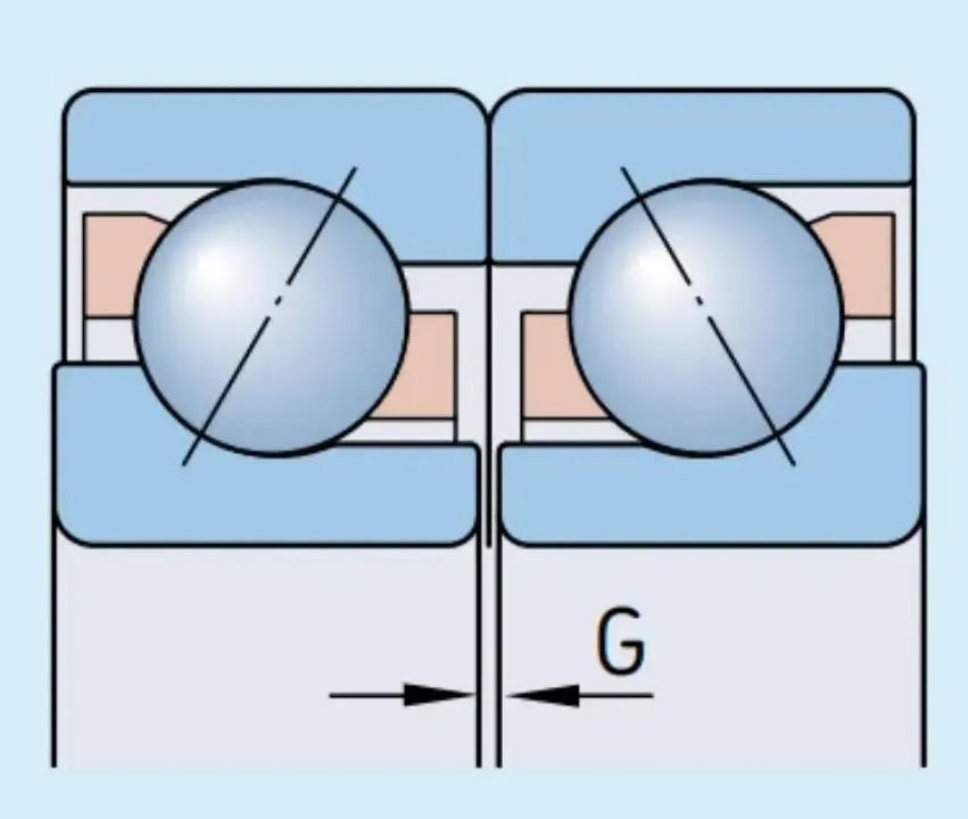

 Preload Mechanics in Paired Bearings:

In natural state, bearing end faces may not align perfectly

Compressing thick sides creates thin-side gaps

Controlled compression generates negative clearance (preload)

Precision spacer rings regulate preload magnitude

Comprehensive Preload Control Factors

Final operational clearance depends on:

Manufactured bearing dimensions (matching)

Shaft interference fit specifications

Thermal expansion effects

 Application-Specific Solutions

Industrial Motors:

Use factory-prepaired bearing sets

 Gearboxes & Precision Machinery:

Require customized preload calculations

Need precise spacer adjustments

 Newbee Transmission's Expertise

Our engineering team provides:

Preload calculation services considering all operational parameters

Bearing matching technology for optimal paired performance

Installation guidance for proper preload achievement
