How Thin Section Bearings Are Applied in the Optoelectronic Systems?

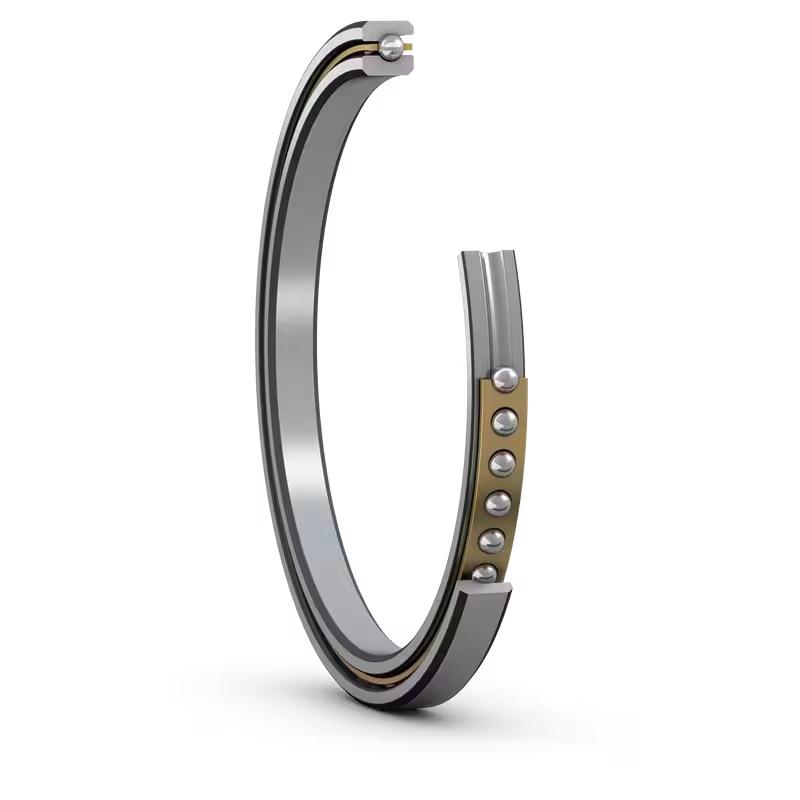

What are Thin Section Bearings?

The thin-section bearing is a type of bearing that has achieved an extremely thin bearing cross-section as well as miniaturized and lightweight designs.NewBeetrans is a professional thin section bearings manufacturer,we provide deep groove ball bearings,angular contact bearings and four-point contact ball bearings.There are three types of thin-section bearings: deep groove ball bearings, angular contact ball bearings, and four point contact ball bearings.

NewBeeTrans mainly produces and manufactures various standard and customized thin-section bearings,with bearing inner diameters ranging from 10 millimeters to 1000 millimeters.The precision of thin-section bearings ranges from ABEC1 to ABEC7.They are widely used in optoelectronic systems,aerospace,semiconductor equipment,medical machinery,and robots.

What are Optoelectronic Systems?

Optoelectronic systems are interdisciplinary precision systems that integrate optics and electronicsrealizing the conversiontransmissiondetection and control of optical and electrical signals.They are widely used in optical communication equipmentlaser scanning devicesphotoelectric sensorsprecision optical positioning platformsinfrared detection equipment and other high-end optoelectronic products.These systems have extremely stringent requirements for rotating components: ultra-high positioning precision to ensure signal stability and imaging qualitycompact structure to adapt to limited internal spacelow vibration and low particle emission to maintain the cleanliness of optical pathsand stable operation under long-term working conditions.Any tiny mechanical error or vibration will directly affect the performance and accuracy of optoelectronic equipment.

The Importance of Thin Section Bearings in Optoelectronic Systems

Thin section bearings are core rotating components of optoelectronic systemsand their performance directly determines the stability and precision of the whole equipment.Their unique advantages are irreplaceable in this field:

Compact structure for space-limited design:With cross-sections up to 75% thinner than standard bearingsthey perfectly fit the miniaturized and integrated design of optoelectronic systemssolving the problem of limited installation space in precision optoelectronic equipment.

Ultra-high precision for stable signal transmission:Up to ABEC 5–7 high precision and precision-ground raceways ensure accurate rotation and positioning of optical componentsavoiding signal distortion or imaging blurring caused by rotational deviation.

Low friction and low vibration:Optimized rolling element geometry reduces sliding friction and vibrationensuring smooth operation of optoelectronic systems and maintaining the stability of optical paths.

Clean and low-pollution operation:They help maintain cleanliness and control particle generationmeeting the strict clean requirements of optoelectronic systems and preventing optical components from being polluted.

Lightweight design for portability:Lightweight structure reduces the overall weight of optoelectronic equipmentimproving the mobility of portable devices without losing load capacity and rigidity.

Composite load-bearing capacity:They can bear radialaxial and overturning moment loads simultaneouslysimplifying the rotating structure of optoelectronic systems and improving operational stability.

Manufacturer of Thin Section Bearings

Newbeetrans (Luoyang Newbee Transmission Technology Co.Ltd.) is a professional thin section bearings manufacturer with mature supporting solutions for the optoelectronic industry.

Professional design & customization capability:It has a team of more than 30 senior engineersproficient in ISODINJIS and other international standards.It provides targeted design for optoelectronic scenariosand completes customized sample development within 15 days with strict confidentiality protection for customer drawings.

Advanced precision manufacturing:Equipped with automatic CNC machine tools and high-precision grinding equipmentit adopts precision cold ring rolling and super-fine grinding processes to achieve P5/P4 level tolerancemeeting the high-precision requirements of optoelectronic systems.

Strict quality assurance:Full-process quality inspection is carried out from raw material verification to finished product testingwith 100% full inspection of key dimensions,noise,vibration and service life.It has passed ISO 9001 and GB/T 307.1 certifications.

Efficient global logistics:It cooperates with DHL FedEx and other international logistics providersand has set up overseas warehouses in Europe and North America to achieve fast delivery within 7–10 days.Customized anti-rust, vacuum and shock-proof packaging ensures zero damage during transportation.

For technical specifications,pricing,or custom bearing solutions:

Email:paul@newbeetrans.com

Website:www.newbeetrans.com
