How Precision RA Crossed Roller Bearings Are Applied in the Lithography and Precision Inspection Stages?

What are Precision RA Crossed Roller Bearings?

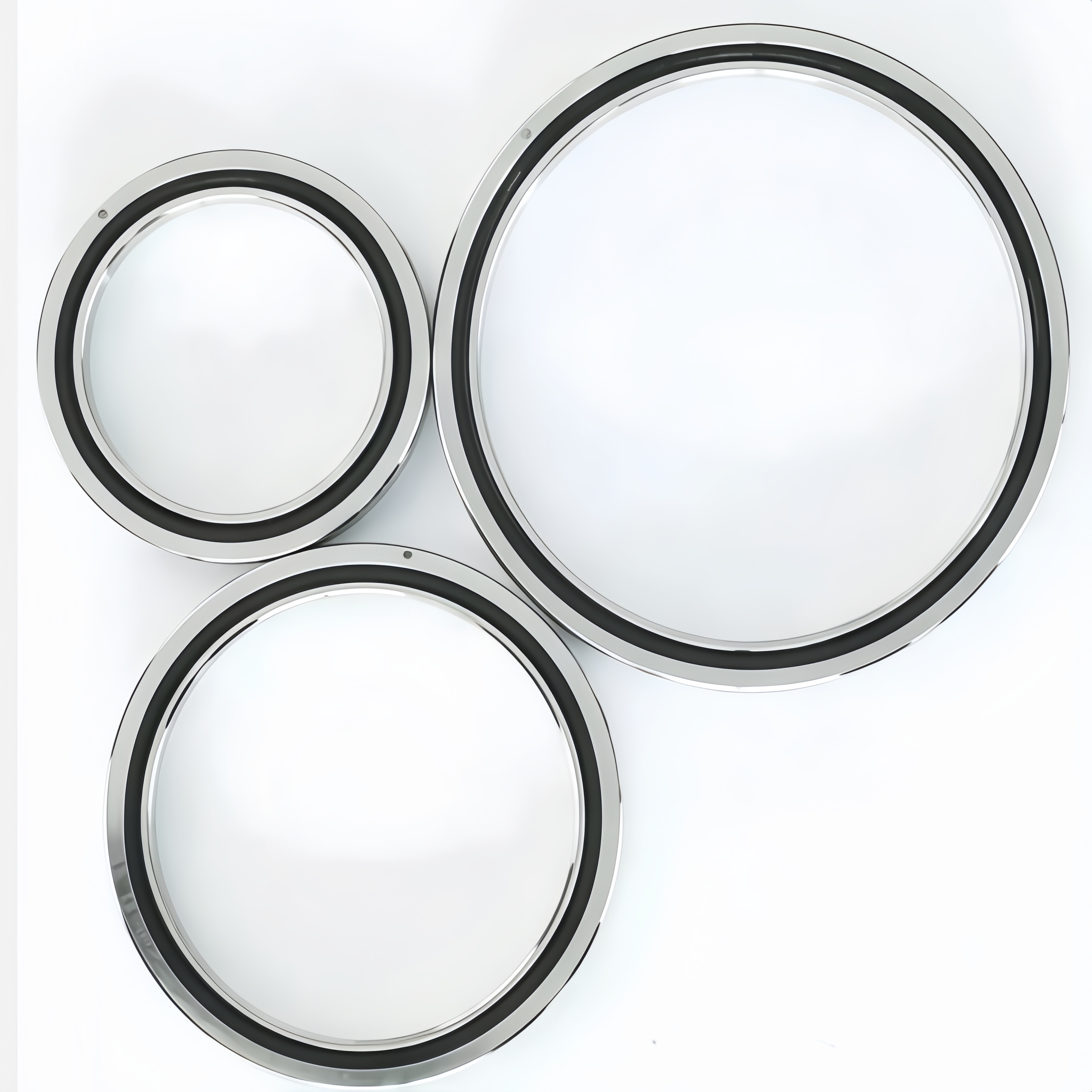

RA crossed roller bearings are specifically designed for precision rotary systems,featuring a 90° orthogonal crossed roller layout that enables simultaneous bearing of radial loads,axial loads,and overturning moment loads.They are suitable for high-precision,high-rigidity,and space-constrained applications.Their integrated inner ring structure enhances system rigidity and simplifies installation,while the optional preload configuration eliminates internal clearances,making them ideal for equipment requiring stable and precise rotation,such as industrial robots,precision machine tools,optical instruments,and semiconductor manufacturing equipment.

What are Lithography and Precision Inspection Stages?

Lithography and precision inspection stages are the core motion platforms of semiconductor manufacturing equipment,serving as the"precision foundation"for wafer patterning and quality verification.

Lithography stages are ultra-precision positioning platforms in photolithography systems (including EUV/DUV lithography machines),responsible for nanometer-level accurate alignment and movement of silicon wafers during circuit pattern transfer.They must operate in ultra-clean,high-vacuum environments with sub-nanometer positioning accuracy and ultra-low vibration to ensure the integrity of nanoscale circuit patterns.

Precision inspection stages are used in wafer inspection,metrology,and defect detection equipment (such as electron beam inspection and optical measurement systems).They enable high-precision scanning and positioning of wafers,supporting sub-micron to nanometer-level defect detection and dimensional measurement.Both stages demand ultra-high rigidity,zero vibration,cleanroom compatibility,and long-term stable operation-any tiny vibration or positioning error will directly lead to wafer scrapping.

The Importance of RA Crossed Roller Bearings in Lithography and Precision Inspection Stages

RA crossed roller bearings serve as the core rotary/linear support for lithography and precision inspection stages,directly determining the ultimate precision,stability,and yield of semiconductor manufacturing.

Ultra-High Rigidity for Zero-Vibration Motion:The crossed-roller layout maximizes contact area,effectively resisting deformation and eliminating micro-vibration under dynamic loads.This rigidity ensures jitter-free operation during high-speed scanning or precise positioning,which is critical for maintaining nanometer-scale pattern accuracy in lithography and avoiding missed defects in inspection.

Composite Load Capacity for Multi-Axis Motion:Simultaneously bears radial loads (wafer/stage weight),axial loads,and overturning moment loads (dynamic motion forces),replacing multiple bearing combinations and simplifying the stage’s compact structure.This integrated design reduces assembly errors and enhances overall stability in multi-axis linkage operations.

Precision Rotation/Positioning for Nanometer-Level:Accuracy P4/P2 grade precision and ≤0.002mm runout tolerance deliver exceptional motion accuracy.This enables lithography stages to achieve sub-nanometer alignment precision and inspection stages to realize micron-level scanning accuracy,meeting the strict requirements of advanced semiconductor processes (below 7nm).

Compact & Lightweight Design for Space-Saving Integration:The ultra-thin section (8mm–13mm) and lightweight design perfectly fit the ultra-compact layout of lithography and inspection stages.This compactness reduces the overall weight of the stage,improves motion agility,and optimizes the use of limited space in vacuum/cleanroom equipment.

Cleanroom & Vacuum Compatibility for Semiconductor Environments:Constructed from SUS440C stainless steel with optional special vacuum grease (e.g.,Krytox®) and open/double-seal configurations,the bearings minimize particle generation and outgassing.This compliance with ISO cleanroom and high-vacuum standards prevents wafer contamination and ensures stable operation in extreme semiconductor manufacturing environments.

Long Life for 24/7 Continuous Production:Surface-hardened materials (HRC 60-62) enhance fatigue resistance,supporting uninterrupted round-the-clock operation in high-throughput semiconductor fabs.This long service life reduces downtime and maintenance costs,critical for maximizing production efficiency and yield.

Manufacturer of Precision RA Crossed Roller Bearings

Newbeetrans is a professional manufacturer of RA crossed roller bearings,providing tailored solutions for lithography and precision inspection stages in semiconductor manufacturing.

Semiconductor-Focused Customization:Offers designs for cleanroom/vacuum compatibility,zero backlash,and low particle generation.Supports special vacuum lubrication,non-standard dimensions,and stainless steel constructions;samples ready in 10–15 days.

Precision Manufacturing:Adopts super-fine grinding for P4/P2 grade precision,with strict quality control for critical dimensions.Monthly production capacity exceeds 2 million sets.

Fast Delivery & Global Support:Standard RA series shipped within 72 hours;global logistics available.

Quality Assurance:ISO 9001 & GB/T 307.1 certified;SGS inspection reports provided.
