How Precision RA Crossed Roller Bearings Are Applied in the Arms of Surgical Robots?

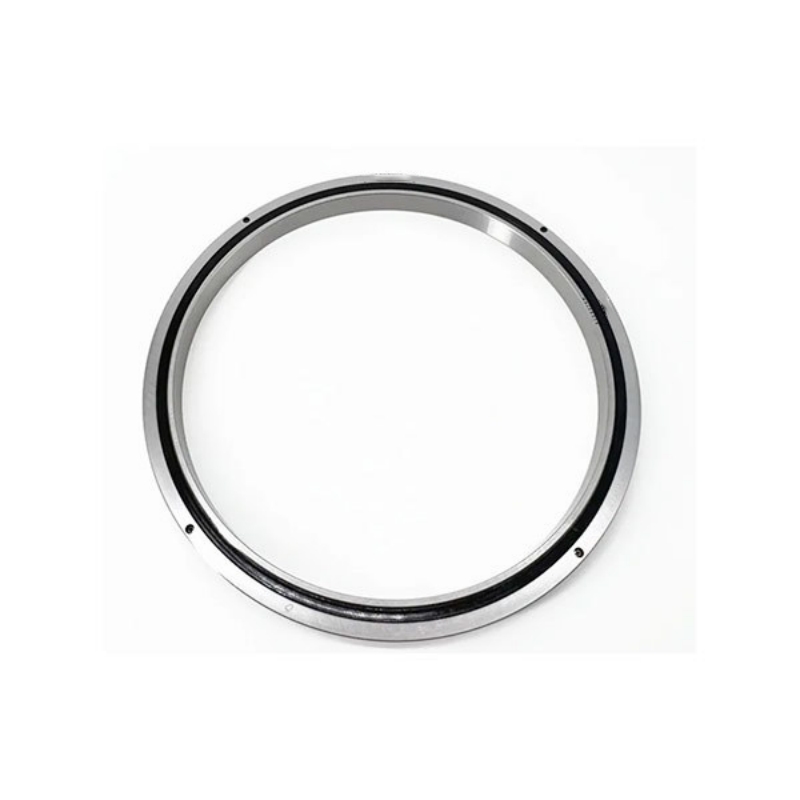

What are Precision RA Crossed Roller Bearings?

RA crossed roller bearings are specifically designed for precision rotary systems,featuring a 90° orthogonal crossed roller layout that enables simultaneous bearing of radial loads,axial loads,and overturning moment loads.They are suitable for high-precision,high-rigidity,and space-constrained applications.Their integrated inner ring structure enhances system rigidity and simplifies installation,while the optional preload configuration eliminates internal clearances,making them ideal for equipment requiring stable and precise rotation,such as industrial robots,precision machine tools,optical instruments,and semiconductor manufacturing equipment.

What are Arms of Surgical Robots?

Arms of surgical robots are the core multi-joint motion units of minimally invasive surgical systems,serving as the "precision extension" for surgeons to perform delicate,high-accuracy procedures.These slender,lightweight arms integrate motors,reducers,and precision bearings,consisting of multiple articulated joints (shoulder,elbow,wrist) to enable multi-angle,multi-axis flexible movement.They demand ultra-high precision,zero backlash,vibration-free operation,compact size,and strict sterile compatibility.Surgical robot arms must support precise positioning of tiny surgical instruments,resist micro-deformation under load,and operate smoothly without jitter during long-duration surgeries.Even minor positioning errors or vibration can risk surgical safety,making high-performance core bearings critical for reliable,accurate surgical operations.

The Importance of RA Crossed Roller Bearings in Arms of Surgical Robots

RA crossed roller bearings act as the core rotary support for surgical robot arm joints,directly determining surgical precision,operational stability,and clinical safety.

Ultra-High Rigidity for Deformation Resistance:The crossed-roller layout maximizes contact area,effectively resisting micro-deformation under the weight of surgical instruments and dynamic motion loads.This rigidity ensures the arm remains stable during precise surgical maneuvers,preventing deflection that could compromise surgical accuracy.

Composite Load Capacity for Multi-Joint Motion:Simultaneously bears radial loads (instrument/arm weight),axial loads,and overturning moment loads (dynamic motion forces),replacing multiple bearing combinations and simplifying the arm’s slim structure.This integrated design reduces assembly errors and enhances stability during complex multi-axis movements.

Precision Rotation for Micron-Level Positioning:P4/P2 grade precision and ≤0.002mm runout tolerance deliver exceptional rotational accuracy.This enables the surgical arm to achieve micron-level positioning repeatability,ensuring precise control of surgical instruments and eliminating costly surgical errors.

Ultra-Compact & Lightweight for Slim Arm Design:The ultra-thin section (8mm–13mm) and lightweight design perfectly fit the slender,space-constrained joints of surgical robot arms.This compactness reduces overall arm weight,improves motion agility,and meets the ergonomic and space-saving requirements of operating rooms.

Sterile & Cleanroom Compatibility for Medical Environments:Constructed from SUS440C stainless steel with smooth,non-particle-generating surfaces and optional sealed configurations,the bearings comply with medical sterile standards.They minimize contamination risks and support easy disinfection,ensuring safe use in clinical sterile environments.

Low Friction & Vibration-Free Operation:Optimized roller geometry minimizes friction and micro-vibration,ensuring smooth,jitter-free rotation.This stability is critical for reducing fatigue during long surgeries and enabling surgeons to perform ultra-delicate procedures with high precision.

Long Life & Low Maintenance for Clinical Use:Surface-hardened materials (HRC 60-62) enhance fatigue resistance,supporting reliable long-term operation with minimal maintenance.This reduces equipment downtime in clinical settings,ensuring continuous availability for surgical procedures.

Manufacturer of Precision RA Crossed Roller Bearings

Newbeetrans is a professional manufacturer of RA crossed roller bearings,providing tailored solutions for surgical robot arms and medical precision equipment.

Medical-Focused Customization:Offers designs for sterile compatibility,zero backlash,low particle generation,and vibration-free operation.Supports medical-grade lubrication,stainless steel construction,and non-standard dimensions; samples ready in 10–15 days.

Precision Manufacturing:Adopts super-fine grinding for P4/P2 grade precision,with strict quality control for critical dimensions.Monthly production capacity exceeds 2 million sets.

Fast Delivery & Global Support Standard:RA series shipped within 72 hours; global logistics available.

Quality Assurance:ISO 9001 & GB/T 307.1 certified; SGS inspection reports provided.
