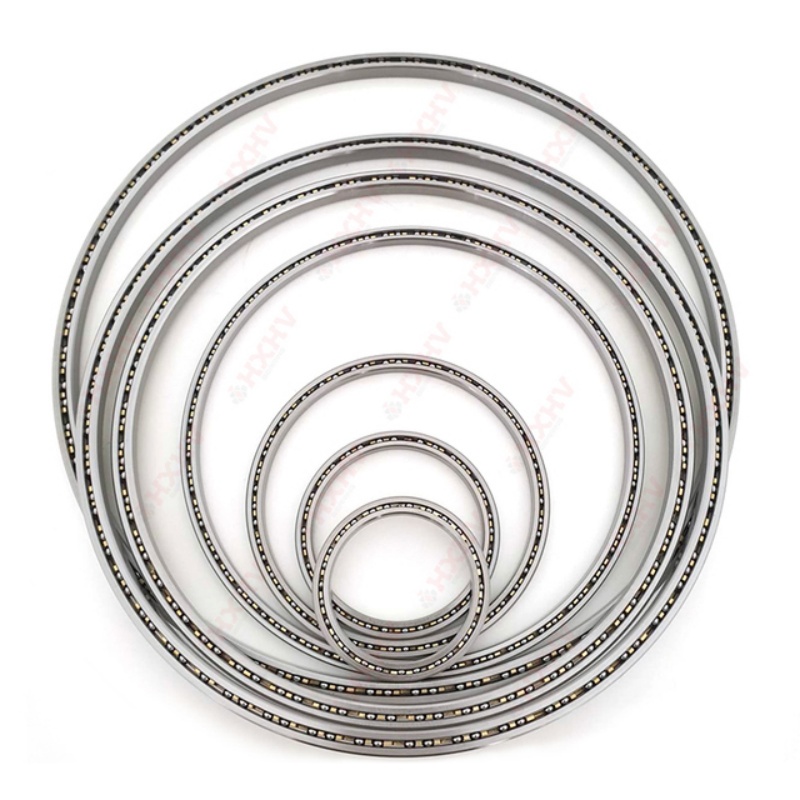

What Advantages of Thin-Section Bearings in the Semiconductor Industry?

What  Are Thin-Section Bearings for Semiconductors?

Thin-Section Bearings are a class of high-precision, high-performance bearings specifically engineered for semiconductor manufacturing equipment. Their core value lies in integrating six key advantages—extreme space savings, ultra-high precision, ultra-clean compatibility, low inertia & high dynamics, high temperature & corrosion resistance, and lightweight long life—to perfectly meet the stringent demands for compactness, cleanliness, and accuracy in critical processes, from lithography to wafer handling.

 How Do Thin-Section Bearings Achieve High Performance?

Their exceptional performance stems from precision design and unique physical principles:

1.  Extreme Space Optimization: Featuring a uniform thin-wall design, the inner and outer rings are exceptionally thin, with a cross-section much smaller than traditional bearings. This allows installation in spaces as narrow as 20 mm (e.g., in robot joints) and supports stacked layouts for multi-degree-of-freedom motion, potentially reducing overall equipment volume by 50%–70%.

2.  Nano-Level Ultra-High Precision: Through precision grinding and zero-clearance preloading, radial runout can be controlled to within 0.3 μm, and rotational accuracy reaches 0.001 mm. The use of low-thermal-expansion materials (like stainless steel and ceramics) minimizes precision drift caused by temperature fluctuations, providing essential support for achieving ±1 nm positioning in equipment like lithography machines.

3.  Ultra-Clean Environment Compatibility: Specially textured and precision-polished surfaces reduce particle generation and entrapment by up to 70%. It supports various lubrication methods including PTFE self-lubrication, vacuum-grade grease, and dry-film lubrication, fundamentally eliminating oil mist pollution. Multi-layer labyrinth seals further block external particles, ensuring extremely low outgassing in Class 1 cleanrooms and vacuum chambers, thus protecting wafers from contamination.

4.  Low Inertia & High Dynamic Response: Being 50%–66% lighter than conventional bearings of the same size significantly reduces rotational inertia. This enables equipment like wafer handling robots to achieve rapid start/stops and high accelerations while maintaining low vibration (e.g., Z4 grade precision bearings with vibration ≤ 4.5 dB at 1800 rpm) and low energy consumption.

5.  High Temperature & Corrosion Resistance: Ceramic materials like Silicon Nitride (Si₃N₄) and Silicon Carbide (SiC) offer hardness up to 2800 HV and maintain dimensional stability without softening or deforming at temperatures exceeding 300°C. These materials, along with specialized stainless steels, resist attack from etchants, cleaning agents, and other chemicals, making them suitable for harsh environments like wet cleaning and etching processes.

6.  Long Life & High Reliability: The superior design and materials result in a Mean Time Between Failures (MTBF) of 30,000–50,000 hours, significantly improving Overall Equipment Effectiveness (OEE) by up to 8% and reducing downtime caused by bearing-related maintenance.

 Core Components of Thin-Section Bearings

A high-performance semiconductor thin-section bearing consists of these key parts:

Inner and Outer Rings: Ultra-thin, uniform annular rings that provide precise raceways for rotation.

Rolling Elements (Balls or Rollers): Typically made from ceramic or stainless steel, enabling low-friction rolling motion.

Cage/Retainer: Guides and evenly spaces the rolling elements, available in polymers or stainless steel to suit different environments.

Seals (Optional): Multi-layer labyrinth or contact seals prevent contaminant ingress.

Lubricant: Specially formulated greases or solid lubricant films designed for vacuum or cleanroom compatibility.

Technical Specifications

1.  Bore Diameter Range: Typically from a few millimeters to several hundred millimeters. Section thickness commonly ranges from under 6.35 mm to 12.7 mm.

2.  Precision Grade: Available in ABEC classes like P4, P2, and higher for nano-level positioning accuracy, with radial runout controllable to within 0.3 μm.

3.  Ring Materials: Options include specialized stainless steels, high-carbon chromium bearing steel, Silicon Nitride (Si₃N₄) ceramic, and Silicon Carbide (SiC) ceramic.

4.  Applicable Environments: Suitable for ambient air, Class 1+ cleanrooms, high vacuum, and corrosive chemical atmospheres.

Important Constraint: Unless specially sealed and lubricated, they are not designed for direct immersion in strong acids, alkalis, or other corrosive liquids.

Key Features and Advantages

 Maintenance-Friendly Design: While not entirely maintenance-free, their high reliability and long life minimize unscheduled maintenance within semiconductor equipment service cycles. Some applications can be lifetime-lubricated.

Integrated "Intelligence": The "intelligence" lies in the integration of materials science and precision engineering. Through material selection and preload design, they passively adapt to and compensate for thermal deformation and load changes.

High Performance: Advanced materials and manufacturing processes enable them to deliver high precision and dynamic performance within a minimal space envelope.

Interference Suppression: Optimized internal geometry and the use of non-magnetic materials like ceramic balls effectively reduce operational vibration and sensitivity to external electromagnetic interference.

Wide Operating Range: They maintain stable performance across a broad spectrum of conditions, from low to high speeds, ambient to high temperatures, and atmospheric to vacuum environments.

User-Friendly Design: Their "friendliness" is demonstrated by the significant design flexibility they offer equipment designers, simplifying shaft systems and enabling more compact machines.

Data Security: Not applicable.

Flexible Connectivity: Not applicable.

 Applications of Thin-Section Bearings in Semiconductors

 Lithography Machines: For nano-level precision positioning and rotation of wafer stages and reticle stages.

Wafer Handling Robots: Enabling compact joints for high-speed, clean, and high-precision wafer transfer.

Thin-Film Deposition Equipment (CVD/PVD): Providing low-particle, corrosion-resistant rotary support in vacuum and high-temperature environments.

Inspection and Metrology Equipment: For precision rotation and positioning in probe stations and test stages.

Polishing, Lapping, and Dicing Equipment: For high-speed, high-precision, low-vibration spindles and rotary tables.

 Price of Thin-Section Bearings for Semiconductors

The price of thin-section bearings for semiconductor applications depends on key factors including precision grade (nano-level vs. standard), material (stainless steel vs. advanced ceramics like Si₃N₄/SiC), size (bore diameter, outer diameter, wall thickness), and custom requirements (e.g., vacuum compatibility, special lubrication). While the initial procurement cost may be higher, their long-term value is substantial due to reduced equipment downtime and improved process stability. For a detailed quotation tailored to your specific application, please contact LUOYANG NEW BEE TRANSMISSION TECHNOLOGY CO., LTD. with your application parameters.

 Custom Thin-Section Bearing OEM Service

LUOYANG NEW BEE TRANSMISSION TECHNOLOGY CO., LTD. is a professional manufacturer of high-precision thin-section bearings for the semiconductor industry. We offer comprehensive OEM and customization services:

Custom Dimensions (bore diameter, outer diameter, wall thickness) to fit specific equipment designs.

Material Customization (stainless steel, Si₃N₄ ceramic, SiC ceramic) for extreme temperature or corrosion-resistant requirements.

Precision Calibration tailored to specific process needs (nano-level positioning accuracy, low vibration).

Private Labeling and Custom Packaging for system integrators and equipment manufacturers.

Specialized Modifications such as enhanced sealing, vacuum-specific lubrication, and low-outgassing treatments for unique application scenarios.

If you are seeking a reliable partner for high-performance bearing solutions in semiconductor equipment, please contact LUOYANG NEW BEE TRANSMISSION TECHNOLOGY CO., LTD. for professional technical support and customization services.

Thin-Section Bearing Manufacturer for Semiconductors

As a leading manufacturer of thin-section bearings for the semiconductor industry, LUOYANG NEW BEE TRANSMISSION TECHNOLOGY CO., LTD. is committed to delivering products that meet the highest standards of precision, cleanliness, and reliability. Our bearings undergo rigorous testing—including precision verification, cleanroom compatibility testing, temperature resistance testing, and long-term durability trials—to ensure they perform seamlessly in the most demanding semiconductor manufacturing environments worldwide. We combine advanced material science, precision engineering, and industry expertise to provide customized solutions that drive efficiency and innovation for our clients.
