How Precision Crossed Roller Bearings Are Applied in the Aerospace Field?

The aerospace industry represents one of the most demanding fields for mechanical components, requiring extreme precision, high rigidity, lightweight design, and reliable performance under harsh conditions. Precision crossed roller bearings, as high-end key transmission parts, have become indispensable in aerospace equipment with their unique structural advantages. This article will elaborate on their characteristics, importance, and typical applications in the aerospace field.

What are Precision Crossed Roller Bearings?

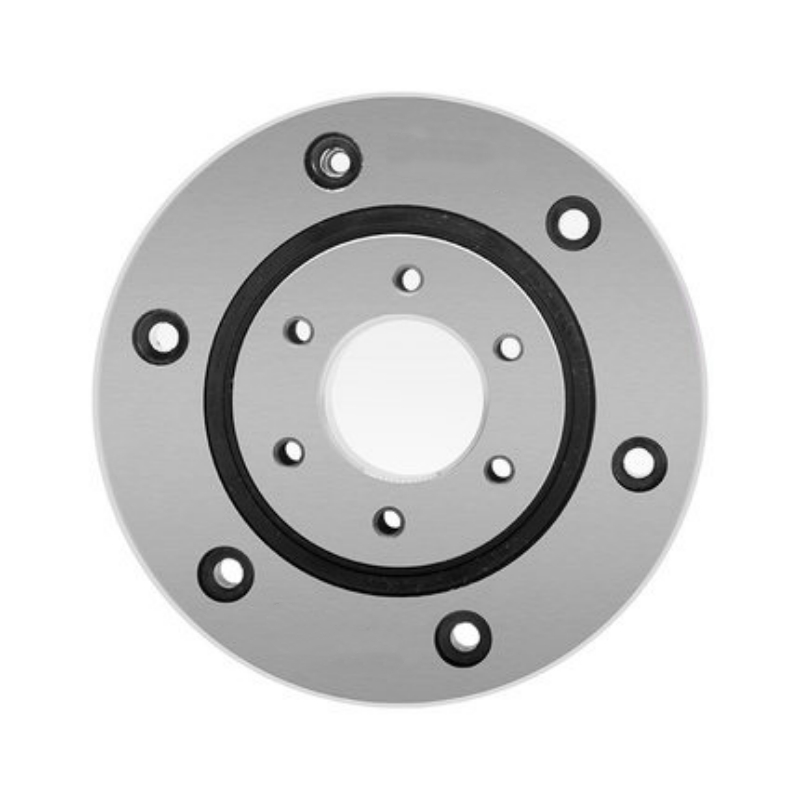

Precision crossed roller bearings are ultra-precision rolling bearings with cylindrical rollers arranged vertically and crosswise at 90° in V-shaped raceways, separated by precision cages or isolation blocks. They are manufactured with precision grinding and ultra-finishing processes, with precision grades reaching P5, P4, and even P2 levels. A single set of such bearings can simultaneously withstand radial loads, axial loads, and overturning moments, replacing the combination of multiple standard bearings. They feature a compact and lightweight structure, high rigidity, low friction, and stable rotation, and are widely used in high-end equipment requiring strict space control and motion accuracy. NewBee Transmission provides a full range of crossed roller bearings (RB, RU, CRBH series) with inner diameters from 10 mm to 1000 mm, fully meeting the customized needs of aerospace equipment.

What are Aerospace Fields?

Aerospace fields cover a series of high-end equipment and systems related to aviation and spaceflight, mainly including:

Aviation fields:Civil aviation aircraft, military aircraft, aero-engines, aircraft landing gear, flight control systems, airborne radar, and optoelectronic navigation equipment.

Aerospace fields:Satellites, spacecraft, rocket attitude adjustment mechanisms, space telescopes, satellite communication antennas, and space simulation test equipment. These fields have extremely strict requirements for components:lightweight to reduce fuel consumption and launch load, high precision to ensure accurate attitude control, high reliability to adapt to extreme temperatures, vibration, and vacuum environments, and long service life to meet long-term stable operation needs.

The Importance of Precision Crossed Roller Bearings in Aerospace Field

Precision crossed roller bearings are highly compatible with the core needs of the aerospace field, and their importance is reflected in the following aspects:

High rigidity and strong load capacity:Effectively resist overturning moments and complex composite loads, ensuring stable operation of rotating parts such as radar and landing gear.

Compact and lightweight:Reduce space occupation and equipment weight, which is critical for improving fuel efficiency and reducing satellite launch costs.

Ultra-high precision:Micron-level rotation accuracy guarantees the precise positioning and attitude control of aerospace equipment.

Stable performance:Low friction, low vibration, and low noise, adapting to long-term continuous operation in extreme environments.

Simplified design:Replace multiple bearing combinations, reduce assembly difficulty, and improve the reliability of the whole machine.

Applications of Precision Crossed Roller Bearings in Aerospace Field

Combined with the actual application scenarios, precision crossed roller bearings are widely used in key aerospace equipment:

Airborne radar antenna base:Realize accurate rotation and positioning of radar antennas, ensuring stable detection and tracking effects.

Satellite attitude adjustment mechanism:Adapt to the space vacuum and extreme temperature environment, providing precise and reliable rotation support for solar panels and communication equipment.

Aircraft landing gear rotating parts:Withstand heavy loads and impact forces during take-off and landing, ensuring the stability and safety of the landing gear system.

Aero-engine auxiliary transmission system:Adapt to high-speed rotation and high-temperature environments, ensuring stable power output.

Airborne optoelectronic and navigation equipment:Provide high-precision rotation support to improve the accuracy of imaging and navigation.

Space simulation test platform:Offer high rigidity and stable rotation, simulating the space environment for equipment testing.

Manufacturer of Precision Crossed Roller Bearings

NewBee Transmission is a leading manufacturer of precision crossed roller bearings focusing on aerospace and other high-end equipment supporting solutions:

Complete product range:Provide RB, RU, CRBH, and crossed tapered roller bearings with a size range of 10–1000 mm and precision grades P5/P4/P2, supporting customized design in size, material, and lubrication.

Advanced manufacturing capacity:Equipped with high-precision CNC grinding and automatic assembly lines, adopting precision cold ring rolling and ultra-finishing processes to ensure micron-level accuracy consistency.

Strict quality control:Implement full-process inspection in accordance with ISO 9001 and GB/T 307.1 standards, with 100% full inspection of precision, noise, and service life.

Strong customization capability:A professional engineer team provides targeted design for aerospace applications, completing sample development within 15 days and signing a confidentiality agreement to protect customer intellectual property rights.

Efficient global delivery:With intelligent warehousing and overseas warehouses in Europe and North America, achieving 7–10 days of fast delivery to support aerospace project cycles.
