How Precision RA Crossed Roller Bearings Are Applied in the Wafer Handling Robots?

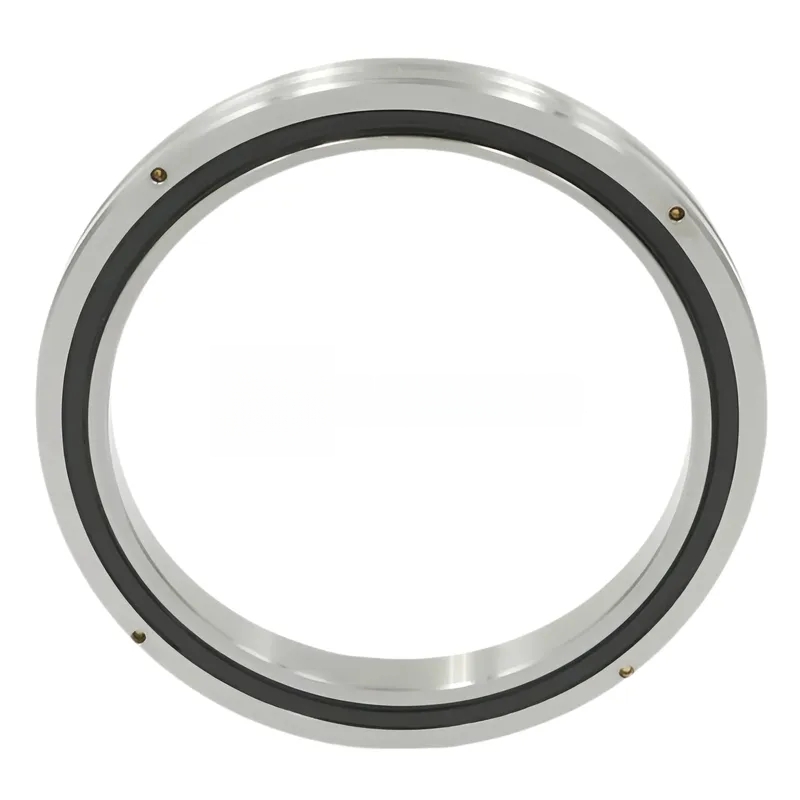

What are Precision RA Crossed Roller Bearings?

RA crossed roller bearings are specifically designed for precision rotary systems,featuring a 90° orthogonal crossed roller layout that enables simultaneous bearing of radial loads,axial loads,and overturning moment loads.They are suitable for high-precision,high-rigidity,and space-constrained applications.Their integrated inner ring structure enhances system rigidity and simplifies installation,while the optional preload configuration eliminates internal clearances,making them ideal for equipment requiring stable and precise rotation,such as industrial robots,precision machine tools,optical instruments,and semiconductor manufacturing equipment.

What are Wafer Handling Robots?

Wafer handling robots are specialized high-precision automation systems designed exclusively for transporting,aligning,and positioning delicate semiconductor wafers in ultra-clean environments.Operating primarily in ISO Class 1–3 cleanrooms and high-vacuum chambers (as low as 10-⁵ Pa),they are indispensable for moving wafers between lithography,etching,deposition,and inspection stations without introducing contamination or causing micro-damage to nanoscale circuit features.These robots consist of multi-axis articulated arms (with critical shoulder and elbow joints),end-effectors,and integrated drive systems.They demand sub-micron positioning repeatability (±0.02–0.05mm),zero vibration,ultra-low particle generation,and vacuum compatibility.Even minor vibration or particulate contamination can result in catastrophic yield losses,making the selection of core bearings critical for ensuring wafer safety and process stability.

The Importance of RA Crossed Roller Bearings in Wafer Handling Robots

RA crossed roller bearings serve as the core rotary support for wafer handling robot joints,directly determining positioning accuracy,operational stability,and cleanroom compatibility.

Ultra-Compact & Lightweight for Slim Joints:The ultra-thin section (8mm–13mm) and lightweight design perfectly fit the slim,space-constrained shoulder and elbow joints of wafer robots.This compactness reduces overall robot weight,improves motion agility,and optimizes cleanroom space utilization without compromising structural integrity.

High Rigidity for Vibration-Free Motion:The crossed-roller layout maximizes contact area,effectively resisting deformation and minimizing micro-vibration under dynamic wafer loads.This rigidity ensures jitter-free rotation during high-speed transfer,preventing wafer displacement or surface damage-critical for maintaining nanometer-scale process precision.

Precision Rotation for Sub-Micron Positioning:P4/P2 grade precision and ≤0.002mm runout tolerance deliver exceptional rotational accuracy.This enables the robot to achieve ±0.02mm positioning repeatability,ensuring precise wafer alignment with process tools and eliminating costly indexing errors.

Composite Load Capacity for Complex Forces:Simultaneously bears radial loads (wafer/arm weight),axial loads,and overturning moment loads (dynamic motion forces),replacing multiple bearing combinations and simplifying joint structure.This integrated design reduces assembly errors and enhances overall system stability in multi-axis operation.

Cleanroom & Vacuum Compatibility:Constructed from SUS440C stainless steel with optional special vacuum grease and open/double-seal configurations,the bearings minimize particle generation and outgassing.This compliance with ISO cleanroom and high-vacuum standards prevents contamination of delicate wafers in semiconductor manufacturing environments.

Long Life for 24/7 Continuous Operation:Surface-hardened materials (HRC 60-62) enhance fatigue resistance,supporting uninterrupted round-the-clock operation in high-throughput semiconductor fabs.This long service life reduces downtime and maintenance costs,critical for maximizing production efficiency.

Manufacturer of Precision RA Crossed Roller Bearings

Newbeetrans is a professional manufacturer of RA crossed roller bearings,providing tailored solutions for wafer handling robots and semiconductor precision equipment.

Semiconductor-Focused Customization:Offers designs for cleanroom/vacuum compatibility,zero backlash,and low particle generation.Supports special vacuum lubrication,non-standard dimensions,and stainless steel constructions;samples ready in 10–15 days.

Precision Manufacturing:Adopts super-fine grinding for P4/P2 grade precision,with strict quality control for critical dimensions.Monthly production capacity exceeds 2 million sets.

Fast Delivery & Global Support Standard:RA series shipped within 72 hours;global logistics available.

Quality Assurance:ISO 9001 & GB/T 307.1 certified;SGS inspection reports provided.
