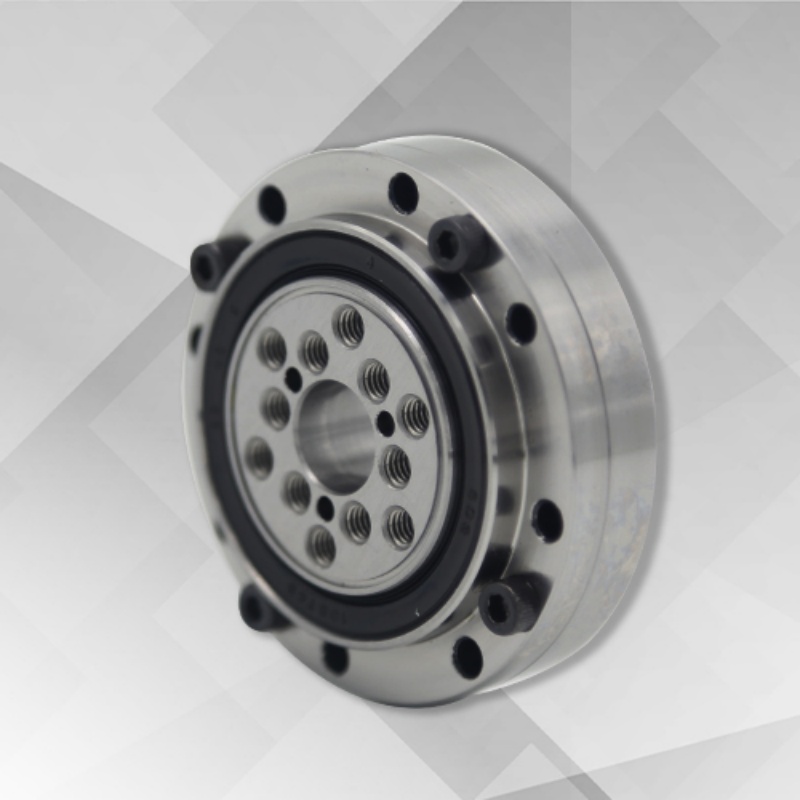

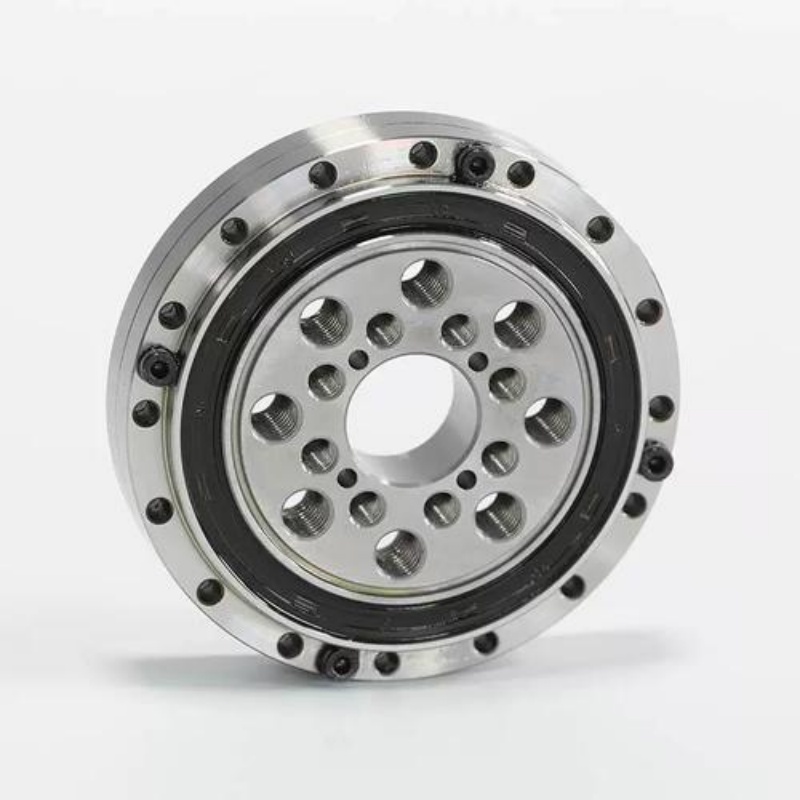

CSD harmonic reducer bearing is high stiffness crossed roller ring that is designed to support output loads of CSD series harmonic drive. This output bearing can withstand high axial and radial forces as well as high tilting moments.
Material:Bearing Rings & Rollers:Highstrength bearing steel (GCr15), precision grinding, high hardness and wear resistance;Structure:Integral hardened raceway, optimized contact geometry for high rigidity and long fatigue life

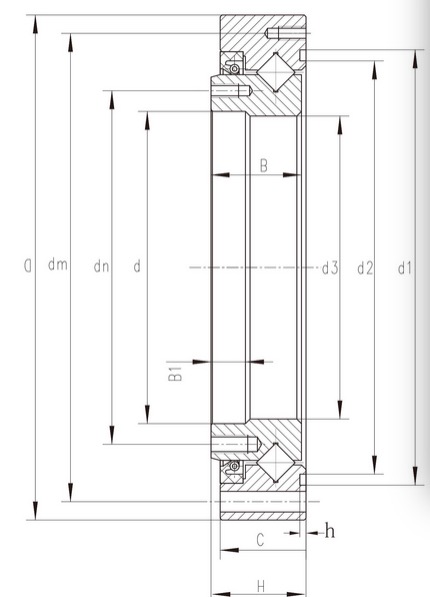

Size：Inner ring d1:12 – 48mm;Outer ring D:55 – 157mm;Width B:13.9 – 29.4mm;Center diameter dn:25 – 88mm
Accuracy Grade:High precision for harmonic drive applications;Low rotational backlash, high positioning accuracy;Standard matched with CSD series harmonic reducers
Delivery:Standard models:in stock / 7–15 days;Customized:please confirm with manufacturer.
| Model | Center Dia. dn | Mounting Hole (Seal Front) | Mounting Hole (Seal Back) | Dynamic Load Rating Cr (KN) | Static Load Rating Cor (KN) | Weight (KG) |
| NB.CSD-14 | 25 | 10-M3 (thread depth 7) | 6-M3 (thread depth 7) | 4.7 | 6.7 | 0.24 |
| NB.CSD-17 | 27 | 8-M5 (thread depth 8) | 8-M4 (thread depth 8) | 5.3 | 7.5 | 0.3 |
| NB.CSD-20 | 34 | 8-M6 (thread depth 9) | 8-M4 (thread depth 8) | 5.8 | 9 | 0.42 |
| NB.CSD-25 | 42 | 8-M8 (thread depth 12) | 8-M5 (thread depth 9) | 9.6 | 15.1 | 0.8 |
| NB.CSD-32 | 57 | 10-M8 (thread depth 12) | 6-M6 (thread depth 11) | 15 | 25 | 1.4 |
| NB.CSD-40 | 72 | 10-M10 (thread depth 15) | 6-M8 (thread depth 11) | 21.3 | 36.5 | 2.1 |
| NB.CSD-50 | 88 | 10-M12 (thread depth 18) | 6-M10 (thread depth 18) | 34.8 | 60.2 | 3.8 |
Than CSG Type Integrated inner/outer ring structure provides better rigidity and stability for reducer output side.
Load Capacity Single bearing supports radial,axial and tilting moment loads,simplifies assembly structure.
Low backlash,high rotation accuracy,ideal for robot joints and precision transmission.
Matched with CSD series harmonic reducers,direct replacement,easy installation.
Support Complete drawings,mounting dimensions and load parameters provided; technical support available.
Applications:
Industrial Robots
Robot arms, joints, and wrists
Provide high rigidity and positioning accuracy
Handle multi-directional loads in compact spaces
CNC Machine Tools
Rotary tables and indexing heads
Spindle support systems
Ensure high rotational accuracy and stability
Precision Turntables & Indexing Systems
Used in automation equipment
Offer smooth rotation and precise positioning
Semiconductor & Electronics Equipment
Wafer handling systems
Inspection and lithography machines
Require ultra-low vibration and high cleanliness
Medical Equipment
CT scanners and imaging devices
Surgical robots
Provide quiet operation and high precision
Measuring & Inspection Instruments
Coordinate Measuring Machines (CMM)
Optical measuring devices
Ensure accurate measurement and repeatability
Aerospace & Defense
Radar systems
Satellite communication devices
Offer high reliability under complex loads
Optical & Telescope Mounts
Precision rotation platforms
Require smooth motion and minimal runout
