Customer:High-end automation equipment enterprise in the UK
A leading UK manufacturer specializing in intelligent production line solutions is currently carrying out a comprehensive upgrade of its core automated assembly and material handling lines.The upgrade aims to enhance the line's operating speed,positioning accuracy and long-term stability,with strict requirements for the key supporting bearings of the rotary drive and linear motion modules.

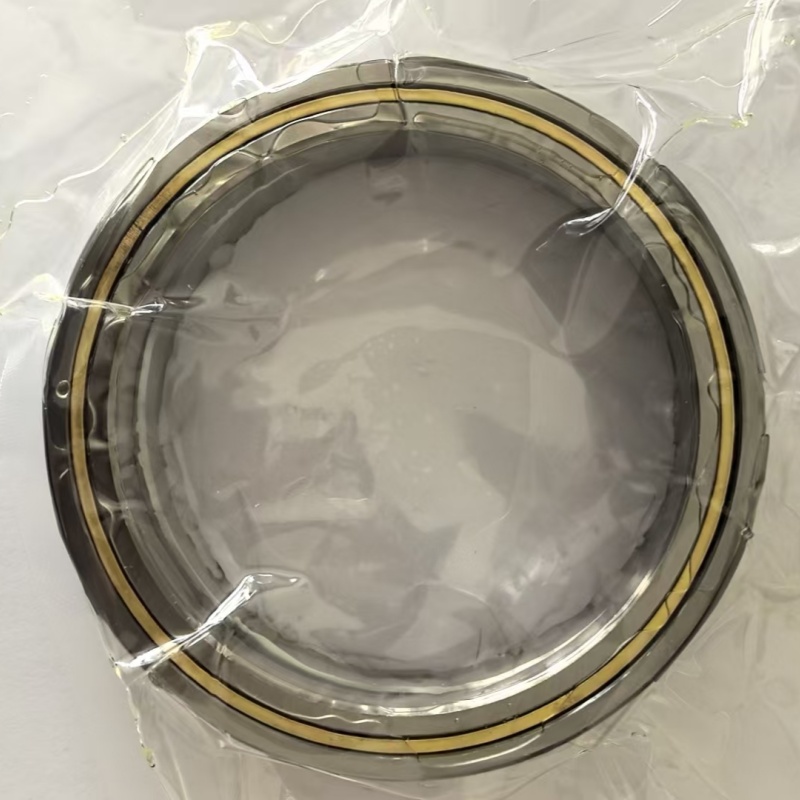

Developed and produced by NewBeeTrans,the KD040AR6 is a high-precision thin section angular contact ball bearing optimized for automated industrial equipment,adopting a precision matched configuration (back-to-back/face-to-face customized pairing).Based on the classic KD series thin section bearing design,it features an ultra-compact structure with a 4-inch bore diameter and ultra-thin cross-section,combined with a 30° contact angle design.It is specially engineered to bear simultaneous radial,axial and moment loads,and is widely used in rotary tables,linear modules,robotic joints and drive systems of automated production lines,perfectly adapting to the high-precision,high-speed and space-constrained application scenarios of industrial automation equipment.
Ultra-thin section compact design:Optimized thin-wall structure,perfectly fitting the limited installation space of the customer's automation line drive module,avoiding structural modification of the original equipment and reducing upgrade costs.
Precision matched configuration:Customizable back-to-back/face-to-face pairing scheme,effectively bearing bidirectional axial and radial composite loads,greatly improving the system's rigidity and anti-overturning capacity,and ensuring stable operation under high-speed start-stop conditions.
High-precision stable rotation:Strictly manufactured in accordance with high-precision tolerance standards,with extremely low runout error,ensuring micron-level positioning accuracy of the automation line's rotary and linear motion mechanisms,and significantly improving the consistency of product assembly.
High load capacity & long service life:Adopting high-quality chrome steel for rings and rolling elements,with brass cage for stable ball guidance.The bearing has excellent dynamic and static load capacity,resistant to wear and fatigue under long-term continuous operation,and effectively extending the maintenance cycle of the automation line.
Strong environmental adaptability:Adapt to the industrial workshop environment of the UK customer,with good performance under normal temperature and dustproof working conditions,and compatible with standard industrial lubrication solutions,easy for on-site maintenance and replacement.
Aiming at the UK customer's automation line upgrade requirements,NewBeeTrans's technical team conducted in-depth analysis of the equipment's load parameters,operating speed and installation dimensions,and provided a customized matched pairing scheme for the KD040AR6 bearings,including precise preload adjustment and unified dimensional tolerance control,to ensure the consistency of each set of matched bearings.
The successful supply of KD040AR6 bearings has helped the UK customer achieve the expected goals of the automation line upgrade:the operating speed of the line is increased by over 20%,the positioning accuracy is improved to ±0.02mm,the equipment failure rate is reduced by more than 30%,and the overall production efficiency is significantly enhanced.Meanwhile,NewBeeTrans's efficient global logistics and on-site technical support have solved the customer's concerns about supply cycle and after-sales service,establishing a solid cooperative foundation for subsequent in-depth cooperation.
Relying on its ultra-thin structure,high precision and high load capacity of matched pairing,the KD040AR6 is widely applicable to various industrial automation equipment and production line upgrades:
Automated assembly lines (rotary drive modules,linear motion slides)
Intelligent material handling systems (AGV drive mechanisms,conveyor belt tensioning devices)
Industrial robot joints and end effector support structures
Precision rotary tables and indexing mechanisms of automated testing equipment
High-speed sorting and packaging automation lines
As a professional manufacturer of high-precision thin section bearings,NewBeeTrans has a complete product system of KD series thin section angular contact bearings,supporting customized matching,preload adjustment and non-standard customization.Adhering to strict ISO 9001 quality control,the company has advanced production and testing equipment,and provides efficient global delivery and professional technical support.It is a reliable bearing solution provider for global automation equipment manufacturers and production line upgrade projects.
Parameter | Specification |
Bearing Type | KD040AR6 Thin Section Angular Contact Matched Bearing |
Bore Diameter | 4" (101.6mm) |
Outside Diameter | 5" (127.0mm) |
Cross-Section Width | 0.5" (12.7mm) |
Contact Angle | 30° |
Pairing Mode | Back-to-back/face-to-face (customizable) |
Material | Ring & Rolling Elements:High-quality chrome steel; Cage:Brass |
Load Capacity | Excellent radial/axial dynamic and static load capacity |
Application | UK customer's automation assembly & material handling line upgrade |
Delivery | Global fast delivery (support UK on-site delivery) |
