How Thin Section Four Point Contact Ball Bearings Are Applied in CT/MRI scanner auxiliary rotary assemblies?

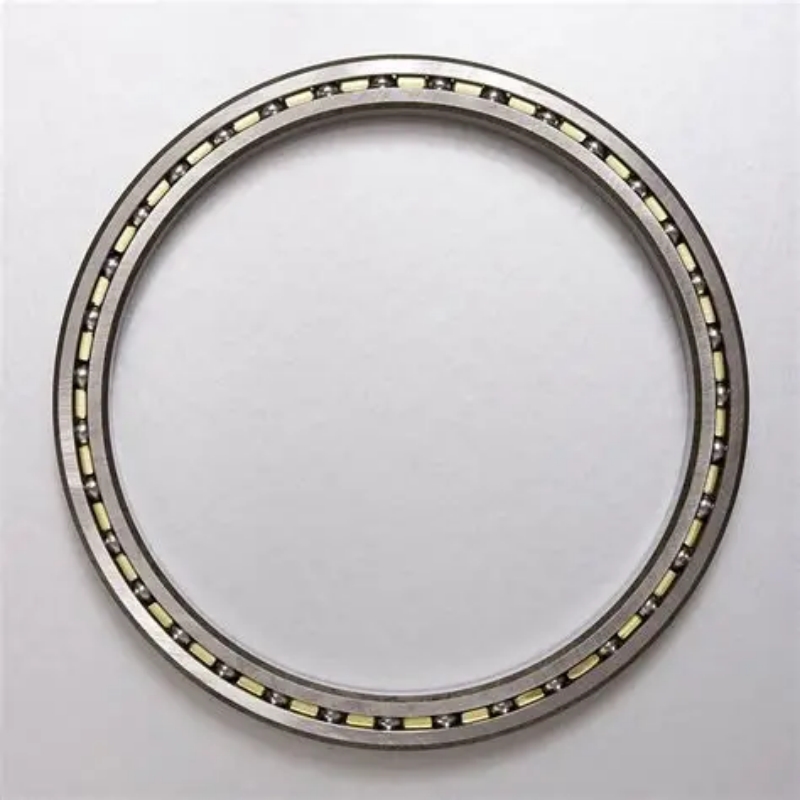

What are Thin Section Four Point Contact Ball Bearings?

Thin section four-point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are CT/MRI scanner auxiliary rotary assemblies?

CT and MRI scanner auxiliary rotary assemblies are small-bore precision rotating subassemblies attached to the main gantry of medical imaging equipment,excluding the large main scanning slewing bearing.Typical auxiliary rotating parts include patient bed fine-tilt rotary units,laser positioning turrets,multi-angle calibration rotary jigs,local detector swing mechanisms,and contrast agent injection rotating adjustment modules.These rotary components work continuously during medical scanning to complete tiny angle adjustment,patient position fine correction and imaging calibration.They are installed in narrow internal cavities of the scanner gantry,with strict limits on installation thickness and overall weight.The bearings inside need to carry the self-weight of optical detectors,laser modules and small positioning brackets,as well as alternating radial,axial and tilting moment loads generated by frequent low-speed reciprocating rotation.Medical imaging equipment imposes extremely strict operating standards:ultra-smooth low-noise rotation,micro-level angular repeat accuracy,low-outgassing non-contaminating lubrication,dust-proof sealing,and non-magnetic stainless steel options for MRI strong magnetic environments.Any bearing jitter,clearance or oil leakage will cause image distortion,positioning deviation or internal equipment pollution,seriously affecting diagnostic image quality and equipment service life.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore diameter,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.

Semiconductor Manufacturing Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers,and photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

The Importance of Thin Section Four Point Contact Ball Bearings in CT/MRI scanner auxiliary rotary assemblies

Ultra-Thin Constant Cross-Section Fits Narrow Gantry Installation Space:CT/MRI gantries reserve limited narrow gaps for auxiliary rotating parts.Thin section four point contact ball bearings retain fixed ultra-thin cross-section regardless of inner diameter,far thinner and lighter than conventional matched bearing groups.They perfectly fit the compact layout requirements of patient bed adjusting turrets and laser calibration rotary frames,without occupying extra space for large drive and detector assemblies inside the scanner.

Single Bearing Integrates All Medical Composite Loads:One thin four-point contact bearing replaces two matched angular contact bearings.It independently bears radial weight of optical and positioning modules,bidirectional axial force during fine rotation,and alternating tilting moment during multi-angle calibration.It simplifies the mechanical structure of auxiliary rotary assemblies,reduces the number of matched parts,lowers the overall weight of rotating components,and cuts equipment manufacturing and assembly costs for medical device manufacturers.

Preloaded Zero-Clearance Rigidity Eliminates Imaging Jitter:Internal preload fully eliminates bearing internal clearance and delivers high anti-tilting rigidity.When CT/MRI equipment performs repeated fine positioning and slow calibration rotation,the bearing suppresses micro swing and rotation jitter.It maintains micron-level angular repeat precision,prevents blurred medical images and patient positioning offset,and guarantees stable,high-definition scanning results for clinical diagnosis.

Low Torque & Low Noise Meets Medical Silent Standards:Super-finished raceways and tiny steel balls generate extremely stable,low fluctuation friction torque.The bearing runs smoothly with ultra-low operating noise,complying with hospital silent diagnosis environment requirements and avoiding patient discomfort caused by mechanical vibration noise during long-time scanning.

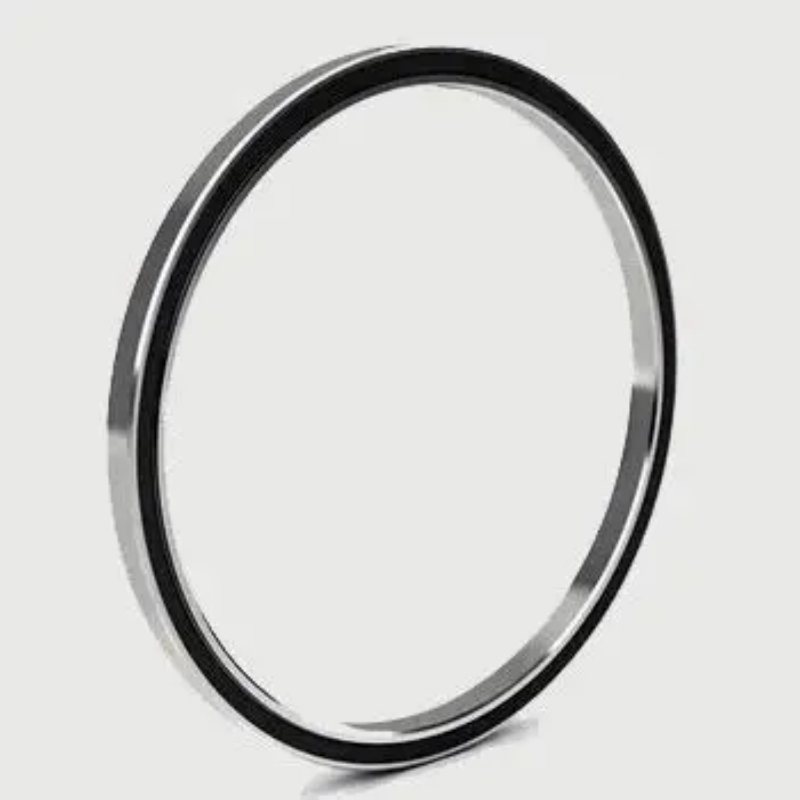

Medical-Grade Custom Materials Adapt CT/MRI Special Environments:9Cr18 non-magnetic stainless steel bearing options eliminate magnetic interference inside MRI strong magnetic fields; low-outgassing medical-grade grease prevents fogging and contamination of precision optical detectors.J-type full rubber sealing structure blocks dust and tiny lubricant volatiles,protecting expensive scanning components from pollution and extending the full set imaging equipment service life.

Long Fatigue Life Reduces Hospital Equipment Maintenance:Precision super-ground high-hardness raceways have outstanding anti-fatigue performance,adapting long-term daily repeated reciprocating rotation of hospital CT/MRI auxiliary rotary assemblies.Low wear reduces regular lubrication and bearing replacement cycles,cuts equipment downtime for medical institutions,and improves the continuous operation efficiency of diagnostic imaging equipment.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for CT/MRI scanner auxiliary rotary assemblies and other medical precision imaging rotary parts.

Medical Device Customization:Supply non-magnetic stainless steel thin bearings,low-outgassing medical lubricant and enhanced dust-sealed types; customized medical prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of dimensional tolerance,rotational torque and runout before shipment.

Global Fast Shipment:Mass stock of standard KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and relevant medical precision bearing standards,and SGS test reports can be provided upon request.
