Production Of SXU Crossed Roller Bearings

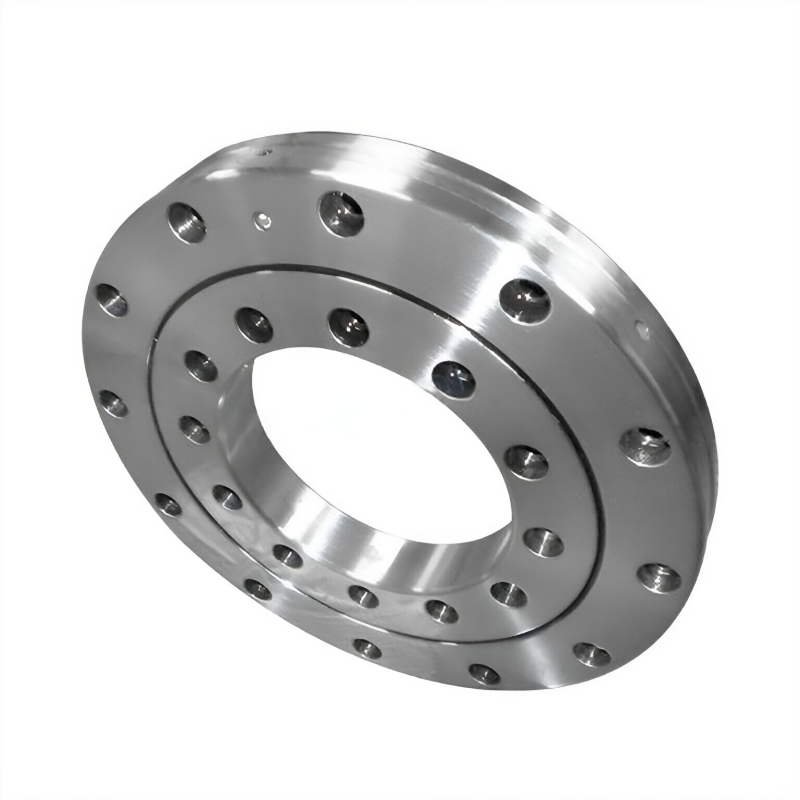

What are SXU Crossed Roller Bearings?

SXU (or XSU) crossed roller bearings are high-precision,low-profile bearings featuring cylindrical rollers arranged in a 90-degree V-groove pattern.Their unique "X" configuration allows a single compact bearing to handle radial,axial,and moment loads simultaneously.

Newbeetrans SXU series covers a complete size range from small miniature specifications to large-diameter models.The cross-section maintains an ultra-slim thickness,matching space-limited equipment layouts.Precision grades include P4 and P5 for selection,with open type,single seal (U) and double seal (UU) versions available.Standard material is quenched GCr15 bearing steel; SUS440 stainless steel customized versions are supplied for cleanroom,vacuum and corrosion-resistant working environments.

The features of SXU Crossed Roller Bearings

Integrated Ring Design:Both the inner ring and outer ring feature solid,single-piece construction,eliminating assembly errors and providing maximum structural stiffness.

Direct-Mount Installation:Outfitted with pre-drilled mounting holes directly on both inner and outer rings.This allows direct bolting to equipment without requiring specialized housing units or retaining flanges.

Multi-Directional Load Support:The $90^\circ$ cross-arranged rollers enable a single bearing to simultaneously handle radial loads,double-direction axial loads,and tilting moment loads.

High Rotational Precision:Optimized for minimal radial and axial runout,delivering micro-meter accuracy for both inner-ring and outer-ring rotation.

Compact,Space-Saving Profile:Offers a high load capacity relative to its ultra-thin cross-sectional area,significantly reducing overall equipment weight and footprint.

The applications of SXU Crossed Roller Bearings

Industrial Robotics & Automation

Robotic Articulating Joints:Used in robot wrists,elbows,and waists where multi-directional load capacity and compact joints are required.

Harmonic & RV Reducer Output Support:Mounted at the output of speed reducers to bear severe radial forces and tilting moments directly.

Machine Tools & CNC Equipment

Precision Indexing & Rotary Tables:Supports multi-axis CNC rotary tables and workholding fixtures requiring minimal runout and zero backlash.

Milling Heads & Tool Turrets:Handles machining vibration and cutting forces during multi-angle milling and turning operations.

Semiconductor & Electronics Manufacturing

Wafer Handling Robots & Alignment Stages:Delivers sub-micron positioning accuracy in vacuum or cleanroom environments.

Pick-and-Place Systems:Supports rapid acceleration and deceleration cycles in high-speed electronic assembly lines.

Medical & Healthcare Devices

Surgical Robots & Articulating Arms:Provides smooth,precise rotational movement for robotic surgical instruments.

Laboratory & Medical Imaging Equipment:Used in medical CT positioning stages,blood centrifuges,and precision patient support tables.

Metrology & Optical Systems

Coordinate Measuring Machines (CMM):Powers precision rotational indexing stages for measuring complex component geometries.

Radar & Surveillance Gimbals:Drives optical tracking cameras,laser targeting platforms,and antenna azimuth/elevation mounts.

Manufacturer of SXU Crossed Roller Bearings

Newbeetrans is a professional full-cycle manufacturer of SXU crossed roller bearings,integrating independent R&D,precision machining,heat treatment and full-performance testing workshops,fully complying with ISO 9001 international quality management standards.

Advanced Production Technology

The whole production flow strictly follows standardized procedures:raw material spectral inspection→precision forging→normalizing & tempering→multi-process precision turning→raceway superfinishing→low-temperature stabilization treatment→roller sorting→retainer assembly→preload calibration→sealing installation→finished comprehensive testing.We deploy fully automatic CNC lathes,CBN precision grinders and dedicated heat treatment lines to achieve P4 ultra-precision dimensional tolerance control.MES intelligent production system tracks every processing step for full traceability of each bearing batch.

Strict Full-Process Quality Inspection

100% full inspection is implemented for all finished SXU bearings,including rotational runout test,rigidity test,overturning moment fatigue test,temperature rise detection and dust tightness test.Material certification,performance test reports and SGS third-party inspection documents can be provided upon customer request.

Diversified Customized Service

Our engineering team with over 30 senior mechanical designers provides one-stop customized solutions:stainless steel anti-corrosion modification,ceramic roller lightweight upgrade,vacuum low-outgassing lubrication,special multi-layer sealing and non-standard size development.Custom non-standard bearing delivery cycle is 4-6 weeks according to drawing complexity.

Global Stable Logistics Support

Mass stock of standard SXU crossed roller bearings supports fast delivery within 10-15 working days.Complete sea and air cross-border logistics cooperation covers global clients,supporting trade terms including FOB,CIP and DAP to meet diversified international shipment demands.
