How Precision Crossed Roller Bearings Are Applied in Lithography Machines?

Lithography machines are the core equipment of semiconductor manufacturing,known as the "chip mother machine," which requires extreme precision and stability in the process of transferring circuit patterns to wafers.Precision crossed roller bearings,as key components for high-precision transmission,perfectly match the strict requirements of lithography machines for motion accuracy,rigidity,and compact structure.This article will elaborate on their characteristics,the importance in lithography machines,and specific application scenarios.

What are Precision Crossed Roller Bearings?

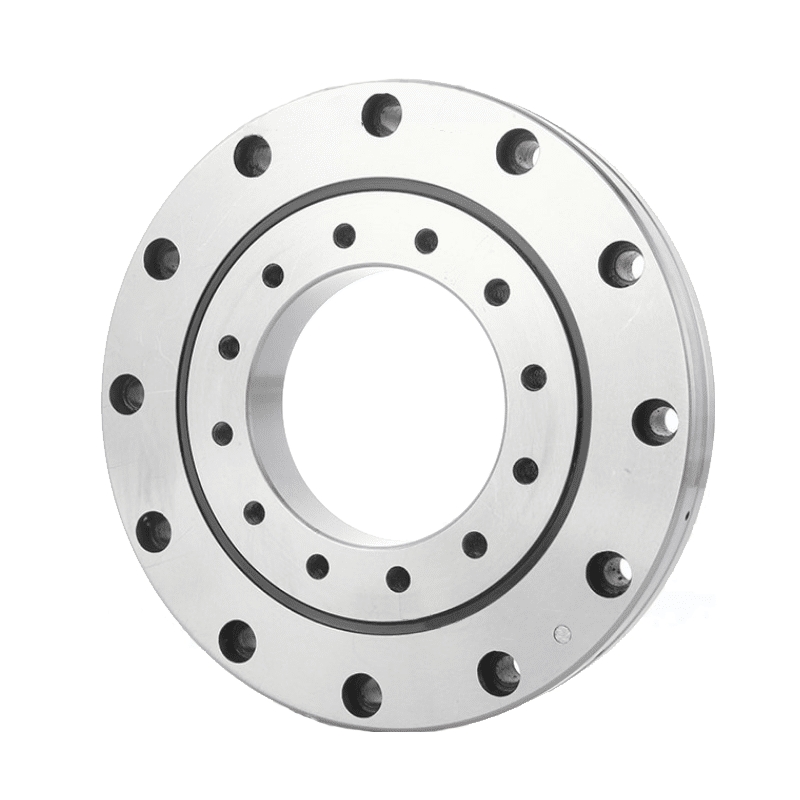

Precision crossed roller bearings are ultra-high-precision rolling bearings with cylindrical rollers arranged crosswise at 90° in V-shaped raceways,separated by precision cages.They are manufactured through advanced processes such as precision grinding and superfinishing,with precision grades reaching P5,P4,and even P2 levels.A single set of such bearings can simultaneously bear radial loads,axial loads,and overturning moments,eliminating the need for multiple bearing combinations.Their core advantages include compact structure (saving over 50% installation space compared to traditional bearings),high rigidity (line contact between rollers and raceways),ultra-low friction,and stable rotation.NewBee Transmission offers a full range of precision crossed roller bearings,including RB,RU,and CRBH series,with inner diameters ranging from 10mm to 1000mm,and supports customized designs for material,lubrication,and precision to meet the special needs of high-end equipment.

What are Lithography Machines?

Lithography machines are core manufacturing equipment used in the semiconductor industry to print microcircuit patterns on silicon wafers.According to the light source wavelength,they are mainly divided into DUV (Deep Ultraviolet) lithography machines and EUV (Extreme Ultraviolet) lithography machines,with the latter being the key equipment for manufacturing 7nm and below advanced process chips.The working principle of lithography machines involves projecting the circuit pattern on the mask onto the wafer coated with photoresist through a series of optical systems,and forming a permanent circuit pattern after development and etching.Lithography machines have extremely strict requirements for components:micron-level motion accuracy,strong rigidity to resist deformation,stable operation in ultra-clean environments,and long-term reliability under high-speed and continuous working conditions.

The Importance of Precision Crossed Roller Bearings in Lithography Machines

Precision crossed roller bearings play an irreplaceable role in lithography machines,and their importance is reflected in the following core aspects:

Ultra-high precision guarantee:The rotation accuracy of P2/P4 grade bearings can reach micron or even sub-micron level,ensuring the precise alignment of the mask and wafer during the lithography process.

Strong rigidity and deformation resistance:The cross-arranged rollers form line contact with the raceways,providing excellent rigidity,which can effectively resist the micro-deformation caused by external forces and ensure the stability of the optical path.

Compact structure adaptation:Lithography machines have limited internal space,and the compact design of crossed roller bearings helps optimize the overall structure of the equipment,avoiding interference between components.

Low friction and stable operation:The optimized roller profile and lubrication system reduce friction torque,ensuring smooth and low-vibration operation of rotating parts,which is crucial for maintaining the clarity of circuit patterns.

Clean environment compatibility:Adopting special materials and sealed structures,it can adapt to the ultra-clean working environment of lithography machines (Class 10 or higher cleanroom) and avoid particle pollution.

Applications of Precision Crossed Roller Bearings in Lithography Machines

In lithography machines,precision crossed roller bearings are widely used in key motion components,covering core links such as pattern projection and wafer handling:

Wafer stage rotation mechanism:The wafer stage is the core component that drives the wafer to move and position.Precision crossed roller bearings provide high-precision rotation support,ensuring that the wafer can be accurately aligned with the mask during the exposure process.

Mask stage adjustment structure:The mask stage needs to maintain stable position during the working process.Crossed roller bearings bear the mask weight and provide precise adjustment capabilities,ensuring the clarity and consistency of the projected pattern.

Optical lens adjustment mechanism:Used in the focusing and angle adjustment components of lithography machine lenses,providing high-rigidity and high-precision rotation support to ensure the stability of the optical path.

Wafer handling robotic arm joints:The robotic arm responsible for transferring wafers between different stations relies on crossed roller bearings to achieve precise and fast movement,avoiding wafer damage caused by vibration or deviation.

Precision indexing mechanism:Applied in the indexing and positioning components of lithography machines,ensuring accurate switching of working positions and improving production efficiency.

Manufacturer of Precision Crossed Roller Bearings

NewBee Transmission is a professional manufacturer focusing on high-precision crossed roller bearings,providing customized solutions for lithography machines and other high-end semiconductor equipment:

Full product series:Covers RB (integral type),RU (with mounting holes),CRBH (separable type) and other series,with precision grades P2/P4/P5,and size range 10-1000mm,fully matching the needs of different parts of lithography machines.

Advanced manufacturing capacity:Equipped with high-precision CNC grinding machines and automatic assembly lines,adopting precision cold ring rolling and superfinishing processes to ensure the consistency of bearing precision and performance.

Strict quality control:Implements full-process quality inspection in accordance with ISO 9001 and SEMI standards,and conducts 100% inspection of key parameters such as rotation accuracy,friction torque,and particle emission to meet the requirements of ultra-clean environments.

Strong customization capability:A professional R&D team composed of 30+ senior engineers provides targeted design according to the working conditions of lithography machines,and completes sample development within 15-20 days.

Efficient global service:Has intelligent warehousing and technical support teams in Asia,Europe,and North America,providing 7-10 days of fast delivery and 24/7 technical consultation to ensure the smooth progress of customers' semiconductor manufacturing projects.
