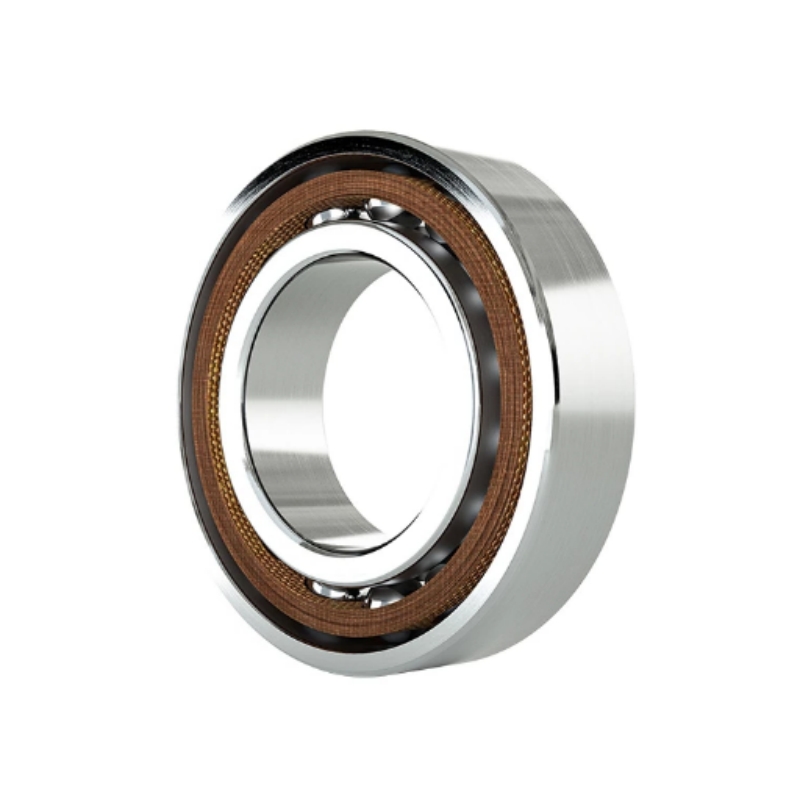

A spindle bearing is a high-precision rolling-contact bearing designed to guide rotating shafts in machine tools and vehicles with minimal friction,high speed,and extreme accuracy.
Main product series contain 618 series,619 series,718 series and 719 series.Inner diameter ranges from 10 mm to 950 mm with cross section dimension starting at 12 mm.Available precision grades cover P6,P5,P4 and ultraprecision P2.
For material options,rings and rolling elements can select GCr15 chrome steel,440C stainless steel or ceramic hybrid combinations.Cage choices include phenolic resin,brass,polyamide and stainless steel.Both open type and sealed versions are provided.Mass stock is ready for standard models.Custom solutions covering dimension adjustment,precision upgrade and material modification can be finished within 7 to 20 working days.
High-Precision Contact Angles:Typically manufactured with 15° or 25°contact angles.
15°angles maximize high-speed capability.
25°angles offer higher axial load capacity and axial rigidity.
Matched Bearing Sets & Universal Matching:Commonly supplied as factory-matched duplex,triplex,or quadruplex sets .Universally matchable versions allow flexible arrangement with precise pre-set preload.
Advanced Rolling Element Materials
Standard Steel Balls:High-carbon chromium steel for general high-speed duty.
Ceramic Balls:Silicon nitride balls reduce centrifugal force,operating temperatures,and thermal expansion at ultra-high RPMs while preventing electrical erosion.
Optimized High-Speed Cages:Equipped with outer-ring-guided or inner-ring-guided solid polymer cages (Polyamide,PEEK,or Phenolic resin) to minimize centrifugal forces,frictional heat,and noise.
Pre-Set Internal Preload:Available in light (L),medium (M),and heavy (S) preload classes to maintain rigid rolling element engagement,eliminate hysteresis,and prevent ball skidding during rapid acceleration.
Sealed & Maintenance-Free Options:Available with non-contact rubber seals pre-filled with high-speed synthetic grease to prevent coolant and chip contamination without adding speed-limiting drag.
Metal Cutting & CNC Machine Tools
Main Milling & Turning Spindles:Primary support for high-speed CNC milling shafts,lathe spindles,and multi-tasking machining centers.
Grinding Spindles:Supports internal,external,and surface grinding shafts where sub-micron surface finish and zero chatter are required.
High-Speed Boring & Drilling Heads:Provides precise axial guidance during deep-hole drilling and fine boring operations.
Woodworking Plastics & Composite Processing:
High-Speed Router Spindles:Handles sustained rotational speeds up to 40,000 RPM on CNC wood routers and composite machining centers.
Edge Bander & Trimming Heads:Maintains vibration-free cutting under continuous,high-speed material feeds.
Semiconductor Optics & Precision Manufacturing
Silicon Wafer Dicing Spindles:Supports ultra-high-speed air/electric spindles used for dicing silicon wafers and micro-glass substrates.
Optical Lens Grinding & Polishing:Delivers mirror-finish surface accuracy on optical lenses and mold cores.
Robotics Automation & Aerospace:
High-Frequency Motor Spindles:Direct-drive motorized spindles for high-speed robotic deburring,engraving,and aluminum aerospace milling.
Test Rig Dynos & Gyroscope Shafts:High-precision rotational support in aerospace test benches and inertial guidance equipment.
Newbeetrans is a professional manufacturer of high performance spindle bearings.Complete production workflow includes independent research and development,heat treatment,ultra-precision grinding and dedicated performance testing laboratories under ISO 9001 quality management certification.
Stock and Customization Capacity
Large quantities of standard spindle bearing series are kept in warehouse for fast shipment.Our technical group offers comprehensive custom services such as dimension revision,material upgrading,sealing modification and special lubricant matching.Custom delivery time will be arranged according to drawing complexity and raw-material supply condition.
Strict Full Process Quality Assurance
Every batch of incoming raw material carries out spectral and metallurgical inspection.Each finished spindle bearing receives one hundred percent inspection including dimension check,runout test,load assessment and high speed simulation verification.Material certificates and SGS third-party inspection reports can be supplied upon client request.
Advanced Production Infrastructure
Ultra-precision raceway grinders,special bearing assembly fixtures and professional high speed performance test benches are equipped in-house.MES production management system realizes full batch traceability to keep stable precision level for P6 up to P2 grade products.
Global Sales and Technical Support
We cooperate with worldwide sea freight and air freight service providers and support FOB,CIP,DAP and other standard international trade terms.Our engineers provide remote model-selection guidance,installation suggestion and preload adjustment consulting for global machine tool,semiconductor and precision equipment manufacturers.
For technical specifications,pricing,or custom bearing solutions:
