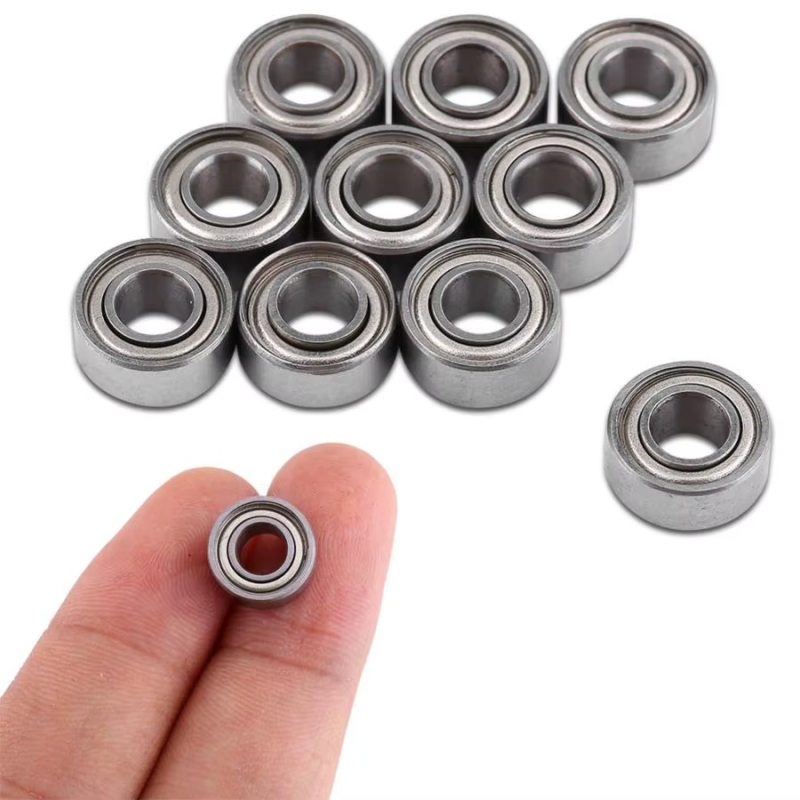

What are Miniature Bearings?

Miniature bearings are small,high-precision,low-friction bearings-often with bore diameters under 20mm-designed for compact machinery requiring high speeds,low torque,and low noise. Used in devices like dental drills,robotics,and small motors,they are often called instrument or micro bearings.

Features of Miniature Bearings

Miniature Bearings stand out for their tailored design for micro-device applications,boasting core features that match the extreme requirements of small-space operation:

Ultra-Compact Size & High Precision:With precision grades from P0 to P4,P4-grade variants achieve micron-level rotational accuracy (runout error ≤0.001mm) and super-finished raceways (surface roughness Ra≤0.02μm),meeting the precision demands of high-end equipment.

High-Speed Adaptability:Optimized cage designs (Nylon 66,brass,stamped steel) minimize centrifugal force and friction,enabling stable operation at 20,000 to 100,000 r/min for ultra-high-speed models,with low noise (≤32dB) and minimal temperature rise.

Diverse Material Options:Standard rings and rolling elements use GCr15 high-carbon chromium steel; 304/316L stainless steel is available for corrosive environments,and silicon nitride ceramics for ultra-high-speed scenarios,all with excellent wear and fatigue resistance.

Compact & Versatile Structure:Thin-section design maximizes space utilization,with optional configurations like ZZ metal shields,2RS rubber seals,and integral flanges for easy positioning and dust/water protection (99.8% efficiency for sealed types).

Customization Flexibility:Supports non-standard customization of sizes,seals,and lubrication solutions to meet the unique needs of special working conditions such as high temperature,corrosion,and vacuum.

Applications of Miniature Bearings

Leveraging their small size,high precision,and high-speed performance,Miniature Bearings are indispensable in 6 key high-growth fields,driving the operation of micro and precision equipment:

Micro Special Motors:Core components for drone motors,Bluetooth earphone motors,and hard disk spindles,ensuring stable high-speed rotation and low noise.

Medical Devices:Used in dental drills (100,000 r/min ultra-high speed),minimally invasive surgical instruments,and blood glucose meters,complying with FDA/GMP sterile and corrosion-resistant standards.

Precision Instruments:Critical for microscopes,measuring instruments,and watches,maintaining micron-level rotational accuracy for precise detection and operation.

Intelligent Robots:Applied to micro collaborative robot joints and manipulators,providing compact support and flexible rotation for small-scale robotic systems.

Consumer Electronics:Installed in computer cooling fans,flowmeters,and small household appliances,adapting to high-frequency and long-term operation requirements.

Office Equipment:Used in printer and scanner rollers,ensuring smooth rotation and uniform pressure for consistent product quality.

Price of Miniature Bearing

The price of Miniature Bearings is determined by 6 interrelated factors,with a focus on precision,material,and customization,with price differences of up to 2-3 times between standard and high-end variants:

Size & Precision Grade:Ultra-miniature bearings (inner diameter ≤1mm) and P4/P5 high-precision grades cost 30%-50% more than standard P0-grade miniature bearings due to complex machining and strict quality control.

Material Selection:304/316L stainless steel increases raw material costs by 40%-60% compared to GCr15 steel; silicon nitride ceramic bearings are even more expensive for ultra-high-speed applications.

Structural Design:Sealed (2RS/ZZ) or flanged bearings cost 15%-25% more than open-type ones due to additional processing and components.

Customization Requirements:Non-standard sizes,special lubrication,or high-temperature resistant designs add 20%-35% to the unit price due to personalized R&D and production.

Order Quantity:Bulk orders (≥500 pieces) qualify for 10%-20% quantity discounts; small-batch (≤50 pieces) orders incur higher production costs.

Delivery Time: Urgent orders (delivery within 3 days) add 20%-30% to the price due to expedited production and logistics.

How to choose Miniature Bearings

To select the optimal Miniature Bearing for equipment compatibility and long-term performance,purchasers need to conduct a comprehensive evaluation of 5 key factors:

Working Condition Matching:Clarify radial/axial load,rotational speed,working temperature (-40℃~180℃),and environment (clean/corrosive/dusty). Choose stainless steel and sealed bearings for corrosive environments,and ceramic bearings for ultra-high-speed scenarios.

Size & Precision Confirmation:Determine inner diameter,outer diameter,and width based on equipment design drawings; select P4/P5 grades for precision equipment (e.g.,medical devices) and P0/P6 grades for general applications (e.g.,office equipment).

Material & Cage Selection:GCr15 steel for standard conditions,304/316L stainless steel for corrosion resistance,Nylon 66 cages for high speed,and brass cages for heavy-load micro-applications.

Seal & Lubrication Matching:Open-type bearings for clean and low-dust environments,2RS/ZZ sealed bearings for dusty/wet conditions; use low-viscosity grease for high-speed operation and high-temperature grease for ≥100℃ working environments.

Supplier Qualification Assessment:Prioritize suppliers with ISO9001 certification,advanced CNC grinding equipment,and full-process testing capabilities,and evaluate after-sales support such as warranty and technical consultation.

Manufacturer of Miniature Bearings

NewBee Transmission is a professional high-quality Miniature Bearing manufacturer,providing reliable micro-transmission solutions for global customers in medical devices,consumer electronics,robotics,and other fields. With advanced manufacturing capabilities and customer-centric services,it has become a trusted partner for micro-precision equipment manufacturers:

Comprehensive Product Range: Covers all standard miniature bearing sizes,precision grades P0-P4,and configurations including open-type,sealed (2RS/ZZ),and flanged bearings,with spot supply for mainstream models.

Advanced Production & Testing:Equipped with international advanced CNC precision grinders,AI visual inspection systems,and spectral analysis equipment,implementing 100% full-process testing (salt spray,temperature rise,high-speed life) to ensure ex-factory qualification rate of 100%.

Professional Customization:A team of senior engineers with over 15 years of experience provides one-stop customization services for non-standard sizes,special materials,and seal structures,with a sample development cycle of only 4-6 weeks.

Reliable Quality & After-Sales:All products comply with GB/T 271-2017 and ISO standards,backed by a 12-month warranty; a 24/7 technical support team offers on-site installation guidance and rapid response to quality issues.

Efficient Logistics:Standard models have a delivery cycle of 3-7 days,with an intelligent warehousing center and global logistics partners (DHL/FedEx) to ensure timely delivery for customers worldwide.

Precautions for Using Miniature Bearings

Miniature Bearings feature high precision and small components,so standardized installation,lubrication,and maintenance are critical to maximizing their service life (which can be extended by 3 times with proper use):

Standardized Installation:Thoroughly clean the bearing,shaft,and housing bore to remove impurities; use specialized pressing tools to apply force evenly on the inner/outer ring,avoid hammering to prevent raceway deformation; adopt a reasonable interference fit (shaft h7/housing H8).

Scientific Lubrication Management:Select lubricants based on working conditions; replace grease for open-type bearings every 500-1000 working hours; regularly inspect sealed bearings for leakage and replenish grease in a timely manner to avoid over-lubrication (overheating) or insufficient lubrication (dry friction).

Real-Time Operation Monitoring:Monitor temperature,vibration,and noise during operation; the normal working temperature is 30-70℃ with a temperature rise ≤15℃. Immediately shut down equipment for inspection if abnormal temperature spikes or noise occur to prevent catastrophic damage.

Proper Storage & Handling:Store bearings in a clean,dry,and ventilated environment (humidity ≤60%),avoid contact with corrosive substances,and place them horizontally to prevent ring deformation; use shockproof packaging during transportation to avoid collision and precision loss.

Regular Maintenance:Conduct periodic inspections based on equipment operating cycles; check for raceway/roller wear,cage integrity,and seal damage,and replace worn bearings promptly to avoid secondary failure of the host equipment.
