How Precision RB Crossed Roller Bearings Are Applied in 3D Five-Axis Laser Cutting Equipments?

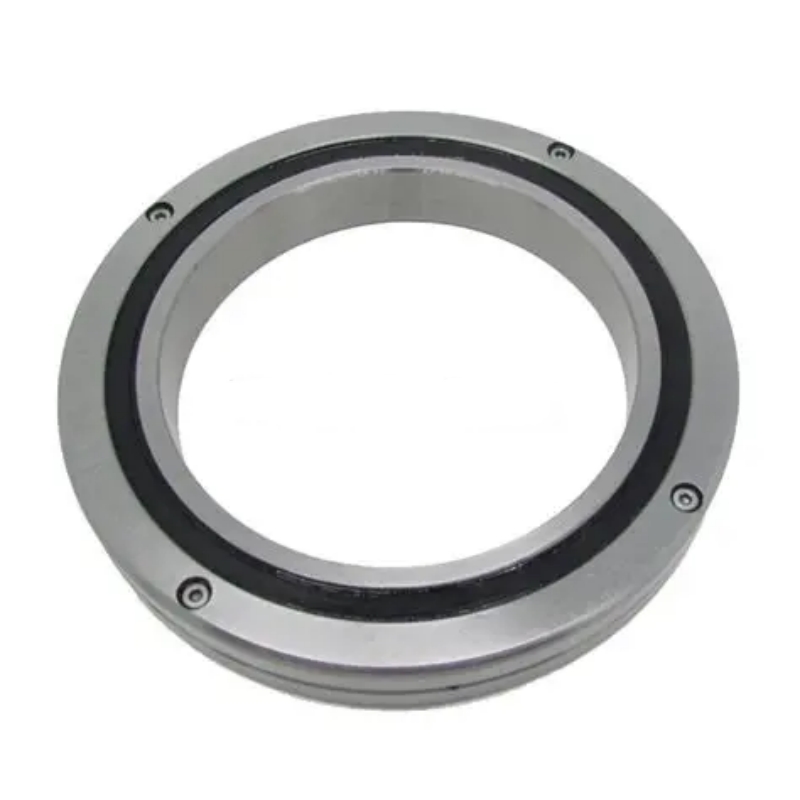

What are Precision RB Crossed Roller Bearings?

RB Crossed Roller Bearings are high-precision components featuring cylindrical rollers arranged at 90°angles in alternating directions.This allows a single bearing to handle radial,axial,and moment loads simultaneously,making them ideal for compact,high-stiffness applications like robotics,CNC rotary tables,and medical equipment.Available precision grades cover P5,P4 and P2;inner diameter ranges from 30mm to 1250mm while cross-section height varies between 8mm and 110mm.The rings and rollers are manufactured from GCr15 high-carbon chrome steel with surface hardness HRC 60-62 or corrosion-resistant SUS440C stainless steel,and nylon 66 serves as lightweight bearing cage material.Two sealing options are available:standard open type for clean environment and UU/U contact rubber seal to block dust and liquid splashing with industrial heavy-duty grease lubrication.

What are 3D Five-Axis Laser Cutting Equipments?

3D five-axis laser cutting equipments are high-end CNC precision processing machines widely used in automotive manufacturing,aerospace,mold processing,home appliances and 3C industries.Different from conventional two-dimensional laser cutters,they adopt XYZ linear axes plus AC rotary axes five-axis linkage structure,enabling 360° rotation and ±135° swing of the laser cutting head.These devices can complete one-time clamping and multi-angle cutting for complex curved workpieces,greatly improving processing efficiency and workpiece accuracy.Most rotary spindles of cutting heads and indexing turntables are pre-assembled with gears,reducers and servo components before bearing installation,which brings great assembly difficulties to traditional integral bearings.During long-term operation,the equipment is exposed to metal dust,high-temperature flue gas and tiny laser debris.The rotary units need to withstand frequent start-stop,reciprocating rotation and alternating dynamic loads.The rotational stability and positioning accuracy of supporting bearings directly determine the cutting quality,contour precision and continuous production capacity of laser cutting machines.

The features of RB Crossed Roller Bearings

Multi-Directional Load Capacity:Unlike standard ball bearings,the crossed arrangement empowers the RB series to accommodate loads from all directions at once.

High Rigidity and Precision:The integration of a preload adjusts the bearing clearance,eliminating internal gaps and allowing for high rotational accuracy and minimal deformation under heavy loads.

Compact Space-Saving Profile:Because one crossed bearing replaces multiple conventional ball or roller bearings,they are exceptionally well-suited for tight,space-constrained assemblies.

Smooth Rotation:Spacer retainers separate the rollers,preventing them from skewing and eliminating friction between rolling elements for a stable,low-torque motion.

The applications of RB Crossed Roller Bearings

Industrial Robotics & Automation:Used in basic motion parts like rotary joints,waists,and wrists for smooth and precise motion control.

Precision Machine Tools:Utilized in the rotating tables of machining centers,rotary units of manipulators,and indexing heads to handle heavy,spinning components.

Medical Equipment:Deployed in sophisticated imaging components like MRI machines,CT scanners,and surgical robots to provide smooth,accurate,and vibration-free movement.

Semiconductor & IC Manufacturing:Provide micron-scale accuracy for wafer handling equipment,photolithography machines,and cleanroom pick-and-place systems.

Optical & Measuring Instruments:Essential for the tracking accuracy of astronomical telescopes,radar antennas,and Coordinate Measuring Machines (CMM).

The Importance of RB Crossed Roller Bearings in 3D Five-Axis Laser Cutting Equipments

Simplify Complex On-site Assembly:The separable outer ring can be installed directly on pre-fitted spindles with gears and reducers without dismantling existing transmission components.It effectively shortens the equipment assembly cycle and reduces production and after-sales maintenance costs for laser machinery manufacturers.

Adapt to Complex Dynamic Loads:A single RB bearing replaces multiple bearing sets to bear the self-weight of the cutting head,workpiece load and swing overturning moment synchronously.It simplifies the internal mechanical structure of rotary parts and enhances the overall structural stability of the laser cutter.

Suppress Vibration and Ensure Cutting Precision:Ultra-high structural rigidity restrains micro-vibration and deflection during high-speed rotation and swing.P4/P2 high precision controls tiny rotational runout,preventing burrs,contour distortion and dimensional errors on cut workpieces,and guaranteeing high-quality processing results.

Adapt to Harsh Processing Environments:Diversified sealing structures block metal dust and high-temperature flue gas.Custom stainless steel materials resist corrosion,protecting internal bearing components from damage in long-term laser processing scenarios.

Reduce Unplanned Downtime:Excellent fatigue and wear resistance enable 24-hour uninterrupted operation of laser cutting equipments.It lowers the frequency of regular maintenance and bearing replacement,and maximizes the continuous production efficiency of processing workshops.

Manufacturer of Precision RB Crossed Roller Bearings

Newbeetrans is a professional manufacturer of RB crossed roller bearings.We provide targeted customized bearing solutions for 3D five-axis laser cutting equipments and various heavy-duty precision machinery.

Laser Equipment Customization:We develop high-rigidity,dust-proof and high-temperature resistant RB bearings matched with special anti-smoke lubricants.Custom samples can be delivered within 10–15 days.

Strict Precision Manufacturing:All raceways and rollers adopt super-fine grinding to reach P5/P4/P2 precision standards.Full dimensional inspection is implemented for all finished products.

Fast Global Delivery:Standard RB bearings are in stock for prompt shipment,and complete global multi-channel logistics services are available for overseas customers.

Authoritative Quality Certification:Our products comply with ISO 9001 and GB/T 307.1 standards,and official SGS inspection reports can be provided upon request.
