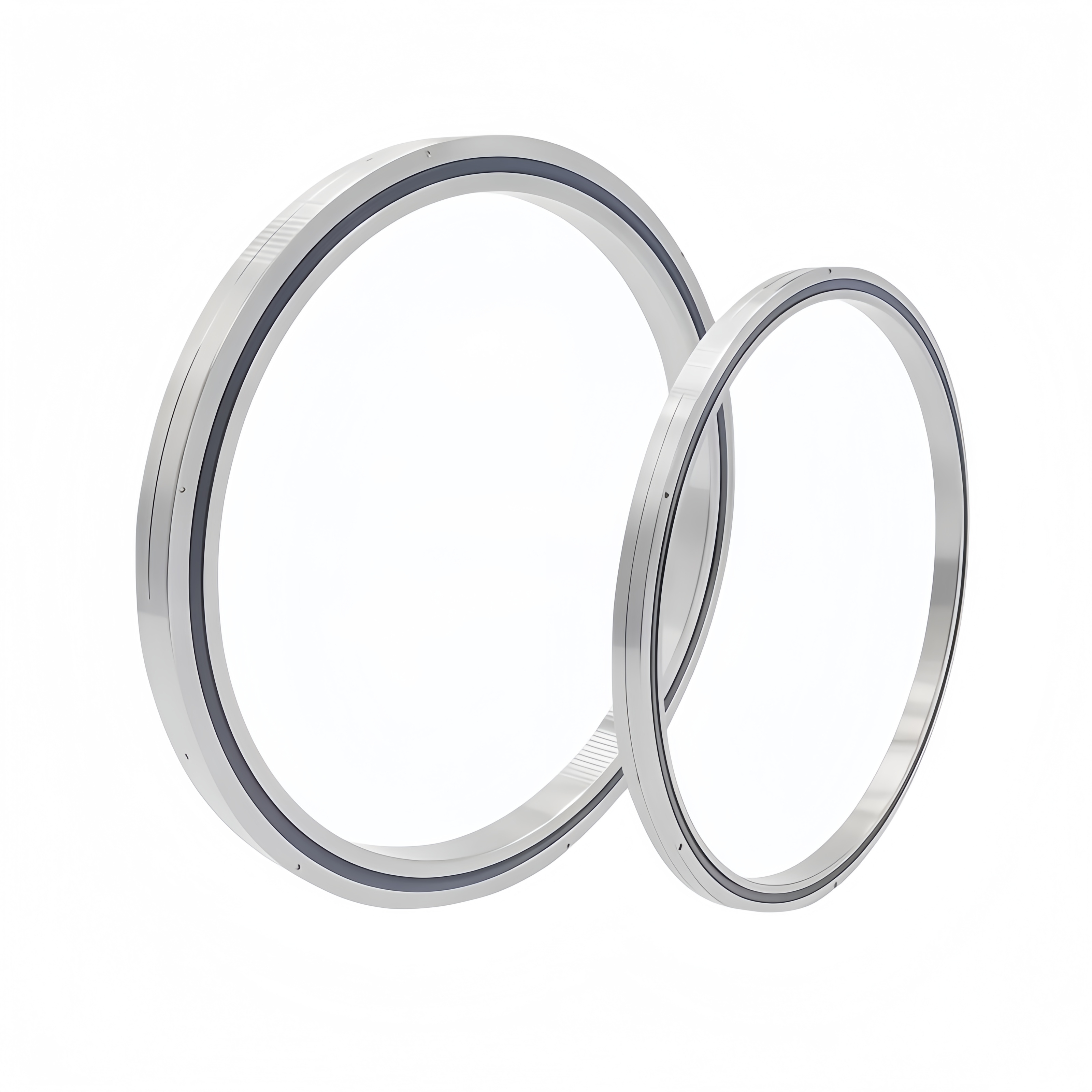

How Precision RA Crossed Roller Bearings Are Applied in the Precision Indexing Heads?

What are Precision RA Crossed Roller Bearings?

RA crossed roller bearings are specifically designed for precision rotary systems,featuring a 90° orthogonal crossed roller layout that enables simultaneous bearing of radial loads,axial loads,and overturning moment loads.They are suitable for high-precision,high-rigidity,and space-constrained applications.Their integrated inner ring structure enhances system rigidity and simplifies installation,while the optional preload configuration eliminates internal clearances,making them ideal for equipment requiring stable and precise rotation,such as industrial robots,precision machine tools,optical instruments,and semiconductor manufacturing equipment.

What are Precision Indexing Heads?

Precision indexing heads are core functional units of machine tools and automated production equipment,designed to precisely rotate and position workpieces at preset angles for high-accuracy machining,assembly,or inspection tasks.Widely used in CNC machine centers,milling machines,grinders,and automated assembly lines,they enable one-setup processing of complex parts with multi-angle features (such as gear teeth,bolt hole circles,and curved slots) by achieving accurate circular indexing and angular positioning.These indexing heads demand ultra-high rotational precision,exceptional rigidity,low vibration,and compact integration.They must withstand dynamic cutting or assembly forces,maintain consistent angular accuracy (up to ±1"for high-precision models),and operate stably for long hours.Even minor deflection or runout can lead to indexing errors and defective workpieces,making the selection of high-performance bearings critical for ensuring the reliability and accuracy of precision indexing heads.

The Importance of RA Crossed Roller Bearings in Precision Indexing Heads

RA crossed roller bearings serve as the core rotary support for precision indexing heads,directly determining indexing accuracy,positioning stability,and equipment reliability.

Ultra-High Rigidity to Resist Dynamic Loads:The crossed-roller layout maximizes contact area,effectively resisting deformation under dynamic cutting,assembly,or workpiece weight loads.This rigidity ensures the indexing head remains stable during high-precision indexing operations,preventing deflection that would cause angular errors and compromise workpiece quality.

Composite Load Capacity for Complex Forces:Simultaneously bears radial loads (from workpiece weight),axial loads,and overturning moment loads (from cutting or assembly forces),replacing multiple bearing combinations and simplifying the indexing head’s internal structure.This integrated load-bearing design reduces assembly errors and enhances overall structural stability.

Precision Rotation for Ultra-Accurate Indexing:P4/P2 grade precision and ≤0.002mm runout tolerance deliver micron-level rotational accuracy.This eliminates indexing and positioning errors,ensuring the indexing head achieves the required angular precision (up to ±1″) for high-precision machining and inspection tasks.

Compact & Lightweight Design for Space Efficiency:Thin-section (8mm–13mm) and lightweight structure perfectly fits the slim,integrated layout of precision indexing heads.It saves valuable internal space without compromising load capacity,supporting the compact and lightweight design of modern precision machine tools and automated equipment.

Low Friction & Vibration-Free Operation:Optimized roller geometry minimizes friction and vibration,ensuring smooth,jitter-free rotation during high-speed or frequent indexing cycles.This stability is vital for maintaining consistent indexing accuracy and preventing wear on precision components.

Long Life for Continuous Production:Surface-hardened materials (HRC 60-62) enhance fatigue resistance,supporting 24/7 continuous operation in industrial machining and automated production environments.It reduces downtime and maintenance costs for mass production.

Manufacturer of Precision RA Crossed Roller Bearings

Newbeetrans is a professional manufacturer of RA crossed roller bearings,providing tailored solutions for precision indexing heads.

Indexing Head-Focused Customization:Offers designs for high rigidity,zero backlash,and heavy-load resistance.Supports special lubrication (for dust/coolant environments) and non-standard dimensions:samples ready in 10–15 days.

Precision Manufacturing:Adopts super-fine grinding for P4/P2 grade precision,with strict quality control for critical dimensions.Monthly production capacity exceeds 2 million sets.

Fast Delivery & Global Support Standard:RA series shipped within 72 hours:global logistics available.

Quality Assurance:ISO 9001 & GB/T 307.1 certified; SGS inspection reports provided.
