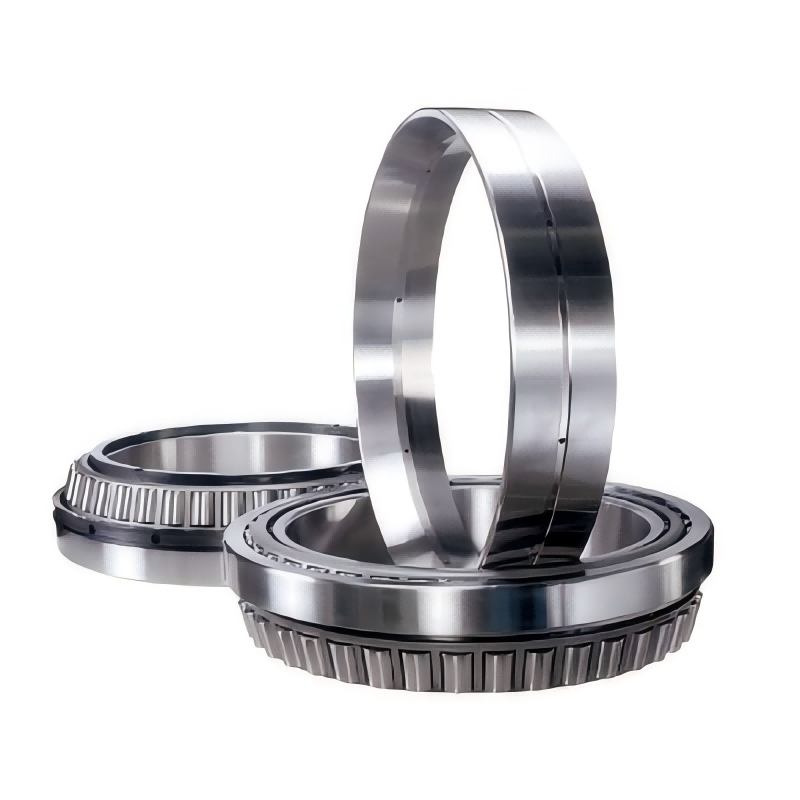

Double row tapered roller bearings are specialized rolling-element bearings featuring two rows of tapered rollers arranged side-by-side to support very heavy radial loads and bidirectional axial loads simultaneously.
Inner ring and outer ring can be integral or separable according to model selection.Precision grades cover P0,P6,P5 and P4.Inner diameter ranges from 150 mm to 1778 mm,outer diameter spans 210 mm to 2159 mm and width dimension varies from 86 mm to 393.7 mm.
Bearing rings and rolling elements can adopt GCr15 or SUS440C material.Cage options include brass,Nylon 66 and stamped steel.Multiple sealing solutions are available.Open type needs regular external lubrication and fits clean heavy-load medium-low speed working conditions.Contact rubber seals 2RS or ZZ deliver dustproof and splash-proof performance for dusty humid industrial sites.Non-contact seals Z or RS produce low friction and suit medium-high speed operation.
Standard product delivery takes 7 to 15 working days.Custom manufacturing service supports non-standard dimension adjustment,taper angle modification,corrosion resistant material upgrade,special lubrication for high or low temperature surroundings and seal structure optimization.Custom lead time needs further confirmation with the manufacturer.
High load carrying capacity
Double row tapered roller bearings are suitable for heavy radial and axial loads.The axial load carrying capacity of tapered roller bearings increases with increasing contact angle α.The size of the contact angle,which is usually between 10° and 30°,is related to the calculation factor e (from the product tables):the larger the value of e,the larger the contact angle.
Axial loads in both directions
Double row tapered roller bearings locate the shaft in both directions with a specific axial clearance or preload.
High stiffness
Double row tapered roller bearings provide a stiff bearing arrangement.
Low friction
The optimized roller end design and surface finish on the flange promote lubricant film formation,resulting in lower friction.This also reduces frictional heat and flange wear.In addition,the bearings can better maintain preload and run at reduced noise levels.
Long service life
The crowned raceway profiles of basic design bearings and the logarithmic raceway profiles of SKF Explorer bearings optimize the load distribution along the contact surfaces,reduce stress peaks at the roller ends,and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
Enhanced operational reliability
Optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
Heavy Industrial Gearboxes & Transmission Systems
Reduction Gearboxes:Supports high torque,helical/bevel gear reaction forces,and shaft deflections.
Mining Gear Drives & Tunnelling Machines:Handles extreme shock loads,vibration,and reversing thrust loads.
Metals & Steel Manufacturing
Rolling Mill Work Rollers & Pinion Stands:Absorbs extreme impact radial pressure and bi-directional thrust during metal slab forming.
Coiler & Uncoiler Drives:Manages heavy dynamic overhung moment loads during strip processing.
Railway & Mass Transit
Locomotive & Freight Axlebox Bearings:Serves as the main axle support,handling heavy vehicle weight and high lateral cornering thrusts.
Wheelset Journal Assemblies:Provides pre-adjusted axial clearance to survive continuous dynamic vibration and track impact.
Heavy Material Handling & Mining Equipment
Hoisting Equipment & Winch Drums:Manages high cable tensions and bi-directional axial thrust during lifting.
Crushers,Conveyor Drives & Excavators:Supports heavy drive shafts subjected to severe material impact and misalignments.
Renewable Energy & Power Generation
Wind Turbine Main Shafts & Planetary Gear Stages:Absorbs complex combined wind thrusts and radial rotor forces.
Hydroelectric Turbine Shafts:Acts as heavy-duty combined thrust and guide bearings.
Newbeetrans is a professional manufacturer of double row tapered roller bearings for heavy-industry applications.Complete production workflow covers independent research and development,precision forging,heat treatment,ultra-precision grinding and dedicated heavy-load performance testing laboratories under ISO 9001 quality management certification.
Stock and Customization Capacity
Mainstream standard double row tapered roller bearing models are kept in stock for fast shipment.Our technical group delivers comprehensive custom services such as non-standard dimension development,taper angle adjustment,SUS440C corrosion-resistant material upgrade,special sealing configuration and extreme temperature lubricant matching.Non-standard heavy-load customization usually takes 6-12 weeks.Urgent production support is available for emergency heavy-duty projects.
Strict Full-Process Quality Assurance
Every incoming raw material batch completes spectral and metallurgical inspection.Each finished bearing undergoes one hundred percent inspection including dimension measurement,load simulation assessment,shock resistance test and sealing performance verification.Material certificates and SGS third-party inspection reports can be provided on client request.
Advanced Production Infrastructure
Heavy-duty bearing special grinders,dedicated assembly fixtures and multi-condition heavy-load test benches are deployed in-house.MES production management system realizes full batch traceability to stabilize P0,P6,P5 and P4 precision tolerance standards.
Global Sales and Technical Support
We cooperate with worldwide sea freight and air freight service providers and support FOB,CIP,DAP and other standard international trade terms.Our engineers provide remote model-selection consulting,installation guidance and clearance adjustment suggestions for global mining,metallurgy,wind power and heavy machinery manufacturers.
