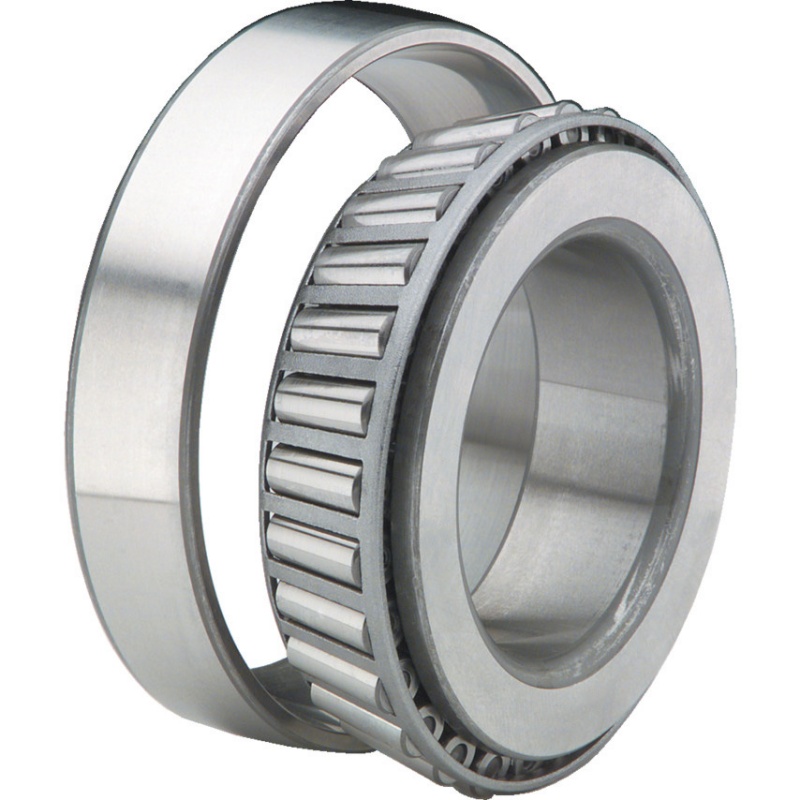

Heavy Load Tapered Rolling Bearings for Complex Force Working Conditions

What are Tapered Rolling Bearings?

Tapered rolling bearings are specialized rolling element bearings designed with conical raceways and angled,trapezoidal rollers that allow them to simultaneously support both heavy radial and axial loads.

Inner ring and outer ring adopt integral construction.Tapered rollers are arranged with matched raceway angles in single-row or double-row distribution.Precision grades cover P0,P6,P5 and ultra-precision P4.Inner diameter ranges from 150 mm to 950 mm,outer diameter spans 270 mm to 1250 mm and width dimension varies between 30 mm and 170 mm.

Bearing rings and rolling elements can select GCr15 high carbon chromium steel or SUS440C stainless steel for corrosive surroundings.Cage material options include brass,reinforced Nylon 66 and stamped steel.Single-row standard models take 5-12 working days for delivery while double-row standard models take 7-15 working days.All customized items need further consultation with the manufacturer.

Single-row units require paired mounting such as face-to-face or back-to-back arrangement to realize bidirectional axial positioning.Double-row versions own self-aligning performance to compensate 2-3 degree installation misalignment and shaft deflection.Precision ground raceways and optimized roller end face greatly cut friction loss and improve overall operational stability.

The Features of Tapered Rolling Bearings

True Rolling Motion:The conical raceways of the cup and cone,along with the roller tapers,intersect at a common point on the main center line of the bearing.This design eliminates sliding friction between the rollers and raceways during operation.

Combined Load Capacity:Simultaneously absorbs heavy radial loads and single-direction axial thrust loads.The axial load-carrying capacity is determined by the raceway contact angleα.

Demountable & Interchangeable Design:The inner ring assembly (cone,rollers,and cage) and the outer ring (cup) can be mounted separately.This simplifies installation,inspection,and maintenance procedures.

Adjustable Internal Clearance/Preload:System preload or operational clearance is set during mounting by adjusting the axial position of one bearing against an opposing bearing on the shaft.

High Structural Rigidity:Line contact between the tapered rollers and raceways provides high radial and axial stiffness,minimizing shaft deflection under heavy loads.

Roller Rib Guidance:The large end of the tapered roller is guided by the ground main rib of the inner ring (cone),ensuring precise roller alignment and preventing skewing under heavy operational thrust.

The Applications of Tapered Rolling Bearings

Automotive & Commercial Vehicles

Front & Rear Wheel Hubs:Single-row and double-row units support combined vehicle weight,cornering thrusts,and braking forces.

Differential Drives & Pinion Shafts:Paired back-to-back (DB) single-row bearings maintain precise gear meshing under heavy torque.

Trailer Axles:Heavy-duty double-row assemblies manage continuous impact loads and long-distance road wear.

Heavy Machinery & Construction Equipment

Excavator & Dozer Track Rollers:Double-row bearings support heavy machine weight and continuous lateral ground pressure.

Transmission & Final Drive Gearboxes:Manages high-torque,reversing helical gear forces in earthmoving equipment.

Crane Sheaves & Winch Drums:Supports combined rope tension and axial alignment.

Industrial Gear Drives & Reduction Units

Helical & Bevel Gear Reducers:Absorbs both radial gear forces and high axial thrust generated by inclined gear teeth.

Extruder Drive Units:Manages extreme axial back-pressure generated during plastic and rubber extrusion processing.

Metals Industry & Heavy Manufacturing

Rolling Mill Roll Necks:Four-row tapered roller bearings support massive shock loading during steel slab and strip reduction.

Coiler & Uncoiler Drums:Handles overhung moment loads and strip tension forces.

Manufacturer of Tapered Rolling Bearings

Newbeetrans is a professional manufacturer of heavy load tapered rolling bearings for complex-force industrial working scenarios.Complete production workflow includes independent research and development,precision forging,heat treatment,ultra-precision grinding and dedicated heavy-load performance testing laboratories under ISO 9001 quality management certification.

Stock and Customization Capacity

Mainstream standard tapered rolling bearing models are kept in stock for prompt shipment.Our technical group supplies comprehensive custom services such as non-standard dimension revision,contact angle adjustment,SUS440C corrosion-resistant material upgrading,special lubricant matching and cage material modification.Single-row custom projects normally take 4-8 weeks and double-row custom projects take 6-12 weeks.Urgent production support is available for heavy-load emergency projects.

Strict Full-Process Quality Assurance

Every incoming raw material batch completes spectral and metallurgical inspection.Each finished tapered rolling bearing receives one hundred percent inspection including dimension measurement,runout test,compound load assessment,shock resistance test and friction performance verification.Material certificates and SGS third-party inspection reports can be provided upon client request.

Advanced Production Infrastructure

Special heavy-load bearing grinders,dedicated assembly fixtures and multi-condition performance test benches are deployed in-house.MES production management system realizes full batch traceability to stabilize P0,P6,P5 and P4 precision tolerance standards.

Global Sales and Technical Support

We cooperate with worldwide sea freight and air freight service providers and support FOB,CIP,DAP and other standard international trade terms.Our engineers provide remote model-selection consultation,installation guidance and clearance adjustment suggestions for global automotive,mining,metallurgy and heavy machinery manufacturers.
