High-Speed CNC Drilling Machine

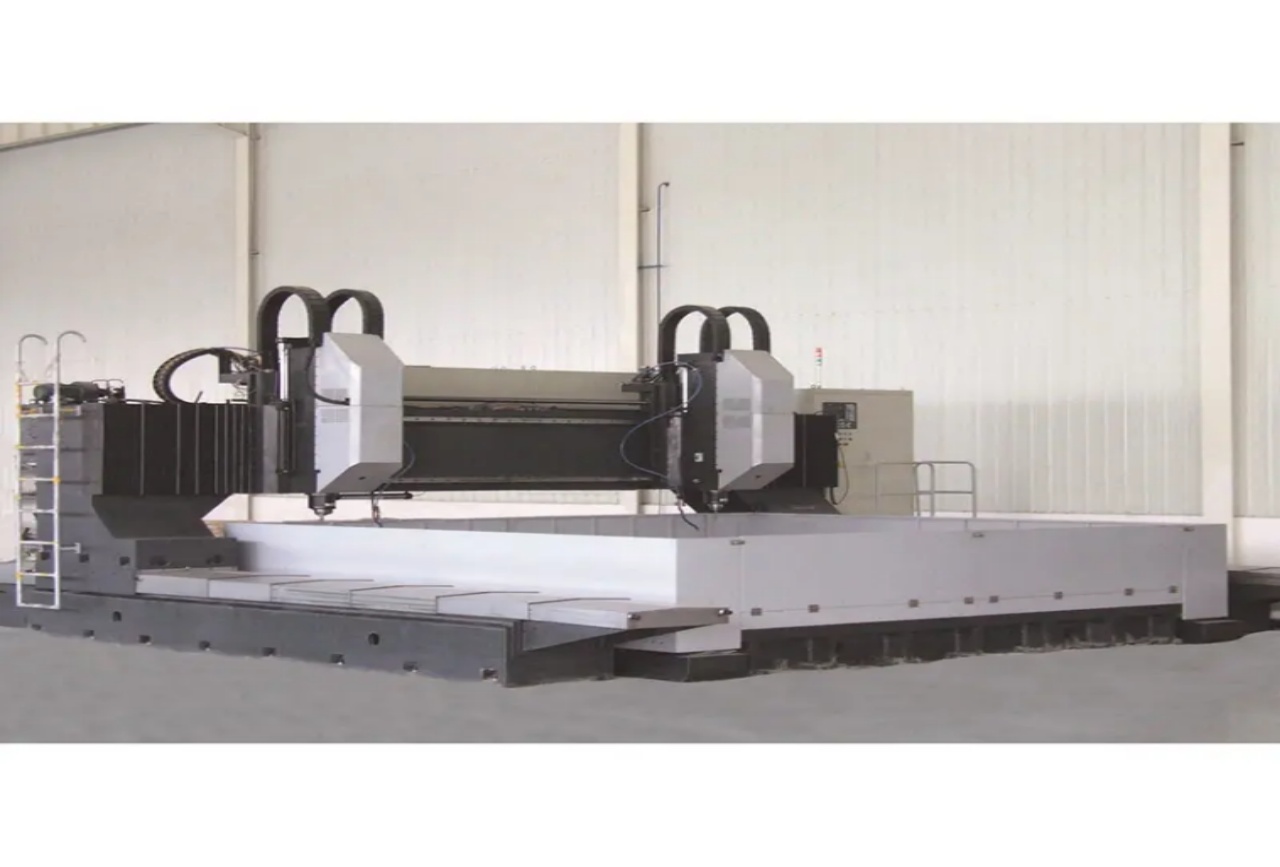

XLMZ Series Gantry-Mobile High-Speed CNC Flat Drilling Machine

✅ Gantry Mobility & Structural Advantages

Moving Gantry Design: Fixed table with mobile gantry (X-axis travel: 2-12m); dual-motor drive on large models (X/Y/Z-axis).
High-Rigidity Construction: Bed, table, gantry, and crossbeam made of high-strength cast iron with resin sand molding.

✅ Key Performance Parameters

Max. Drilling Capacity:Single Spindle: Ø90mm (Internal cooling with carbide drills).Dual Spindle: Ø70mm per spindle (Models TLMZ4040/2 and larger).Max. Material Thickness: 300mm .

✅ Precision & Drive Technology

Linear Motion:Imported heavy-duty roller linear guides (high load capacity, low friction).High-precision imported ball screws (all axes).
Positioning Accuracy:X/Y-axis: 0.09mm (full length, standard models) → 0.18mm.
Repeated Positioning Accuracy:X/Y-axis: 0.029mm (full length, standard models) → 0.08mm .

✅ Efficiency & Configuration

Spindle Options: 1 spindle (smaller models) / 2 independent spindles (models ≥ XLMZ4040/2; min. center distance: 1300mm).
Rapid Traverse: 8 m/min (X/Y-axis), 6 m/min (Z-axis).

✅ Power & Dimensions

Dimensions (L×W×H): 5000×4600×3000mm (XLMZ2020) → 16200×16000×4500mm (XLMZ120120/2).

Contact Expert Get a Quote

Techspecs

Parameter	Unit	TLMZ2020	TLMZ2525	TLMZ3030	TLMZ4040/2	TLMZ5050/2	TLMZ6060/2	TLMZ7070/2	TLMZ8080/2	TLMZ9090/2	TLMZ100100/2	TLMZ110110/2	TLMZ120120/2
Working Range
Table Size (L×W)	mm	2000×2000	2500×2500	3000×3000	4000×4000	5000×5000	6000×6000	7000×7000	8000×8000	9000×9000	10000×10000	11000×11000	12000×12000
Gantry Width	mm	2800	3300	3800	4800	5800	6800	7800	8800	9800	11000	12000	13000
Spindle System
Spindle Quantity	pcs	1	1	1	2	2	2	2	2	2	2	2	2
Spindle Taper	-	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Max. Drilling Diameter	mm	Ø90	Ø90	Ø90	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)	Ø90 (single)/Ø70 (dual)
Max. Material Thickness	mm	300	300	300	300	300	300	300	300	300	300	300	300
Spindle Speed Range	rpm	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500	5-4500
Spindle Motor Power	kW	37	37	37	37	37	37	37	37	37	37	37	37
Axes Travel & Speed
X-Axis Travel	mm	2000	2500	3000	4000	5000	6000	7000	8000	9000	10000	11000	12000
Y-Axis Travel	mm	2000	2500	3000	4000	5000	6000	7000	8000	9000	10000	11000	12000
Z-Axis Travel	mm	800	800	800	800	800	800	800	800	800	800	800	800
Rapid Traverse Speed (X/Y)	m/min	8	8	8	8	8	8	8	8	8	8	8	8
Precision Specifications
X-Axis Positioning Accuracy	mm	0.09/full length	0.09/full length	0.09/full length	0.09/full length	0.09/full length	0.08/full length	0.12/full length	0.12/full length	0.12/full length	0.12/full length	0.16/full length	0.18/full length
Y-Axis Positioning Accuracy	mm	0.09/full length	0.09/full length	0.09/full length	0.09/full length	0.09/full length	0.08/full length	0.12/full length	0.12/full length	0.12/full length	0.12/full length	0.16/full length	0.18/full length
X-Axis Repeatability	mm	0.029/full length	0.029/full length	0.029/full length	0.039/full length	0.039/full length	0.04/full length	0.06/full length	0.06/full length	0.06/full length	0.06/full length	0.08/full length	0.08/full length
Y-Axis Repeatability	mm	0.029/full length	0.029/full length	0.029/full length	0.039/full length	0.039/full length	0.04/full length	0.06/full length	0.06/full length	0.06/full length	0.06/full length	0.08/full length	0.08/full length
Cooling & Chip Removal
High-Pressure Internal Cooling	MPa/L/min/kW	5/40/5.5	5/40/5.5	5/40/5.5	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2	5/40/5.5×2
Chip Conveyor Quantity	pcs	2	2	2	2	2	2	2	2	2	2	2	2
Dimensions & Power
Total Power	kW	~55	~55	~55	~110	~110	~110	~110	~110	~125	~125	~125	~125
Machine Weight	Tons	~25	~30	~40	~85	~60	~80	~100	~140	~180	~220	~250	~280
Dimensions (L×W×H)	mm	5000×4600×3000	5500×5100×3000	6000×5500×3000	8200×7800×4500	9200×8900×4500	10200×9900×4500	11200×11000×4500	12200×12000×4500	13200×13000×4500	14200×14000×4500	15200×15000×4500	16200×16000×4500
Control System
CNC System	-	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D	Siemens 828D
Number of CNC Axes	pcs	4+1	4+1	4+1	6+2	6+2	6+2	6+2	6+2	6+2	6+2	6+2	6+2

Description

Gantry and Bed:The gantry is cast from HT300 high - strength cast iron and has undergone thermal aging and vibration aging treatments. The guide surface is super - audio frequency quenched (with a hardness of HRC50 - 55). The bed is fixed. The gantry moves along the X - axis, the ram - type drilling power head moves along the Y - axis, and the spindle feeds vertically along the Z - axis. Power Head System:The standard configuration includes 1 - 2 BT50 spindle power heads. The maximum drilling diameter is φ90 mm (single - head) / φ70 mm (double - head). The spindle speed range is 5–4500 rpm, and it supports high - pressure internal cooling (5.5 MPa) and low - pressure external cooling processing modes.

Features

Efficient multi - axis collaboration

t supports the synchronous processing of two power heads, increasing the efficiency by 50% and meeting the needs of mass production

High - Precision Control

The Siemens 828D system integrates thermal error compensation, with a positioning accuracy of ±0.01 mm, meeting the requirements of precision machining.

Long - Life Design

The super - audio frequency quenched guide rails (HRC50 - 55) and zinc - aluminum alloy wear - resistant plates ensure a service life of over 10 years.

Intelligent Maintenance

The automatic lubrication system and vibration monitoring module can provide real - time warnings of mechanical failures and reduce unplanned downtime.

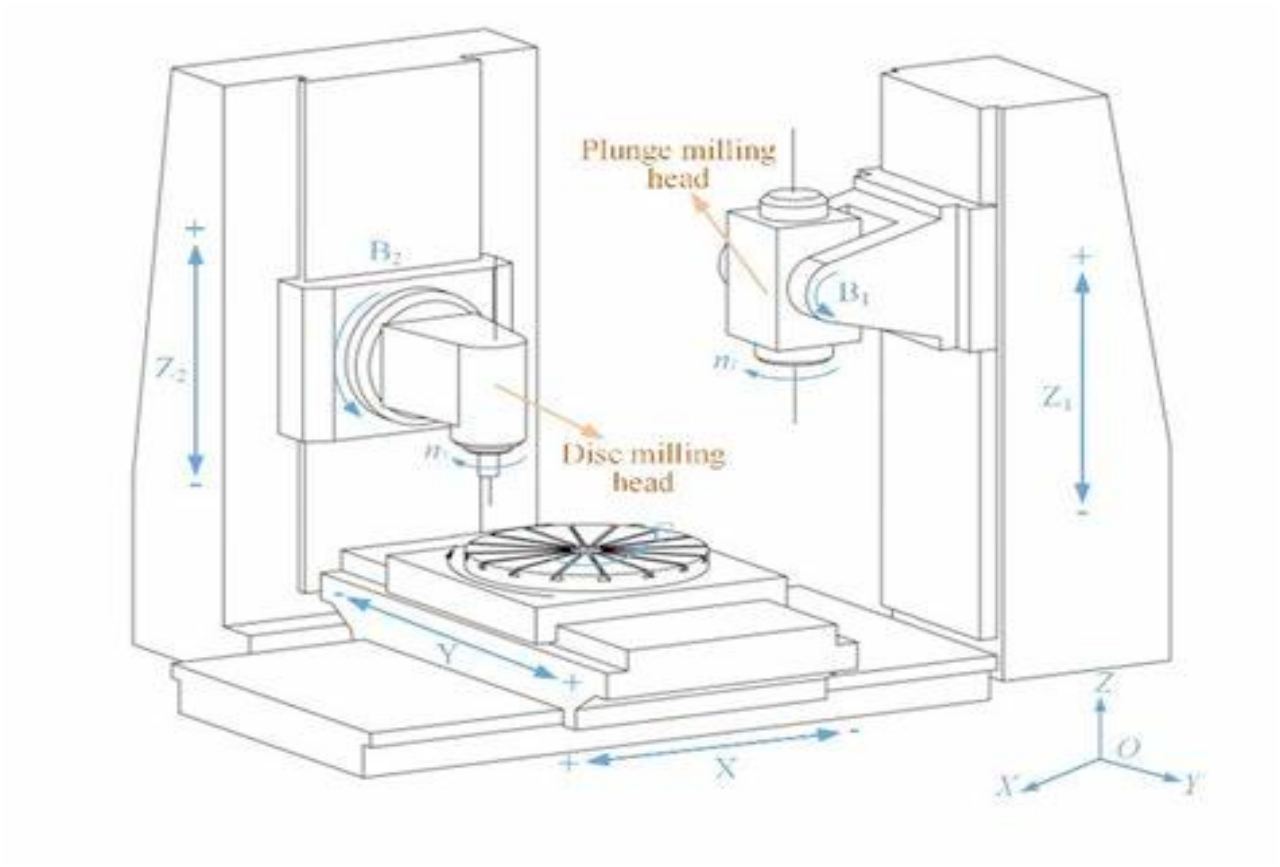

Working Principle

Application & Case

Wind Power Industry: Drilling the end faces of wind turbine hubs and machining the sealing surfaces of flanges.

Petrochemical Equipment: Machining multiple holes on reactor tube sheets and heat exchanger flanges.

Heavy Machinery: Drilling the bases of ship propellers and the gear boxes of mining machinery.

General Manufacturing: Precision milling of large flanges and the support seats of rolling mill roller tables.

Luoyang Newbee Transmission: Reshaping Robotic Joint Cores with Thin-Section Four-Point Contact Ball Bearing Technology

Luoyang Newbee Transmission's Wutai Mountain Journey: Forging Team Spirit, Scaling New Technical Heights

New Bee Transmission:High-Precision Ultra-Thin-Wall Crossed Roller Bearings Empower Humanoid Robot Hip Joint Drive Modules

Newbee Transmission Achieves Technological Breakthrough in Spring-Pretensioned Rolling Mill Bearings

FAQ

Does it support the processing of non - standard hole shapes?

Yes, but special fixtures and tools need to be customized (processing drawings are required)

What is the maintenance cycle of the high - pressure internal cooling system?

It is recommended to replace the coolant filter element every 500 hours and clean the pipeline every 2000 hours.

Can the maximum processing thickness be extended?

The maximum thickness of the standard model is 300 mm, and that of the customized model can be extended to 500 mm (the Z - axis stroke needs to be adjusted).

What is the after - sales service policy?

It provides 1 year of free warranty, lifetime technical support, and responds to fault reports within 24 hours in China.
