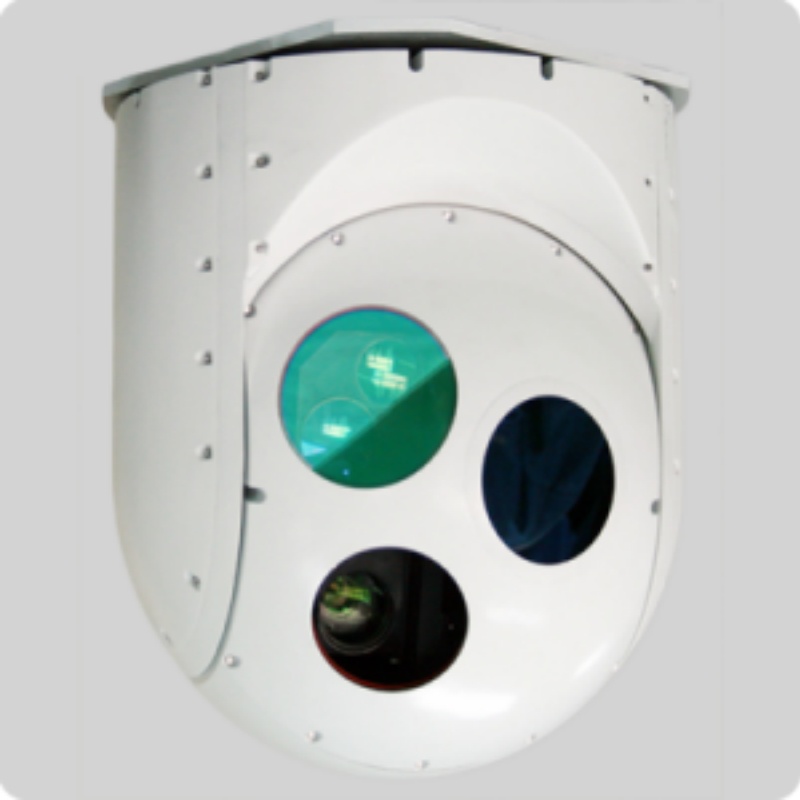

Newbee Transmission's KB/KA series paired thin-wall angular contact ball bearings have been selected for critical stabilization and positioning systems in next-generation aircraft electro-optical pods. These bearings enable precise movement and vibration damping for high-resolution imaging systems operating in extreme aerial environments.
Key Performance Metrics:
Parameter | Value Range |
OD Tolerance | 0 to -0.01mm |
ID Tolerance | 0 to -0.01mm |
Contact Angle | 30°±2° |
Starting Torque | 0.009-0.035 N·m |
Dynamic Load (Cr) | 3.31-6.43 kN |
Static Load (Cor) | 8.54-25.7 kN |
Radial runout: ≤0.0076mm
Axial runout: ≤0.01mm
Height consistency: ±0.2mm
Matched sets with ≤0.003mm OD/ID mutual difference
Contact angle variation: ≤1.5° between pairs
Passes GJB150A certification for:
•High/low temperature cycling (-55°C to +125°C)
•Vibration testing (5-2000Hz)
•Shock resistance (16g, 20ms half-sine)
✓ Material certifications per AMS 6444
✓ Surface finish: Ra ≤0.2μm (no scratches/oxidation)
✓ 100% dimensional verification
✓ Starting torque testing under controlled conditions
D913/D902 precision measuring stations (0.001mm resolution)
X293A runout testers
Custom torque measurement fixtures
• Engineering consultation for bearing selection
• Custom preloading for specific stiffness requirements
• Failure analysis and performance optimization
