How Thin Section Four Point Contact Ball Bearings Are Applied in UAV photoelectric stabilization pods?

What are Thin Section Four Point Contact Ball Bearings?

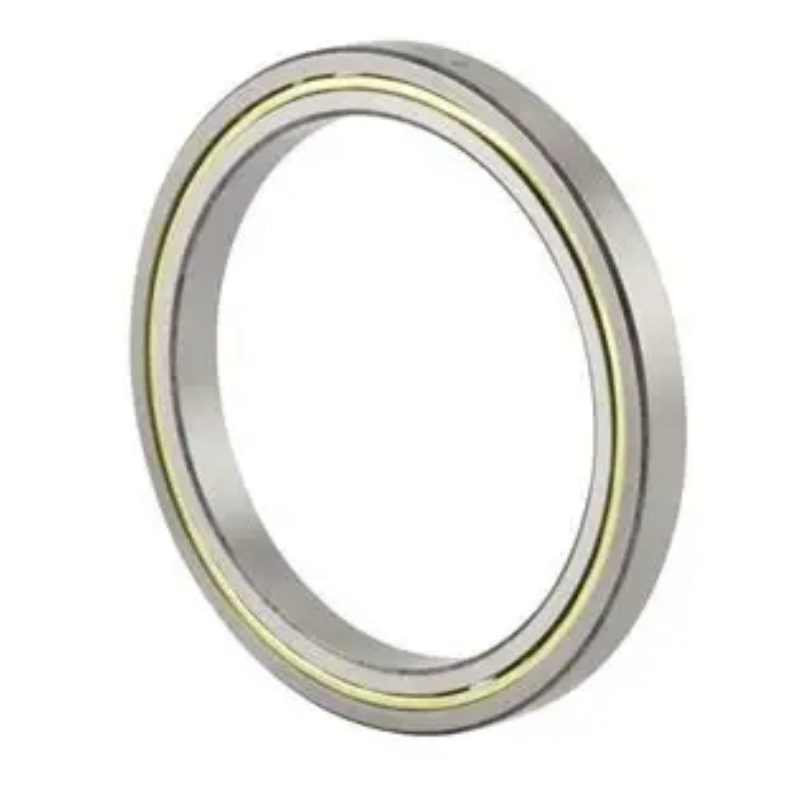

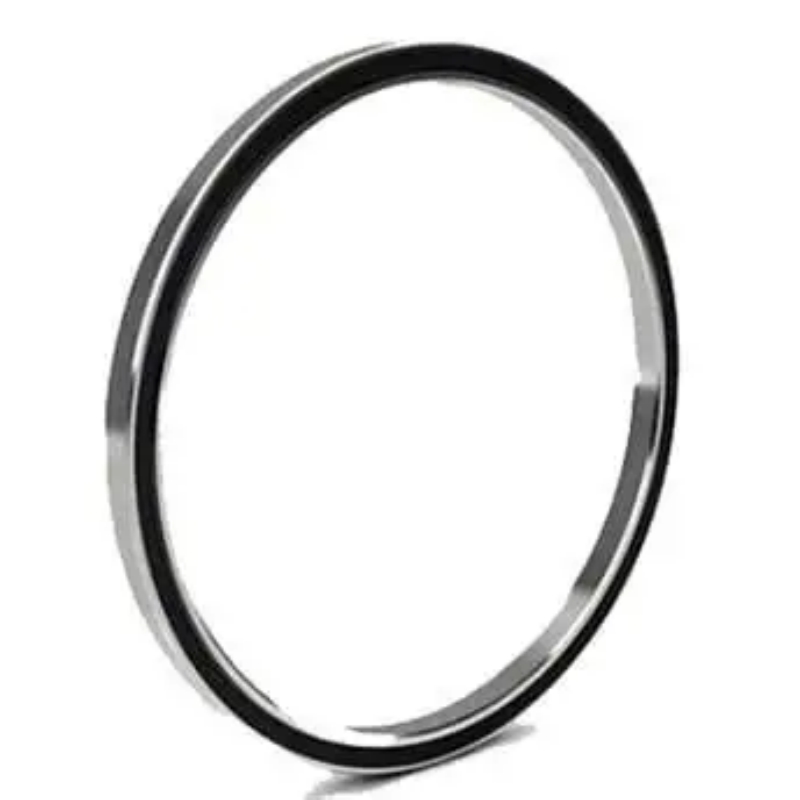

Thin section four-point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are UAV photoelectric stabilization pods?

UAV photoelectric stabilization pods,also known as gimbal camera pods,are lightweight multi-axis stabilized optical payloads mounted underneath industrial,survey,military and security UAVs.Equipped with visible light cameras,infrared thermal imagers,laser rangefinders and high-precision MEMS inertial sensors,they rely on two-axis or three-axis rotary gimbal structures to counteract drone vibration,air turbulence and flight attitude changes in real time,locking optical lenses on fixed targets for long-distance surveillance,aerial mapping,power line inspection,emergency rescue and border patrol missions.The internal space of UAV photoelectric pods is extremely limited,and the whole system pursues ultra-lightweight design because every gram of extra weight directly reduces flight endurance.The rotary gimbal bearings bear multiple composite loads continuously during flight:optical module self-weight radial load,vertical and horizontal axial tension,alternating overturning moment generated by rapid azimuth and pitch rotation,plus high-frequency vibration from drone rotors and air turbulence.UAV pods demand ultra-low rotational friction torque,micron-level angular stabilization accuracy,tiny rotational inertia,wide temperature resistance and dust-proof & anti-humidity performance.Any bearing clearance,rotation jitter or micro deformation will cause picture shake,target tracking loss and invalid aerial data,which seriously reduces the operational value of UAV missions.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore diameter,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.

Semiconductor Manufacturing Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers,photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

The Importance of Thin Section Four Point Contact Ball Bearings in UAV photoelectric stabilization pods

Constant Ultra-Thin Cross-Section Reduces Pod Size & Flight Load:UAV photoelectric pods adopt miniaturized integrated shell structures to cut overall payload weight.Thin section four point contact ball bearings keep uniform thin cross-sections regardless of inner diameter,occupying far less radial and axial installation space than matched angular contact bearing groups.The lightweight bearing structure greatly lowers total pod weight,reduces UAV power consumption and extends effective flight duration,perfectly matching the lightweight design core demand of drone optical payloads.

Single Bearing Bears Full Composite Flight Loads:One thin four-point contact bearing can replace two sets of paired angular contact bearings.It independently bears optical equipment radial weight,bidirectional axial force during pitch/azimuth rotation,and large alternating overturning moment caused by rapid target tracking.It simplifies the multi-axis gimbal mechanical transmission structure,reduces the number of assembly parts,shrinks pod internal layout volume and lowers UAV payload development and manufacturing costs.

Preloaded Zero Clearance Rigidity Eliminates Image Shake:Internal preload design removes bearing internal clearance and delivers powerful anti-tilting rigidity.When the UAV encounters airflow turbulence or high-speed flight vibration,the bearing restrains micro angular deflection and rotation jitter of the optical lens.It maintains ultra-stable micron-level tracking precision,avoids image blurring and target loss,and ensures clear,continuous aerial photography and monitoring footage.

Ultra-Low Inertia & Low Torque Real-Time Target Tracking:Thin-section inner and outer rings and tiny steel balls cut bearing rotary inertia to the minimum.The bearing runs with stable tiny friction torque without torque fluctuation during fast forward/reverse rotation,allowing the pod gimbal to respond instantly to inertial sensor correction signals and realize high-speed,real-time target locking for aerial inspection and search missions.

Custom Aerospace Materials Adapt Complex Flight Environments:Custom low-outgassing aviation grease prevents fogging of optical lenses inside sealed pods; 9Cr18 stainless steel thin bearings resist high altitude humidity,rain and salt fog for maritime patrol UAVs.J-type double rubber sealing structures block fine dust and sand particles in low-altitude flight,protecting precision optical components and extending pod service life in all-weather operations.

Excellent Anti-Vibration & Fatigue Performance for Long Flight Missions:Super-finished high-hardness raceways possess outstanding anti-fatigue and anti-vibration capacity,adapting long-hour continuous flight and frequent gimbal reciprocating rotation of industrial and reconnaissance UAVs.Low wear reduces maintenance intervals,minimizes ground inspection downtime and improves UAV all-day mission efficiency.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for UAV photoelectric stabilization pods and other aerial gimbal,aerospace optical tracking equipment.

UAV Gimbal Customization:Supply lightweight low-inertia thin bearings with low-outgassing aviation lubricant,stainless steel and enhanced wide-temperature dust seals; customized prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of dimensional tolerance,rotational torque and runout before shipment.

Global Fast Shipment:Mass stock of standard KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and relevant national precision bearing standards,and SGS test reports can be provided upon request.
