How Thin Section Four Point Contact Ball Bearings Are Applied in OLED panel alignment rotary stages?

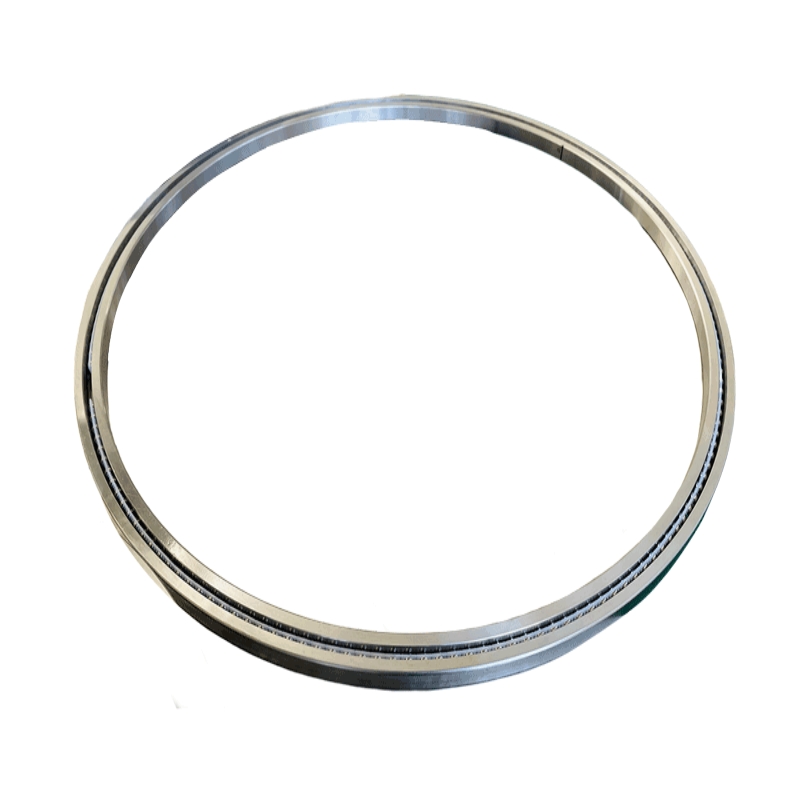

What are Thin Section Four Point Contact Ball Bearings?

Thin section four-point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are OLED panel alignment rotary stages?

OLED panel alignment rotary stages are core ultra-precision rotary positioning components installed inside OLED manufacturing cleanroom equipment,including exposure machines,OCA laminators,polarizer attaching equipment,and post-process optical inspection machines.Driven by high-precision servo motors and CCD vision positioning systems,these rotary platforms carry OLED glass substrates,flexible panels,masks and optical films to perform micro-angle rotary correction,multi-angle optical calibration and precise lamination alignment.They realize micron/nanometer-level matching between panel layers,polarizing films and exposure masks to eliminate alignment deviation,avoid light leakage,color difference and pixel defects on finished OLED screens.OLED production workshops adopt Class 1–10 ultra-clean dust-free environments with strict control of micro-particles,volatile organic compounds and vibration interference.The internal installation space of alignment stages is extremely compact and limited.The rotary bearings on the stage need to bear multiple composite loads during long-cycle repeated indexing:radial weight of glass substrates and fixtures,alternating bidirectional axial tension during fine rotation,and eccentric overturning moment caused by asymmetric placement of large-size panels.OLED panel manufacturing imposes extremely strict requirements on rotary bearings:nanoscale angular repeat positioning accuracy,zero particle shedding,low-outgassing lubrication,ultra-low rotational jitter,low rotary inertia and excellent vibration suppression performance.Any bearing clearance,micro-shake,grease volatilization or metal abrasive particles will lead to panel alignment offset,product yield drop and mass production loss.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore diameter,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.

Semiconductor Manufacturing Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers (CMP),and photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

The Importance of Thin Section Four Point Contact Ball Bearings in OLED panel alignment rotary stages

Ultra-Thin Fixed Cross-Section Matches Compact Cleanroom Stage Layout:OLED alignment rotary stages are integrated with multiple sets of CCD cameras,optical light sources and vacuum adsorption fixtures,leaving very narrow internal installation space for rotary support parts.Thin section four point contact ball bearings retain consistent slim cross-section regardless of inner diameter,far thinner and lighter than dual matched angular contact bearing combinations.They greatly reduce the overall thickness of the rotary platform,save valuable space for optical path components,and meet the miniaturized structural design requirements of high-generation OLED production equipment.

Single Bearing Integrates All Panel Composite Loads:One thin four-point contact bearing can replace two groups of paired angular contact bearings.It independently bears radial load of OLED glass panels and fixtures,bidirectional axial force generated by micro-angle rotation,and eccentric overturning moment from uneven placement of large-size substrates.The integrated single-bearing structure simplifies the stage rotary transmission system,reduces the number of precision mating parts,shortens equipment assembly cycles,and lowers the R&D and manufacturing costs of OLED front-end and back-end processing equipment.

Preloaded Zero-Clearance High Rigidity Eliminates Alignment Deviation:Internal preload design thoroughly eliminates bearing internal clearance and delivers powerful anti-tilting rigidity.During micron-level rotary fine-tuning for panel lamination and exposure,the bearing restrains tiny rotational deflection and micro-vibration,maintaining ultra-stable nanometer-level repeat positioning accuracy.It effectively avoids mask-pixel misalignment and film lamination offset,drastically reducing defective OLED panels and boosting production yield.

Low-Outgassing & Particle-Free Performance Fits Ultra-Clean Fab Environment:Custom low-outgassing vacuum clean lubricants are optional for these bearings,which release almost no volatile substances that would contaminate OLED glass and optical films.Sealed J-type rubber isolation structures block metal micro-abrasive particles produced during bearing operation,fully complying with Class 10 ultra-clean workshop standards and preventing particle-induced screen dead pixels and stains.

Ultra-Low Inertia Realizes Fast Panel Calibration Response:Thin-section inner and outer rings and miniature steel balls minimize the bearing’s rotational inertia.The alignment stage can complete rapid forward and reverse micro-angle correction without motion lag,shortening optical alignment cycle time and improving the throughput efficiency of OLED mass production lines.

Outstanding Anti-Fatigue Performance Supports Long Continuous Production:Super-hard super-finished raceways and rolling elements feature excellent anti-fatigue and anti-wear properties,adapting 24-hour uninterrupted high-frequency rotary correction of OLED alignment equipment.Long maintenance intervals for lubrication reduce production line downtime caused by bearing replacement and optical path recalibration,ensuring stable continuous operation of panel manufacturing equipment.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for OLED panel alignment rotary stages and other flat panel display ultra-clean precision rotary equipment.

FPD Industry Customization:Supply low-outgassing clean-grade stainless steel thin bearings with full particle-proof rubber seals; customized cleanroom prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of rotational torque,particle emission and outgassing indicators before shipment.

Global Fast Shipment:Mass stock of KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and flat panel display cleanroom equipment bearing industry standards,and SGS test reports can be provided upon request.

For technical specifications,pricing,or custom bearing solutions:

Email:paul@newbeetrans.com

Website:www.newbeetrans.com
