How Thin Section Four Point Contact Ball Bearings Are Applied in Lithography machine optical adjustment turntables?

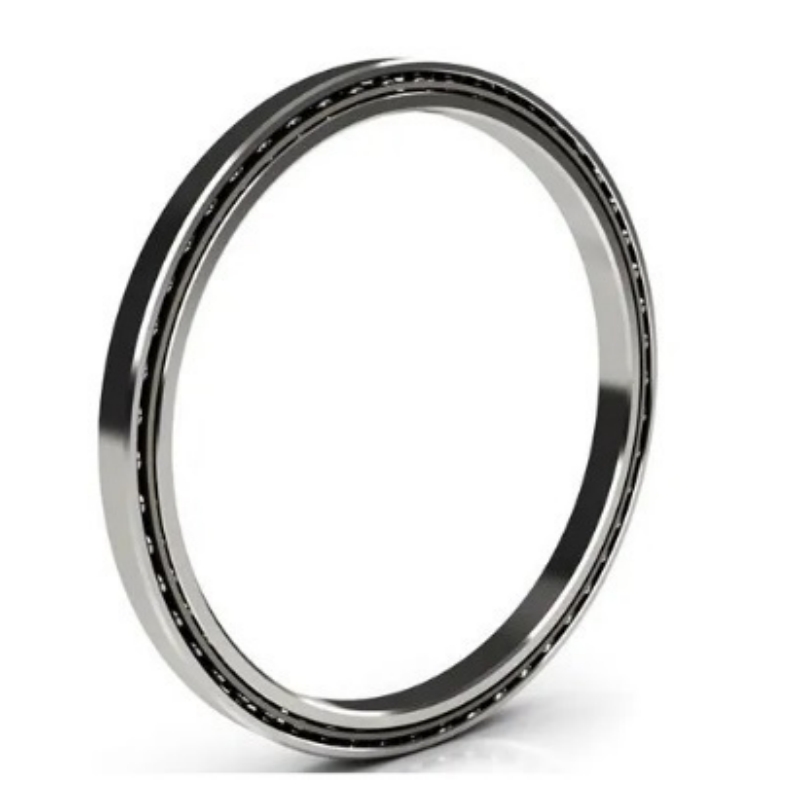

What are Thin Section Four Point Contact Ball Bearings?

Thin section four-point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are Lithography machine optical adjustment turntables?

Lithography machine optical adjustment turntables are ultra-precision rotary positioning components integrated into the optical path system of semiconductor lithography equipment,including EUV,DUV and mask aligner exposure machines.These multi-angle rotary platforms carry optical lenses,beam splitters,phase shift masks,laser calibration modules and high-precision optical detectors.They perform micro-angle rotation,fine tilting and continuous indexing adjustment to calibrate light beam parallelism,focal length and imaging distortion,realizing nanoscale lithography pattern transfer on silicon wafers.The optical cabin of lithography machines adopts ultra-clean vacuum or Class 1 cleanroom environment with extremely narrow internal layout space.The turntable bearings bear multiple complex loads during long-cycle high-frequency adjustment:radial self-weight of optical components,alternating bidirectional axial stress from fine tuning,and eccentric overturning moment caused by asymmetric lens installation.Semiconductor lithography puts forward extremely strict standards for rotary bearings:nanoscale angular repeatability,ultra-low particle generation,low-outgassing vacuum lubrication,zero rotation jitter,tiny rotary inertia and high rigidity.Any bearing clearance,micro-vibration,volatile grease or abrasive particles will lead to optical aberration,wafer pattern offset and mass chip scrapping,directly affecting the yield of advanced semiconductor manufacturing.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore diameter,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.

Semiconductor Manufacturing Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers (CMP),and photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

The Importance of Thin Section Four Point Contact Ball Bearings in Lithography machine optical adjustment turntables

Ultra-Thin Uniform Cross-Section Fits Compact Optical Cabin Layout:Lithography optical cabins are designed with highly integrated narrow optical channels,leaving limited installation space for adjustment turntables.Thin section four point contact ball bearings maintain fixed slim cross-section regardless of inner diameter,far thinner and lighter than matched dual angular contact bearing groups.They greatly reduce the overall thickness and weight of the optical turntable,reserve enough layout space for optical paths,sensors and servo drive parts,and satisfy the miniaturized light path design of advanced lithography equipment.

Single Bearing Integrates All Optical Component Composite Loads:One thin four-point contact bearing can replace two groups of paired angular contact bearings.It independently bears radial weight of lenses and mask modules,bidirectional axial force generated during micro fine-tuning,and eccentric overturning moment from asymmetric optical element assembly.The integrated bearing structure simplifies the turntable rotary transmission mechanism,reduces the number of matching precision parts,shortens equipment assembly cycles and lowers the R&D cost of lithography optical systems.

Preloaded Zero-Clearance Rigidity Eliminates Optical Distortion:Internal preload completely eliminates bearing internal clearance and provides powerful anti-tilting rigidity.When the optical turntable performs nanoscale micro-angle calibration,the bearing restrains tiny rotational shake and angular deflection,effectively avoiding beam offset and imaging aberration.It maintains ultra-stable nanometer-level positioning precision,ensures uniform exposure patterns on wafers and improves chip production yield.

Low-Outgassing & Particle-Free Performance Meets Vacuum Cleanroom Standards:Custom low-outgassing vacuum special grease is optional for these bearings,which produce almost no volatile pollutants to contaminate optical elements and silicon wafers.Sealed J-type rubber isolation structures block micro metal abrasive dust generated by rolling motion,complying with Class 1 ultra-clean and vacuum environment requirements inside lithography machines,and avoiding cross-contamination of optical components.

Ultra-Low Inertia Realizes Fast Optical Calibration Response:Thin-section inner and outer rings and miniature steel balls greatly reduce rotary inertia of the turntable support shaft.The optical adjustment turntable can complete rapid micro rotation and fine correction without motion lag,shorten beam calibration cycle time and improve the operation efficiency of lithography exposure processes.

Excellent Anti-Fatigue Performance Supports Long-Term Fab Production:Super-hard super-finished raceways and rolling elements feature outstanding anti-fatigue performance,adapting uninterrupted 24-hour high-frequency calibration rotation of lithography optical turntables.Low wear loss extends lubrication maintenance intervals,reduces equipment shutdown frequency for optical path debugging,and guarantees stable continuous mass production of semiconductors.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for lithography machine optical adjustment turntables and other semiconductor ultra-clean precision rotary equipment.

Semiconductor Special Customization:Supply low-outgassing vacuum lubricated,particle-free stainless steel thin bearings with enhanced fully sealed clean structures; customized lithography prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of rotational torque,particle emission and outgassing value before shipment.

Global Fast Shipment:Mass stock of KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and semiconductor cleanroom equipment bearing standards,and SGS test reports can be provided upon request.
