How Thin Section Four Point Contact Ball Bearings Are Applied in Delta parallel robot moving central turrets?

What are Thin Section Four Point Contact Ball Bearings?

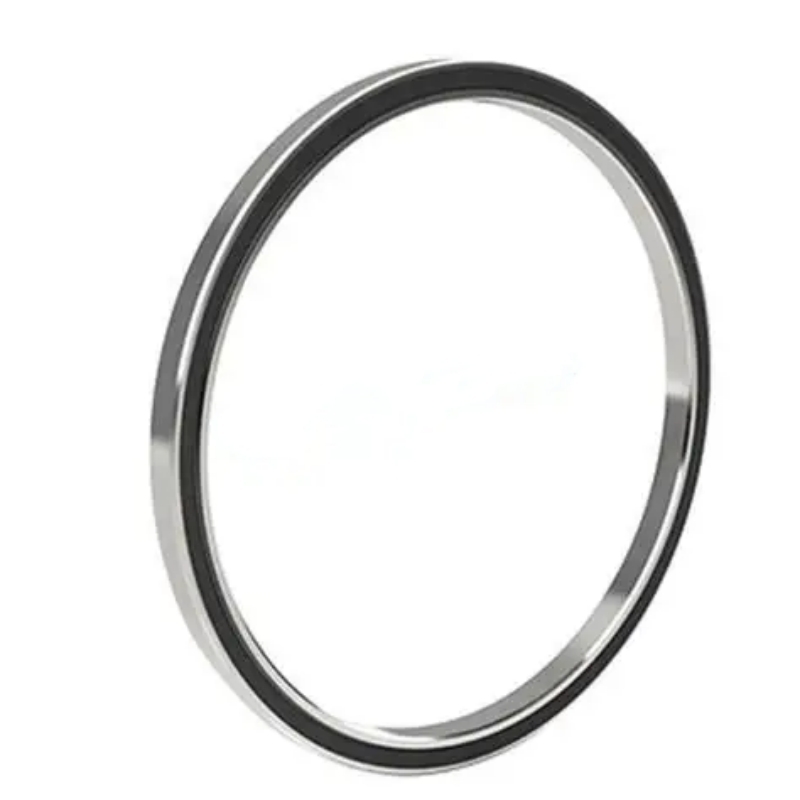

Thin section four-point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7–15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are Delta parallel robot moving central turrets?

Delta parallel robot moving central turrets are the core rotary motion components installed at the bottom center of 4-axis Delta parallel robots,responsible for the 360° rotary positioning of end grippers.Widely used in high-speed sorting,food filling,3C product assembly,pharmaceutical blister packaging and electronic component picking production lines.The central turret is integrated with miniature rotary servo motors,micro reducers and torque feedback sensors in an ultra-narrow confined cavity.During continuous ultra-high-speed reciprocating rotation,frequent acceleration and deceleration and short-cycle picking operations,the central turret bearing bears multiple composite loads including turret self-weight,workpiece radial gravity,bidirectional axial tension and alternating overturning moment generated by offset grabbing.Delta robots pursue ultra-high dynamic response speed and sub-millimeter repeated positioning accuracy,while the production environment is often filled with plastic dust,food powder and tiny workpiece debris.Therefore,the central turret bearing must meet strict standards of light weight,low rotational inertia,stable low torque,excellent dust resistance and long-term fatigue resistance.Any slight bearing shake,clearance change or rotation deviation will directly lead to grabbing dislocation,material dropping and low production yield of high-speed Delta automation lines.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore diameter,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.Semiconductor Manufacturing Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers (CMP),photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments.

The Importance of Thin Section Four Point Contact Ball Bearings in Delta parallel robot moving central turrets

Ultra-Thin Constant Cross-Section Fits Narrow Central Turret Cavity Delta robot central turret has extremely limited internal installation space.The uniform thin cross-section design of thin section four point contact ball bearings occupies far less axial and radial space than traditional bearing combinations.It perfectly matches the miniaturized turret shell structure,avoids overly bulky rotary assemblies that restrict the robot's working stroke,and effectively optimizes the overall compact layout of Delta parallel robots.

Single Bearing Replaces Double Angular Contact Bearings for Composite Loads:One thin section four point contact bearing independently bears radial turret weight,bidirectional axial pulling force and offset grabbing overturning moment,replacing two sets of matched angular contact ball bearings.It simplifies the turret internal transmission structure,reduces the number of fitting parts,lowers assembly difficulty and shortens Delta robot prototype production and mass assembly cycles.

Low Rotational Inertia Realizes Ultra-High-Speed Delta Operation:Lightweight thin-section inner and outer rings and small-diameter steel balls greatly cut rotary inertia of the central turret.The bearing delivers ultra-stable low friction torque during frequent acceleration and deceleration,supporting Delta robots to complete thousands of picking cycles per minute without rotation lag,significantly boosting production line sorting and packaging efficiency.

High Preloaded Rigidity Ensures Sub-Millimeter Position Accuracy:Preload-eliminated internal clearance and high structural rigidity suppress micro-vibration generated during high-speed reciprocating rotation.No turret tilt or angular offset occurs when grabbing offset workpieces,maintaining consistent repeated positioning precision of Delta grippers and lowering defective product rate for high-speed automated lines.

Multiple Sealing & Material Options Adapt Production Workshop Conditions:J-type fully sealed thin bearings block food powder,plastic dust and tiny electronic fragments from entering the raceway; 9Cr18 stainless steel customized versions are available for pharmaceutical and food-grade Delta equipment to resist water mist and cleaning agent splashing,extending bearing service life and reducing robot downtime.

Excellent Fatigue Performance Reduces Long-Term Maintenance:Precision super-finished raceways and high-hardness steel balls feature outstanding anti-fatigue performance,adapting 24-hour non-stop high-cycle rotation of Delta central turrets.Low wear loss lengthens lubrication and replacement intervals,cutting post-maintenance labor and spare part costs for automated factories.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section four point contact ball bearings.We develop customized bearing solutions exclusively for Delta parallel robot moving central turrets,as well as slim rotary automation equipment.

Delta Robot Dedicated Customization:Supply lightweight,low-inertia thin bearings with anti-dust J seals,food-grade clean grease or stainless steel materials as requested; customized prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of dimensional tolerance,rotational torque and runout before shipment.

Global Fast Shipment:Mass stock of standard KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and relevant national precision bearing standards,and SGS test reports can be provided upon request.
