How Thin Section Bearings Are Applied in Optical Devices?

What Are Thin Section Bearings?

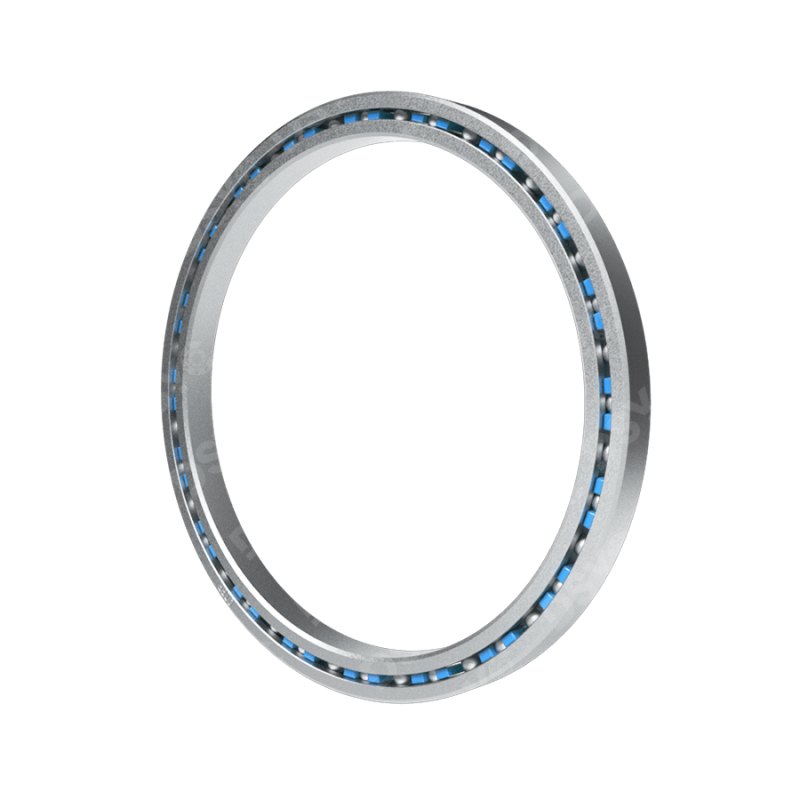

The thin-section bearing is a type of bearing that has achieved an extremely thin bearing cross-section as well as miniaturized and lightweight designs.NewBeetrans is a professional thin section bearings manufacturer,we provide deep groove ball bearings,angular contact bearings and four-point contact ball bearings.There are three types of thin-section bearings: deep groove ball bearings, angular contact ball bearings, and four point contact ball bearings.

NewBeeTrans mainly produces and manufactures various standard and customized thin-section bearings,with bearing inner diameters ranging from 10 millimeters to 1000 millimeters.The precision of thin-section bearings ranges from ABEC1 to ABEC7.They are widely used in optoelectronic systems,aerospace,semiconductor equipment,medical machinery,and robots.

What Are Optical Devices?

Optical devices refer to precision instruments and equipment that utilize light propagation,refraction,and reflection to achieve functions such as imaging,measurement,scanning,and signal transmission.Core applications include telescope mounts,laser scanning systems,measuring instruments,surveillance equipment,and various optical detection devices-all of which rely on stable,precise motion control to ensure high-resolution imaging and accurate data collection.Optical devices have extremely stringent requirements for their rotating components:ultra-high rotational precision to avoid image distortion,low vibration to maintain signal stability,compact structure to fit limited internal space,low particle emission to keep optical paths clean,and long-term reliability to ensure consistent performance in complex working environments.Even the slightest deviation or vibration in rotating parts can significantly affect the resolution,imaging quality,and measurement accuracy of optical devices.

The Importance of Thin Section Bearings in Optical Devices

Thin section bearings are critical rotating components in optical devices,directly determining the performance,stability,and accuracy of the equipment.Their unique advantages make them indispensable in this field:

Precision Positioning for High-Resolution Imaging:With precision grades up to ABEC 5 and ABEC 7,combined with precision-ground raceways and optimized rolling element geometry,thin section bearings provide ultra-stable and accurate rotational support.This ensures that optical components maintain precise positioning during operation,effectively avoiding image blurring or measurement errors caused by rotational deviation-critical for telescope mounts and laser scanning systems.

Space Optimization for Compact Design:The cross-section of thin section bearings is up to 75% thinner than that of standard bearings of comparable diameter,perfectly adapting to the compact and integrated design of optical devices.Their small size allows them to be installed in limited internal spaces of precision instruments,without compromising the overall structure or functionality of the equipment.

Low Vibration and Smooth Operation:Thin section bearings feature low friction and excellent anti-vibration performance,minimizing mechanical vibration during operation.This is essential for optical devices,as even slight vibration can disrupt light paths,degrade imaging quality,and affect measurement accuracy-especially in high-precision measuring instruments and surveillance equipment.

Lightweight Design for Portability:By minimizing material usage while maintaining structural integrity,thin section bearings reduce the overall weight of optical devices.This is particularly beneficial for portable optical instruments,enhancing their mobility and ease of use without sacrificing load capacity or rigidity.

Clean and Low-Pollution Operation:These bearings are engineered to help maintain cleanliness and control contamination,with low particle emission during operation.This meets the strict clean requirements of optical devices,ensuring that optical paths remain unobstructed and imaging quality is not compromised.

Versatile Adaptability to Diverse Scenarios:Available in deep groove,angular contact,and four-point contact configurations,thin section bearings can accommodate radial loads,combined loads,and moment loads-making them suitable for various optical device structures,from telescope rotation mechanisms to laser scanner gantries.

Manufacturer of Thin Section Bearings

Newbeetrans is a trusted professional manufacturer of thin section bearings,offering mature,customized solutions specifically tailored to the optical device industry.With advanced technical capabilities and strict quality control,Newbeetrans stands out as a reliable partner for optical device manufacturers worldwide:

Professional Design and Customization:Capability Newbeetrans boasts a team of over 30 senior engineers,well-versed in international standards such as ISO,DIN,and JIS.Leveraging CAD/CAE assisted design,the team can rapidly generate 3D models and conduct simulation analysis to optimize bearing designs for optical device scenarios.The customization process includes in-depth communication about application requirements ,with sample design completed within 15 days.A strict confidentiality agreement ensures the safety of clients'drawings and patents.

Advanced Precision Manufacturing:Equipped with fully automatic CNC machine tools,high-precision grinding equipment,and heat-treatment production lines,Newbeetrans adopts precision cold ring rolling and super-fine grinding processes to achieve P5/P4 level tolerance-meeting the ultra-high precision requirements of optical devices.With a monthly production capacity exceeding 2 million sets,the company can flexibly respond to both small-batch trial production and large-volume orders,with a regular delivery cycle of 30 days.

Stringent Quality Assurance:Full-process quality control is implemented from raw material verification to finished product inspection:raw materials are double-verified using spectral analyzers and metallographic microscopes;key dimensions are monitored online with profilometers and roundness testers;and 100% full inspection is conducted for noise level,vibration value,and service life.Newbeetrans has passed ISO 9001 and GB/T 307.1 certifications,and can provide SGS third-party inspection reports to meet global market access requirements.

Efficient Global Logistics and Service:The company cooperates with international logistics providers such as DHL and FedEx,offering flexible trade terms including FOB,CIF,and DDP.With overseas warehouses established in Europe and North America,orders can be delivered within 7–10 days.
