How Ultra Slim Bearings Used in Humanoid Robot?

What are Precision Ultra Slim Bearings?

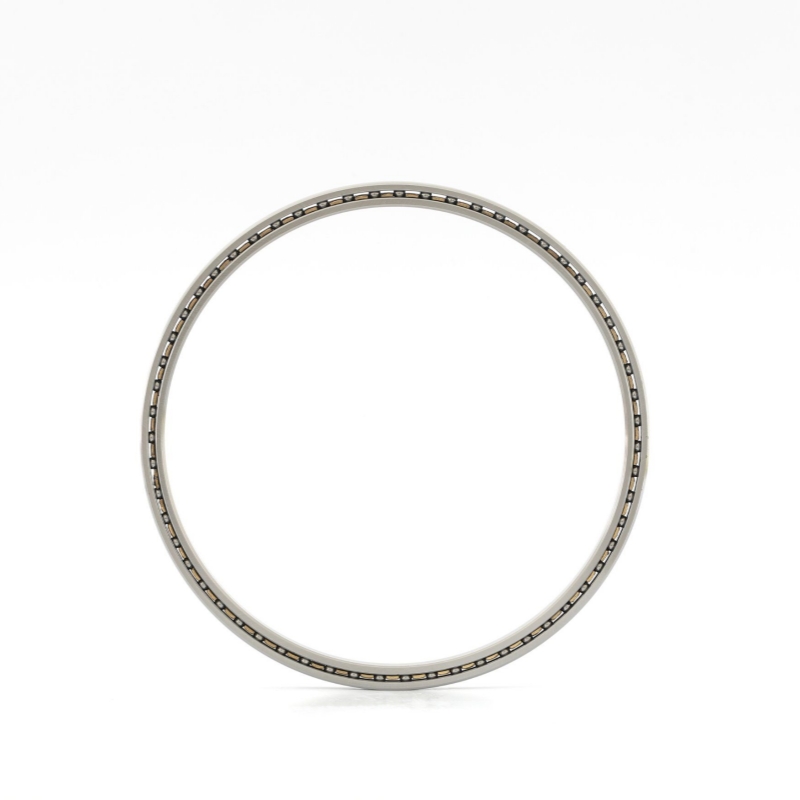

Ultra Slim thin section bearings are precision thin-wall bearing products,core mainstream models include S03503,S05003,S06003 with identical ultra-narrow cross-section dimension.Three internal structures are available:Type A 30° angular contact,Type C radial contact and Type X four-point contact.A single bearing can bear radial load,axial load and overturning moment simultaneously.Precision grades cover ABEC3,ABEC5,optional P4 and P2 high precision.Rings are made of SUS440C stainless steel for corrosion resistance or GCr15 high-carbon chrome steel;nylon 66 serves as bearing retainer material.Two sealing options are supplied:open type for clean indoor environment and UU rubber contact seal against dust and liquid splashing with special low-torque lubricating grease.Standard bearing sizes are stocked for prompt delivery,while non-standard customized items can be completed within 7–18 working days based on actual application requirements.

What are Core Joints of Humanoid Robots?

Humanoid robot joints including shoulder,elbow,wrist,hip,knee,neck and finger joints are core rotary execution components of bionic humanoid robots,widely applied in service companion robots,industrial inspection humanoid robots,medical rehabilitation exoskeleton robots and bionic research equipment.These joints bear complex alternating dynamic loads such as self-weight of connecting rods,end grasping payload and frequent start-stop impact load during walking and swinging.Limited internal installation space caused by built-in servo motors,harmonic reducers and wiring harness brings big challenges for conventional thick bearings.Besides,indoor dust,sweat moisture in medical scenarios put strict requirements on bearing volume,weight,precision and environmental adaptability.Compact structure,low weight and stable rotary performance of ultra slim bearings directly determine bionic movement accuracy and long-term running reliability of humanoid robots.

The Features of Ultra Slim Bearings

Ultra-Thin and Lightweight Structure:Fixed small cross-section greatly reduces bearing weight and occupied space,effectively lower the overall weight of robot limbs and reduce motion inertia.

Multi-Directional Combined Load Capacity:Thanks to special internal contact design,single ultra slim bearing bears multi-direction loads to replace multiple ordinary bearings and simplify joint mechanical layout.

Adjustable Preload for High Rigidity & Precision:Preload setting eliminates internal clearance,achieving high rotational precision and strong anti-deformation capability under varying loads.

Stable Low-Torque Rotation:Isolation retainers fix rolling elements to avoid skewing,minimize friction and ensure smooth,low-resistance rotation for delicate bionic actions.

Multiple Customization Options on Material and Sealing:Stainless steel material and diversified sealing structures can be selected to adapt dusty,humid and special harsh working conditions with customized grease options.

The applications of Ultra Slim Bearings

Humanoid Robotics & Bionic Equipment S03503 for small finger joints and miniature wrist joints;S05003 for elbow and neck rotary joints;S06003 for shoulder and hip large joints;all used for accurate bionic limb rotation control.

Medical Rehabilitation Equipment:Adopted on rehabilitation exoskeleton joints and minimally invasive surgical robotic rotating parts.

Semiconductor Precision Automation:Used for miniature rotating units of wafer handling and micro pick-and-place equipment.

Optical Testing Instruments:Applied on bionic eye tracking equipment and small radar rotary supports.

The Importance of Ultra Slim Bearings in Humanoid Robot Joints Ultra-Slim Size Solves Narrow Installation Trouble

The ultra-small outline of S03503,S05003,S06003 fits tightly inside preassembled shafts with reducers and motors without disassembling existing transmission parts,shortening assembly cycle and cutting production cost.

Single Bearing Design Reduces Robot Dead Weight:One ultra slim bearing replaces several regular bearings to undertake compound loads,simplifying joint structure and lowering limb weight to save robot power consumption.

High Rigidity Suppresses Vibration and Position Deviation:Excellent structural rigidity offsets deformation caused by walking impact and instant payload change,preventing joint shake and object dropping during grasping operation.

High Precision Ensures Fine Bionic Motion:P4/P2 high precision minimizes rotary runout,maintaining consistent repeated positioning accuracy for delicate finger grabbing and stable robot gait movement.

Diversified Sealing & Material for Various Working Conditions:UU rubber seal prevents dust and sweat contamination;customized SUS440C full stainless steel bearings realize corrosion resistance for damp application environments.

Superior Wear Resistance Lower Maintenance Cost:Superfinished raceway improves fatigue resistance to support 24-hour continuous robot operation,reducing equipment downtime and improving overall operating efficiency.

Manufacturer of Precision Ultra Slim Bearings

Newbeetrans is a professional ultra slim thin bearing manufacturer,providing customized S03503/S05003/S06003 bearing solutions tailored for humanoid robot joints and various precision lightweight machinery.

Robot-Oriented Customization:Custom zero-backlash preloaded bearings,exclusive dustproof structure,special medical/low-temperature grease and full stainless steel products as required;customized samples available within 10–15 working days.

Precision Manufacturing Process:Superfine grinding for all raceways and rolling elements to reach ABEC5/P4/P2 precision grade with full inspection on critical dimensions;monthly production capacity over 1.8 million sets.

Fast Global Delivery:Standard in-stock ultra slim bearing models can be shipped rapidly with global multi-channel logistics service for international clients.

Authoritative Quality Certification:Products comply with ISO 9001 and GB/T 307.1 bearing standards,and SGS official inspection reports can be provided upon request.
