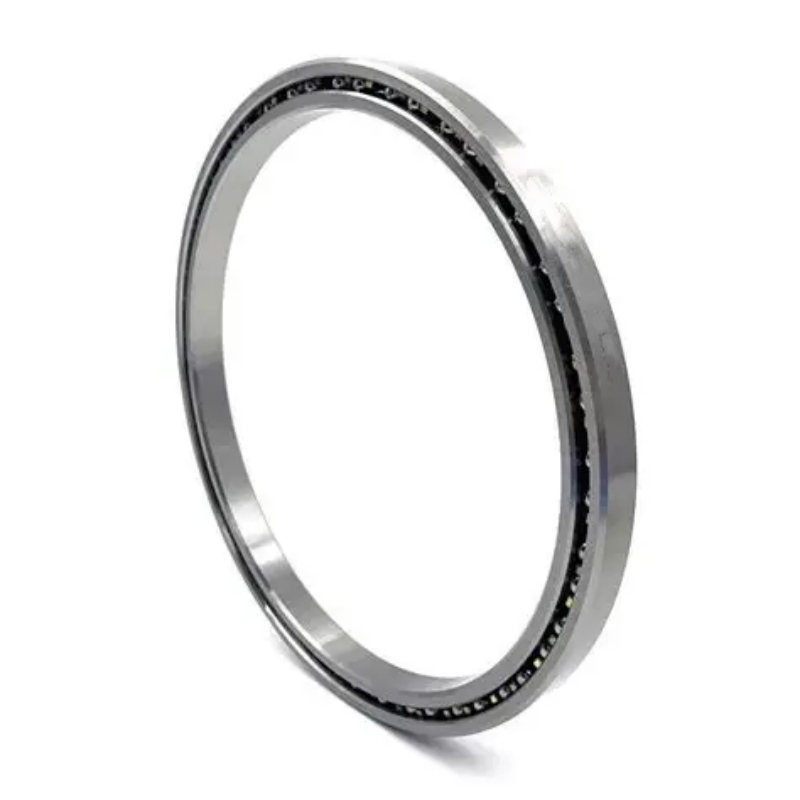

How Thin Section Angular Contact Ball Bearings Are Applied in Fixed-wing aircraft?

What are Thin Section Angular Contact Ball Bearings?

Type-A thin-section angular contact ball bearings are ultra-slim constant cross-section rotary components with inclined raceways forming fixed contact angles (15°,25°,40° customizable).They are specially engineered to bear combined radial and unidirectional axial loads simultaneously,perfect for compact,lightweight,high-precision limited-space equipment.

Core Technical Specifications

Contact Angle Options:15°,25°,40° for different thrust load demands.Size Range:Inner diameter 25.4–508mm,constant cross-section 10×10–15×15mm.Materials:Rings & rolling elements (52100 bearing steel,440C/316 stainless steel,ceramic hybrid);Cages (nylon,brass,stainless steel) Precision Grades:ABEC-1/3/5 (P0,P6,P5) aerospace ultra-precision standards Sealing & Lubrication:Open,shielded,fully sealed structures;standard aerospace anti-oxidation grease,vacuum low-outgassing solid lubricants for high-altitude low-pressure environments Operating Temperature:-40℃ ~ 120℃,customized extreme low-temperature lubricant for high-altitude cruise Lead Time:Standard models ship within 5–15 working days;aerospace customized preloaded bearings with special coatings require negotiated delivery schedules.

What are Fixed-wing aircraft?

Fixed-wing aircraft are manned/unmanned aviation vehicles that generate lift via fixed rigid wings,including civil passenger jets,cargo transport planes,military fighter jets,bombers,trainer aircraft,aerial survey UAVs and special mission fixed-wing platforms.All fixed-wing aircraft rely on dozens of precision rotary actuation systems to complete flight attitude adjustment,takeoff & landing,airborne mission execution.Core rotary assemblies include aileron actuators,elevator & rudder swing mechanisms,flap/slat retraction units,landing gear steering & lock joints,airborne optical pod gimbals,engine auxiliary transmission shafts and radar antenna rotary bases.Aerospace working conditions are extremely harsh:high-altitude low air pressure,drastic temperature difference between sky and ground,strong vibration during takeoff/turbulence,alternating impact loads from airflow and maneuvering flight.Ordinary standard bearings have excessive volume,heavy weight,poor anti-fatigue performance and large rotation clearance.Once deformed or stuck,it will directly cause flight control failure and serious flight safety risks.Therefore,fixed-wing aircraft flight control and airborne precision rotary systems must adopt thin section angular contact ball bearings with ultra-light weight,high rigidity and micron-level rotation accuracy.

The features of Thin Section Angular Contact Ball Bearings

Constant Cross-Section Design

Space & Weight Saving:Unlike standard ISO series bearings—where cross-sectional height increases as bore size increases—thin section bearings maintain a fixed, extremely narrow cross-section regardless of the shaft diameter.

Compact Footprint:This constant geometry drastically reduces envelope dimensions, overall assembly weight, and rotational inertia without sacrificing shaft diameter size.

High Axial (Thrust) Load Handling in One Direction

Contact Angle Geometry:The inner and outer ring raceways are displaced relative to each other along the bearing axis, typically creating a 30° or 40° contact angle.

Combined Loads:This geometry enables the bearing to support high thrust (axial) loads in one direction, alongside concurrent radial loads.

Duplex Configurations:To support thrust loads in both directions or to increase system stiffness, these bearings are frequently mounted in duplex pairs—Back-to-Back (DB), Face-to-Face (DF), or Tandem (DT).

Precision & High Rigidity

Preload Capability:Thin section angular contact bearings can be ground for precise preloading (light, medium, or heavy). Preloading removes internal clearance, eliminates backlash, and maximizes rotational stiffness.

Smooth Rotational Accuracy:High-precision manufacturing ensures minimal runout, making them ideal for sensitive positioning systems.

Low Friction & Low Torque

Small Rolling Elements:The smaller ball diameters inherent to thin section profiles reduce centrifugal force and rolling resistance.

High-Speed Efficiency:Lower friction translates to lower heat generation and reduced energy loss, permitting higher operating speeds compared to heavier standard bearings.

The applications of Thin Section Angular Contact Ball Bearings

Robotics and Industrial Automation

Robot Joints & Articulations:Multi-axis robot arms require compact bearings embedded directly into tight joint spaces. Their large bore-to-cross-section ratio allows hollow shafts to pass straight through for internal wiring and pneumatic lines.

Rotary Actuators & Index Tables:Preloaded angular contact configurations eliminate internal clearance and backlash, ensuring precise, repeatable positioning during high-speed, repetitive cycles.

Aerospace, Defense, and Astronomy

Radar Pedestals & Gimbal Systems:Airborne and ground-based radar tracking equipment demand lightweight, high-rigidity bearings capable of withstanding dynamic wind loads and continuous directional slewing.

Optical Tracking & Targeting Pods:Minimizing payload mass is essential for airborne defense optics; thin section bearings shed unnecessary weight while maintaining structural stiffness under high thrust forces.

Medical Imaging and Advanced Equipment

CT Scanners:The massive rotating gantries of computed tomography scanners rely on large-diameter, extremely thin profile bearings to smoothly guide the X-ray tube and detector ring around the patient at high speeds.

Surgical Robotics & C-Arms:High rotational accuracy and zero-play characteristics allow medical positioning systems and surgical arms to operate with sub-millimeter precision.

Semiconductor Manufacturing & Vacuum Equipment

Wafer Handling End-Effectors:Cleanroom automation requires low-friction, lightweight components that reduce energy consumption and particulate generation.

Rotary Vacuum Feedthroughs:Their compact profile fits seamlessly into confined vacuum chamber assemblies where standard-sized bearings would create unacceptable spatial constraints.

The Importance of Thin Section Angular Contact Ball Bearings in Fixed-wing aircraft

Ultra-Light Design Reduces Aircraft Empty Weight & Boost Flight Efficiency:Every gram of aircraft weight directly affects fuel consumption,flight range and payload capacity.Thin section angular contact ball bearings cut bearing weight by over 40% compared to standard equal-bore bearings.Mass weight reduction of all flight control rotary joints lowers overall empty aircraft weight,extends cruising range and improves civil aircraft cargo/passenger carrying capacity while reducing military jet fuel consumption during patrol missions.

Slim Cross-section Fits Confined Aircraft Actuation Cavities:Wings,empennages and fuselage built-in actuator cabins have extremely narrow reserved installation space with dense wiring and hydraulic pipelines.The fixed slim cross-section structure avoids the volume waste of conventional thick bearings,simplifies the layout of flight control hydraulic and electrical systems inside wings,and shortens the structural development cycle of new fixed-wing aircraft.

Preloaded Zero-Clearance Rigidity Ensures Flight Control Precision:During high-speed flight and air turbulence,flight surfaces bear strong aerodynamic alternating loads.Preloaded thin angular contact bearings eliminate rotation clearance,effectively restrain tiny swing of aileron/flap actuation shafts.The consistent low-torque rotation guarantees accurate,rapid response of fly-by-wire control signals,eliminating attitude deviation caused by bearing jitter and fully guaranteeing flight maneuver safety.

Composite Load Resistance Adapts Complex Flight Dynamic Loads:Single bearing independently bears radial self-weight of actuators,unidirectional axial thrust from hydraulic push rods and airflow overturning moments,replacing multiple groups of matched standard bearing combinations.It simplifies flight control mechanical structures,reduces the number of spare rotary parts and lowers aircraft manufacturing and maintenance costs.

Extreme Environment Adaptability Matches Full Flight Altitude Range:Custom aerospace anti-oxidation grease and fully sealed fluoropolymer sealing structures resist high-altitude low-pressure volatilization,ground moisture and corrosive rainwater.Wide-temperature lubrication formulas operate stably from -40℃ high altitude to ground high-temperature tarmac,no grease failure during long-distance continuous flight missions.

Excellent Anti-Fatigue Performance Extends Aircraft Service Life:Deep induction hardened raceways (HRC55–62) deliver outstanding anti-vibration fatigue resistance,enduring millions of cyclic swing actions of flight control surfaces within the aircraft’s full service cycle.Frequent bearing replacement and aircraft ground maintenance downtime are drastically reduced,improving the attendance rate of civil transport planes and military fixed-wing combat aircraft.

Manufacturer of Thin Section Angular Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in aerospace-grade customized thin section bearings for all types of fixed-wing aircraft flight control systems,airborne optoelectronic pods and aviation auxiliary transmission equipment.

Aerospace Customization Service:Supply preloaded low-vibration thin bearings,stainless steel vacuum lubricated variants,extreme temperature resistant aerospace lubrication and special anti-corrosion coating models;aerospace prototype samples can be finished within 10–15 working days per technical drawings.

Strict Aerospace-Grade Inspection:All inner and outer rings and steel balls adopt ultra-precision superfinishing process;every finished bearing undergoes vibration test,low-temperature aging test and alternating load fatigue inspection before delivery to meet aviation component standards.

Stable Global Shipment:Mass stock of standard Type A thin series supports fast delivery;full cross-border air & sea logistics for aviation manufacturers worldwide.

Authoritative Quality Certification:Products comply with ISO 9001 aerospace component standards,SGS vacuum & temperature resistance test reports can be provided upon customer request.

Global Aerospace Technical Support:Professional bearing engineering team provides load calculation,contact angle selection and preload scheme design for all fixed-wing aircraft rotary actuation mechanisms.
