How Precision RA Crossed Roller Bearings Are Applied in Semiconductor Manufacturing Equipment?

What Are Precision RA Crossed Roller Bearings?

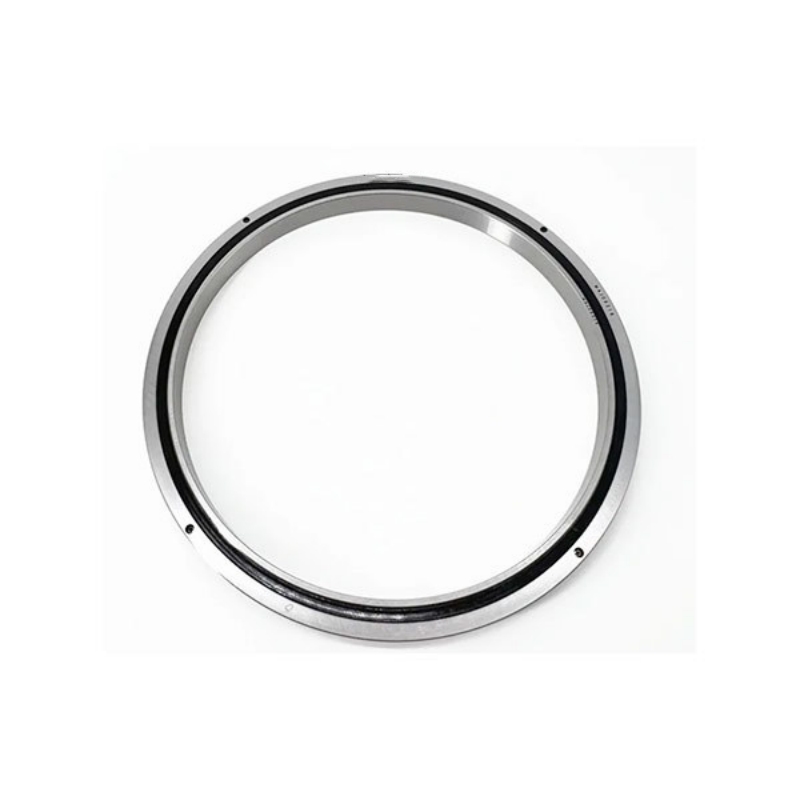

Precision RA crossed roller bearings are high-precision thin-section rotary components specially designed for precision rotary systems,with cylindrical rollers arranged in a 90° orthogonal crossed layout between the inner and outer rings.This unique structure allows a single bearing to bear radial loads,axial loads and overturning moment loads simultaneously without additional bearing combinations.Adopting an integrated inner ring and separable outer ring structure,it enhances system rigidity and simplifies installation,and optional preload configuration can completely eliminate internal clearances.The accuracy grades reach P4 and P2,with inner diameter ranging from 50mm to 200mm and section height from 8mm to 13mm.Made of GCr15 high-carbon chromium steel or SUS440C stainless steel,it is equipped with a double-seal structure (UU/U) for dust and liquid protection,or an open type for clean and vacuum environments.With precisely ground raceways,its run-out tolerance is ≤0.002mm,and the surface hardness reaches HRC 60-62,featuring low friction,high rigidity and long service life.

What Are Semiconductor Manufacturing Equipment?

Semiconductor manufacturing equipment is a set of high-precision core equipment for wafer production,chip processing,lithography,detection and packaging,mainly including wafer handling robots,lithography machines,wafer inspection stages,etching equipment,coating equipment and precision positioning platforms.These equipment operate in ultra-clean rooms or vacuum environments,and have extremely strict requirements for rotating parts:sub-micron or nanometer-level positioning accuracy,zero micro-vibration,compact structure to adapt to limited space,low particle generation to meet cleanroom standards,and stable operation under long-term continuous working conditions.Any tiny positioning error or vibration will lead to wafer scrap and affect chip yield.

The Importance of RA Crossed Roller Bearings in Semiconductor Manufacturing Equipments

RA crossed roller bearings are the core rotary supporting components of semiconductor manufacturing equipment,and their performance directly determines the processing accuracy and stability of the equipment.

Ultra-high precision for micron-level positioning:With P4/P2 ultra-high precision and run-out tolerance ≤0.002mm,it meets the nanometer-level positioning requirements of lithography and wafer detection equipment,ensuring accurate alignment and stable transmission of wafers.

Composite load capacity to simplify structure:It can bear radial,axial and overturning moment loads at the same time,replacing the combination of multiple bearings,reducing assembly errors and adapting to the compact space design of semiconductor equipment.

Ultra-thin and compact for space-limited scenarios:The thin-section design with a minimum section height of 8mm is highly compatible with the miniaturized and integrated structure of wafer robots and precision platforms,saving installation space to the greatest extent.

Low friction and cleanroom compatibility:Optimized roller end-face geometry reduces sliding friction and heat generation,and low particle generation meets the dust-free requirements of clean rooms; open type and special vacuum grease are available for vacuum environment applications.

High rigidity to suppress vibration and deformation:The crossed roller line contact structure provides high rigidity,effectively suppressing deflection and vibration during operation,avoiding wafer damage caused by micro-deformation and ensuring processing yield.

Stable performance for long-term operation:Homogeneous materials and surface hardening treatment improve fatigue resistance,and strict quality control ensures stable operation of equipment in 24-hour continuous working conditions.

Manufacturer of RA Crossed Roller Bearings

Luoyang Newbee Transmission Technology Co.,Ltd.(Newbeetrans) is a professional manufacturer of RA crossed roller bearings,providing mature supporting solutions for semiconductor manufacturing equipment.

Precision manufacturing matching semiconductor requirements:Equipped with high-precision grinding and heat-treatment production lines,it adopts precision grinding process to stably produce P4/P2 precision RA bearings,with dimensional accuracy and performance meeting the strict standards of semiconductor equipment.

Customized services for special environments:Support customization of special lubricating grease (for high-temperature/vacuum environments),non-standard dimensions and ceramic roller hybrid designs,fully adapting to clean room and vacuum working conditions of semiconductor equipment.

Efficient delivery guarantee:Standard RA series products are shipped within 72 hours,and customized specifications can be completed in 10-15 days to meet the rapid R&D and mass production needs of semiconductor equipment manufacturers.
