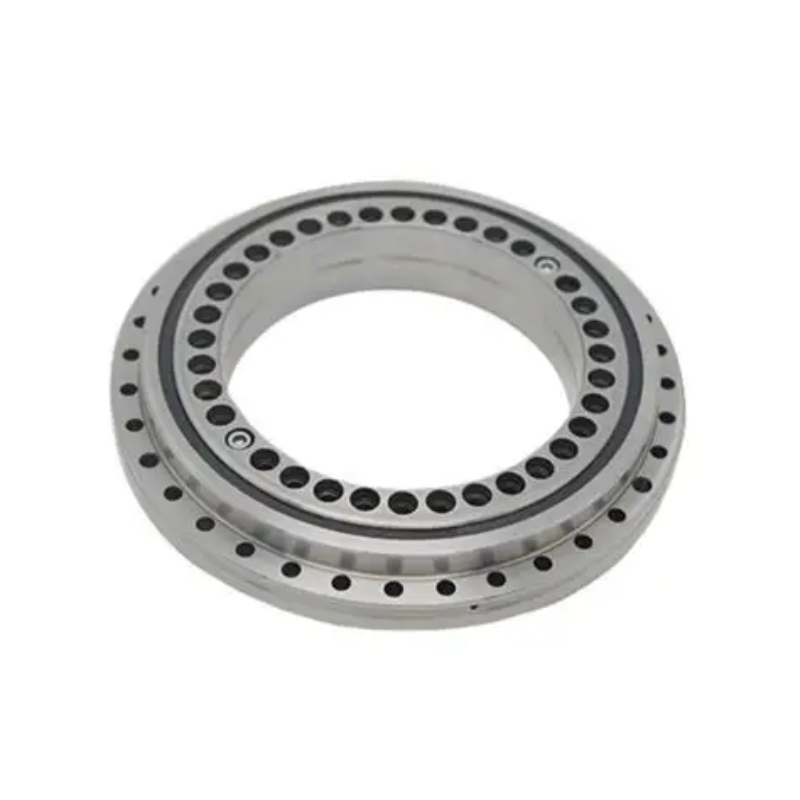

Zkldf Series Turntable Bearings Angular Contact

What are ZKLDF Bearings?

ZKLDF bearings are high-precision,double-direction axial angular contact ball bearings designed with an integrated outer ring,two inner rings,and a 60° contact angle.They handle combined radial and axial loads,offer high tilting rigidity,and support very high rotational speeds.

Mounting holes are pre-machined on both inner and outer rings for direct bolt-on installation without extra housing components.Double-sided sealing versions prevent dust ingress and retain internal grease.The product range covers inner diameters from 100 mm up to 650 mm,outer diameters 185 mm-870 mm and height 38-122 mm.Precision grades include P4 and ultra-precision P2 for different accuracy requirements.

Standard ring and ball material is GCr15 high-carbon chromium bearing steel achieving hardness HRC 60-62.SUS440C stainless steel is available as corrosion-resistant option.Cage selections cover brass for high strength,nylon 66 for lightweight design and stamped steel.Two sealing configurations are offered:open-type for periodic external lubrication and-2RS contact rubber seals with dust-proof and splash-proof performance,fitted with re-greasing holes.Standard stock items can be shipped within 5-12 working days.

Compared with YRT roller-type turntable bearings,ZKLDF features lighter weight and better speed performance,making it suitable for compact-layout,medium-load precision rotary applications,while YRT series delivers superior rigidity for heavy-duty machine-tool turntables.

The features of ZKLDF Bearings

Bi-Directional Combined Load Capacity:Configured with a 60° contact angle across two rows of precision steel balls,allowing a single bearing unit to support heavy radial loads,bidirectional axial forces,and high tilting moments without axial clearance.

Ultra-High Speed Capability & Low Friction:Because rolling resistance is lower with steel balls than with cylindrical rollers,ZKLDF bearings exhibit very low frictional torque and heat generation.This enables them to run continuously at much higher limiting speeds than traditional YRT roller designs.

High Tilting Rigidity & Running Accuracy:Features a single-piece outer ring combined with a preloaded two-piece inner ring.This rigid structure ensures high positional accuracy,high tilting stiffness,and micrometer-level rotational precision under dynamic machining loads.

Integrated Screw-Mounting Design:Pre-drilled mounting holes on both the inner and outer rings allow direct mounting to the machine housing and shaft.This eliminates the need for clamping rings or external retaining flanges,simplifying assembly.

Factory Pre-Set Preload:Delivered pre-assembled with retaining screws that set the exact internal axial and radial preload.This guarantees consistent stiffness and running accuracy straight out of the box.

Double-Sided Sealing & Lubrication:Equipped with protective non-contact seals or shields on both sides to prevent grease leakage and shield internal raceways from coolant and chips.They come pre-greased and feature lubrication grooves/holes in the outer ring for easy relubrication.

The applications of ZKLDF Bearings

High-Speed CNC Rotary Tables & Indexing Heads:Used as the main spindle bearing in 4th and 5th-axis CNC rotary tables.Their low frictional heat generation allows extended operation at high RPMs without excessive thermal growth or loss of positioning precision.

Milling,Grinding & Honing Heads:Applied in high-speed universal machining heads where smooth rotational performance,low vibration,and dynamic rigidity under multi-directional cutting forces are essential.

Direct-Drive (Torque Motor) Rotary Axes:Integrated into direct-drive torque motor assemblies.The low starter torque and minimal drag of ZKLDF bearings complement the fast dynamic response and acceleration of torque motors.

Reversible Clamping Devices & Swivel Units:Found in automated pallet changers,indexing faceplates,and robotic swivel fixtures where compact axial/radial support and fast cycle times are needed.

Precision Measuring & Inspection Equipment:Employed in optical turntables,roundness measuring machines,radar antennas,and automated test benches that demand sub-micron runout accuracy and uniform torque output.

Manufacturer of ZKLDF Bearings

Newbeetrans is a specialized manufacturer for ZKLDF-series angular-contact turntable bearings,covering independent R&D,precision CNC machining,vacuum heat-treatment and full-performance test laboratories under ISO 9001 quality-management certification.

Inventory & Customization Capacity

Full range of standard ZKLDF models are kept in stock for fast delivery.Our engineering group supports custom development including non-standard bore sizes,special sealing structures,stainless-steel modification and special lubrication matching.The lead-time for custom bearings is 6-8 weeks depending on drawing complexity and raw-material availability.

Strict Full-Process Quality Assurance

Raw-material incoming inspection includes spectral analysis and metallographic examination.Every finished ZKLDF bearing undergoes 100-percent comprehensive tests:rotational run-out,friction torque,rigidity,limiting-speed and temperature-rise testing.Material certificates and SGS third-party inspection reports can be provided upon customer request.

Advanced Production Facilities

Large-size precision CNC lathes,CBN super-finish grinders and automatic ball-sorting equipment are deployed.The MES production-management system realizes full traceability of each manufacturing step to stabilize P2 / P4 high-precision dimensional tolerances.

Global Sales & Technical Support

We cooperate with worldwide sea-freight and air-freight carriers and support FOB,CIP,DAP and other international trade terms.Our technical team offers remote application consulting and installation guidance,reminding customers to use dedicated fixtures and avoid direct hammer impact onto bearing rings during mounting.
