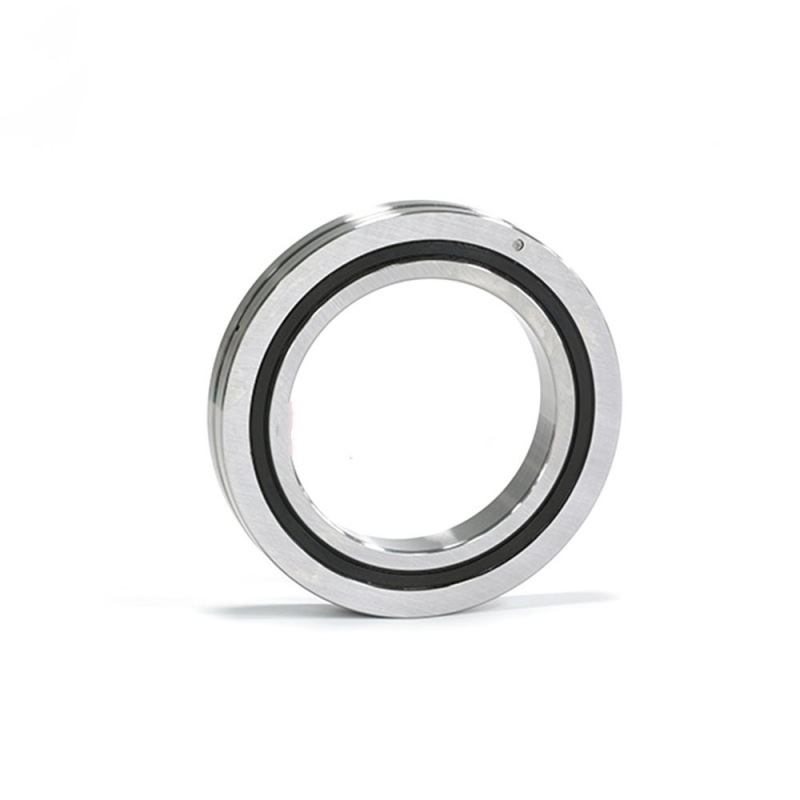

CRBH Cross Roller Bearings are ultra-precision,high-rigidity bearings featuring cylindrical rollers arranged at right angles between the inner and outer rings.This single-unit design allows them to simultaneously handle complex loads in all directions-radial,axial,and moment.Core Basic Specifications Accuracy grades:P5,P4,P2 ultra-precision levels for micron-level positioning.Metric size range:Inner diameter 20–1250 mm,outer diameter 36–1500 mm,cross-section height 8–110 mm;miniature thin-section CRBH variants fit compact small wind turbine blade root pitch rotary structures.Material options:Bearing rings and rollers adopt GCr15 high-carbon chromium steel (surface hardness HRC 60–62) for inland wind farm use;SUS440C stainless steel for coastal offshore wind turbines resisting salt fog and marine corrosion.Cage materials include lightweight Nylon 66,high-strass brass,and customized composite materials.Sealing forms:Open type CRBH-A for dry inland wind turbine nacelles;double-side contact rubber sealed CRBH-AUU with wide-temperature resistant rubber to block dust,condensed water and salt mist in coastal & alpine wind fields.Lubrication modes:Wide-temperature anti-hydrolysis long-life grease lubrication (-40℃~120℃) adapting extreme seasonal temperature fluctuation of wind farms;circulating oil lubrication for high-frequency fast pitch adjustment ≤3000 rpm.Delivery cycle:Standard stock models 7–15 days;wind power dedicated anti-corrosion non-standard specifications require separate negotiation on production lead time.
Wind turbine small pitch adjustment rotary parts are core rotary assemblies installed at each blade root of small & distributed wind turbines (0.5kW~50kW),serving as the key motion unit to drive blades to rotate and adjust pitch angle in real time according to wind speed changes.Their core functions include optimizing wind energy capture at low wind speed,reducing blade aerodynamic load and limiting rotor overspeed under strong gusts,and implementing emergency feathering braking for wind turbine safety protection.These rotary components operate inside narrow turbine hubs,enduring long-term alternating eccentric loads caused by blade weight,centrifugal force and turbulent wind shock.Meanwhile,wind farm working environments are extremely harsh: wide temperature difference between day and night,high humidity,sand dust inland,heavy salt fog corrosion along coasts,and continuous vibration during long-duration power generation.Ordinary bearings are prone to clearance loosening,rust and precision attenuation under cyclic alternating loads,which will cause pitch angle deviation,unstable power output and even wind turbine runaway risk.Therefore,pitch rotary bearings must integrate high composite load capacity,zero backlash positioning,wide temperature adaptability and salt-fog anti-corrosion performance.
Multi-Directional Load Capacity:Cylindrical rollers are arranged crosswise at 90° angles in a V-groove,allowing a single bearing to handle loads from all directions simultaneously.
Integrated,Non-Separable Rings:Because the inner and outer rings are solid and do not separate,the bearing's performance is unaffected by the surrounding mounting structure.
Smooth Rotation:They utilize separators between the rollers to prevent friction and ensure smooth,stable rotation,even at medium-to-high speeds.
High Precision & Rigidity:The line-contact design between rollers and raceways keeps elastic deformation incredibly small,resulting in superior stiffness and minimal backlash.
Industrial Robotics & Automation:They are the premier choice for articulating robot joints (bases,waists,and wrists) and speed reducers,where they provide the precise motion control and rigidity necessary for heavy or delicate tasks.
Machine Tools:Employed extensively in CNC rotary tables,grinding machines,and turning centers,where heavy spinning components meet high resistance,they minimize mounting errors and offer high rigidity during operations.
Medical & Imaging Equipment:Their smooth,vibration-free rotation and compact size make them ideal for positioning articulating arms in labs and ensuring the precise rotation of camera or imaging components in CT scanners and MRI machines.
Semiconductor Manufacturing:They deliver the micron-scale precision and repeatability required for pick-and-place systems and wafer handling equipment.

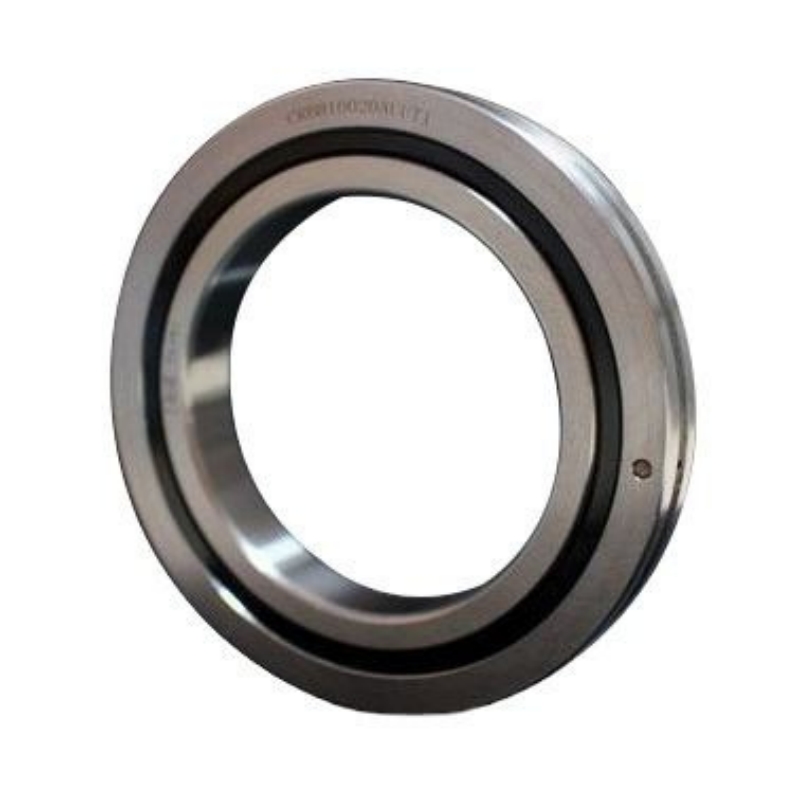

Wind turbine small pitch adjustment rotary parts:Stainless steel wide-temperature sealed CRBH bearings act as core rotary supports for small wind turbine blade root pitch adjusters,mini hub feathering rotary mechanisms and distributed wind power pitch servo rotary units,stable long-cycle angle adjustment under alternating wind loads and harsh open-air wind farm environments.
Single bearing bears alternating wind eccentric composite loads:Small turbine blades generate huge variable overturning moment,radial dead load and axial centrifugal force under turbulent gust impact.A single CRBH bearing replaces multi-bearing combined structures to evenly disperse multi-directional alternating loads,greatly restraining pitch rotary frame micro-deformation during wind fluctuation,maintaining consistent blade angle and stable power generation output.
Zero-backlash preloaded structure ensures accurate pitch control:CRBH factory integrated preload completely eliminates internal bearing clearance.During real-time fine pitch adjustment and emergency feather braking,ultra-low rotation runout realizes repeatable precise angle positioning,effectively solving pitch offset failure caused by bearing play,avoiding wind turbine overspeed safety hazards under strong wind conditions.
Wide-temperature & double sealing adapts all-region wind farms:CRBH-AUU double wide-temperature rubber seals block sand dust,condensed water and coastal salt fog intrusion; SUS440 stainless customized versions resist long-term marine atmospheric corrosion.Special low-temperature anti-emulsification grease keeps stable lubrication performance from alpine minus 40°C winter to hot summer,no grease solidification or volatilization failure in extreme temperature environments.
Ultra-thin integrated design fits narrow turbine hub layout:CRBH thin-wall one-piece structure cancels bulky multi-bearing stacking and auxiliary fixing brackets,greatly reducing the radial and axial occupation space of pitch rotary parts.Compact bearing size adapts the limited internal installation space of small wind turbine compact hubs,optimizing internal layout of pitch servo drive and control components.
Excellent anti-fatigue performance extends wind turbine service life:GCr15 or stainless bearing rings with surface hardening treatment improve anti-fatigue performance by 30%,adapting millions of daily reciprocating pitch adjustment cycles caused by wind turbulence.Sealed structure reduces raceway rust and abrasive wear,lowering wind farm field disassembly,maintenance and bearing replacement frequency,cutting off-grid power generation loss.
Simplify small wind turbine mechanical design & assembly:Different from RB split outer ring bearings requiring on-site preload calibration,CRBH integrated inner and outer rings finish fixed preload at the factory stage.Wind power equipment manufacturers do not need to design complex clearance adjusting structures for pitch rotary housings,shortening prototype R&D,assembly and precision debugging cycles of distributed small wind turbines.
Newbeetrans is a professional precision cross roller bearings manufacturer focusing on wind power customized CRBH bearings for small wind turbine pitch adjustment rotary components.We provide full-size standard CRBH stock and salt-fog resistant wide-temperature bearing solutions for distributed wind energy equipment manufacturers.
Full precision control:All raceways and cylindrical rollers undergo ultra-precision grinding to reach P5,P4 and P2 ultra-high precision standards.Every wind turbine pitch dedicated CRBH bearing passes wide-temperature cycle,salt fog anti-corrosion and alternating load fatigue inspection before delivery.
Diverse wind power customization capacity:Support SUS440 stainless anti-salt-fog versions,double UU all-weather dust & waterproof sealing,low-temperature anti-solidification special grease and miniature thin cross-section customized models for compact small wind hub pitch mechanisms.
Stable fast delivery:Standard CRBH series in stock for 7–15 days;wind power anti-corrosion customized bearings can complete sample delivery within 10–15 days according to sealing and temperature-resistant process complexity.
Authoritative quality certification:All CRBH bearings comply with ISO 9001 and GB/T 307.1 precision bearing standards,and SGS salt fog & low-temperature environment test reports for wind farm use can be provided upon client request.
Global one-stop service:Complete multi-channel global logistics support to deliver all-weather wind power CRBH bearings to wind turbine manufacturers worldwide,with professional technical engineers providing bearing load,sealing and temperature grade selection guidance for pitch rotary mechanisms.
