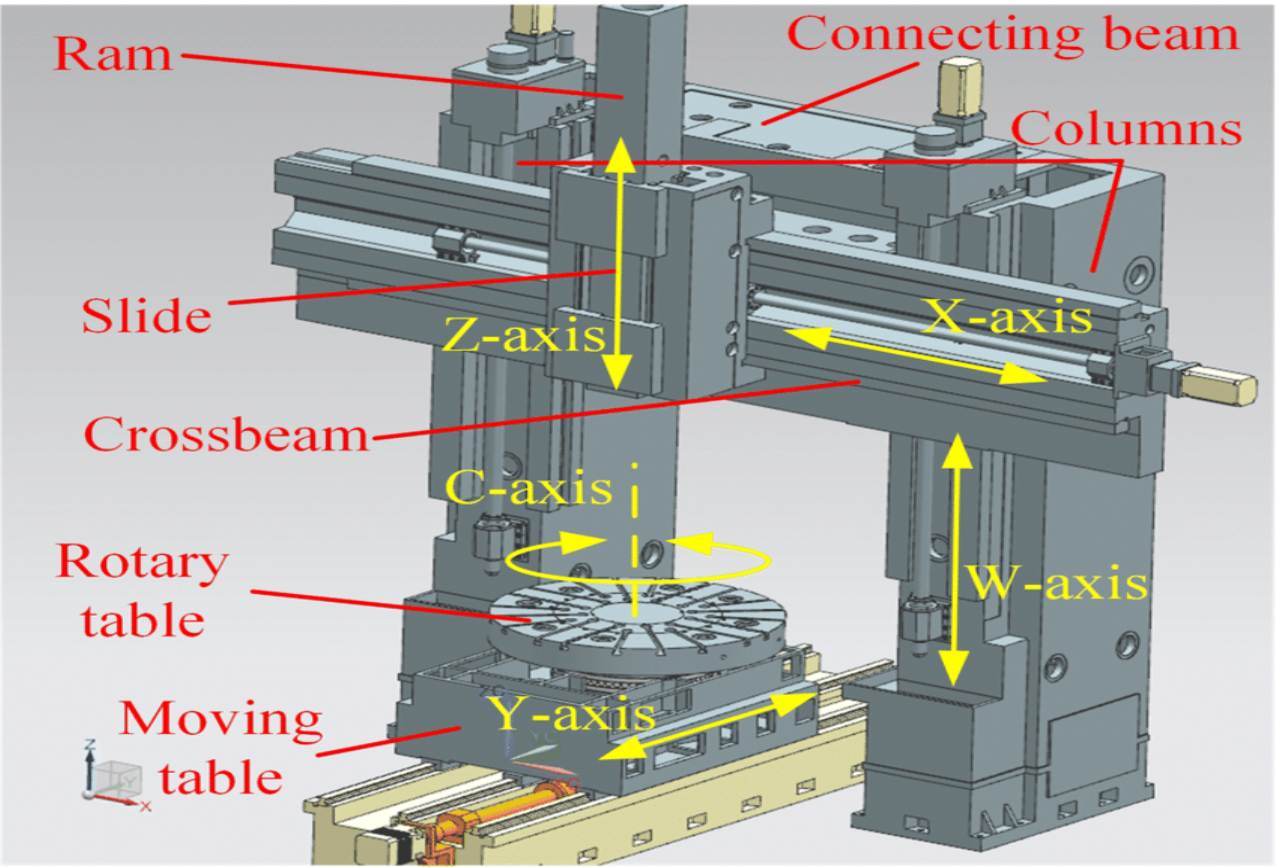

Dual-column fixed beam structure: High-strength cast iron components (HT250/MTCrCu300); super-audio quenched guide rails (HRC48-55) ensure decades-long durability.
Drive system: High-power dual/triple/quadruple spindle servo motors (2×55kW to 4×75kW); equipped with Siemens 808D CNC system (dual controls for larger models).
Maximum turning diameter: 2500–10000mm; worktable diameter: 2000–7100mm.
Maximum workpiece height: 1200mm (fixed); maximum workpiece weight: 20–80t.
Worktable torque: 20–100 kN·m; stepless speed range: 0.42–63 r/min.
Ram system: Square ram (200×200mm) with zinc-aluminum alloy wear-resistant plates.
Tool post system:
Maximum cutting force: 35 kN (vertical tool post).
Rapid traverse speed: 1550–1580 mm/min; tool shank section: 40×40mm or 60×60mm.
Horizontal stroke range: -50 to 5050mm; ram stroke: 1000mm.
Feed rate range: 0.2–145 mm/min (stepless).
Fixed crossbeam: Optimized for high rigidity in heavy-duty cutting (no vertical adjustment).
Machine dimensions: 5400×4400×4600mm (smallest) to 13000×12000×4800mm (largest).
Machine weight: 30T (DFVT25-NC) to 120T (DFVT100-NC).
| Parameter Name | Unit | DFVT25 - NC | DFVT30 - NC | DFVT40 - NC | DFVT50 - NC | DFVT65 - NC | DFVT80 - NC | DFVT100 - NC |
|---|---|---|---|---|---|---|---|---|
| Worktable - Maximum Turning Diameter | mm | 2500 | 3000 | 4000 | 5000 | 6500 | 8000 | 10000 |
| Worktable - Worktable Diameter | mm | 2000 | 2500 | 3600 | 4500 | 5500 | 6000 | 7100 |
| Worktable - Maximum Workpiece Height | mm | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
| Worktable - Maximum Workpiece Weight | t | 20 | 30 | 40 | 40 | 40 | 60 | 80 |
| Worktable - Maximum Torque of Worktable | KN·m | 20 | 20 | 30 | 50 | 70 | 70 | 100 |
| Worktable - Rotation Speed Range (Stepless) | r/min | 2 - 63 (Stepless) | 2 - 63 (Stepless) | 2 - 63 (Stepless) | 0.42 - 42 (Stepless) | 0.42 - 42 (Stepless) | 0.42 - 42 (Stepless) | 0.42 - 42 (Stepless) |
| Cross - section of Square Slide | mm | 200×200 | 200×200 | 200×200 | 200×200 | 200×200 | 200×200 | 200×200 |
| Maximum Cutting Force of Vertical Tool Post | KN | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Feed Rate Range of Left Tool Post | mm/min | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 |
| Feed Rate Range of Right Tool Post | mm/min | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 | 0.2 - 145 |
| Horizontal Stroke of Vertical Tool Post | mm | -50~1550 | -50~2050 | -50~2550 | -50~3300 | -50~4050 | -50~5050 | - |
| Slide Stroke of Vertical Tool Post | mm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Rapid Traverse Speed of Tool Post | mm/min | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 | 1560 |
| Power of Tool Post Rapid Motor | KW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Cross - section Size of Tool Shank (Width×Height) | mm | 40×40 | 40×40 | 60×60 | 60×60 | 60×60 | 60×60 | 40×40 |
| Main Motor Power | KW | 2×55 | 2×55 | 2×75 | 2×75 | 3×75 | 4×75 | 4×75 |
| Electrical Control | - | Siemens 808D Left Tool Post: Mechanical (Digital Display) | ||||||
| Overall Dimensions of Machine Tool (Length×Width×Height) | mm | 5400×4400×4600 | 6400×5400×4600 | 6900×5900×4600 | 7900×6900×4600 | 9400×8400×4800 | 11000×10000×4800 | 13000×12000×4800 |
| Machine Tool Weight (Approx.) | T | 30 | 40 | 55 | 65 | 80 | 100 | 120 |
The high-repeat-accuracy fixed-beam double-column structure, combined with super-audio frequency quenched guide rails, provides a repeat positioning accuracy of ±0.005 mm, meeting the requirements of nanoscale machining.
The HT300 cast iron bed and the fixed-beam design increase the dynamic and static stiffness by 40%, reducing cutting vibrations.
It supports the use of power milling heads and the collaborative processing of multiple tool holders (left/right tool holders), expanding the ability to handle complex processes.
The guide rails are quenched to a hardness of HRC50 - 55 and are equipped with zinc-aluminum alloy wear-resistant plates, with a service life of over 12 years.
Precision Manufacturing: Machining the inner and outer circles of aerospace engine casings and high - precision gear discs.
Energy Industry: Finish turning the flanges of nuclear reactor pressure vessels and the end faces of wind turbine hubs.
Heavy Equipment: Machining the bases of ship propellers and the bearing seats of mining machinery.
General Machinery: Turning the sealing surfaces of large flanges and the support seats of rolling mill roller tables.
