What are sealed cross roller bearings?

Sealed cross roller bearings are high-rigidity, compact bearings designed with cylindrical rollers arranged in a V-groove at 90° angles to each other, protected by side seals. The integrated synthetic rubber or metallic seals protect the internal components from dust and contaminants while retaining grease lubrication, making them ideal for high-precision, heavy-load applications in robotics, automation, and machine tools where environmental contamination is a concern.

As a professional precision bearing manufacturer with 20 years of experience,Luoyang NewBeetrans has optimized the design of sealed cross roller bearings for industrial application scenarios such as industrial robots,CNC machine tool rotary tables and semiconductor equipment.Its CRBH series sealed cross roller bearings have become a core product for global high-end precision transmission due to their excellent sealing performance and ultra-high rotational accuracy.

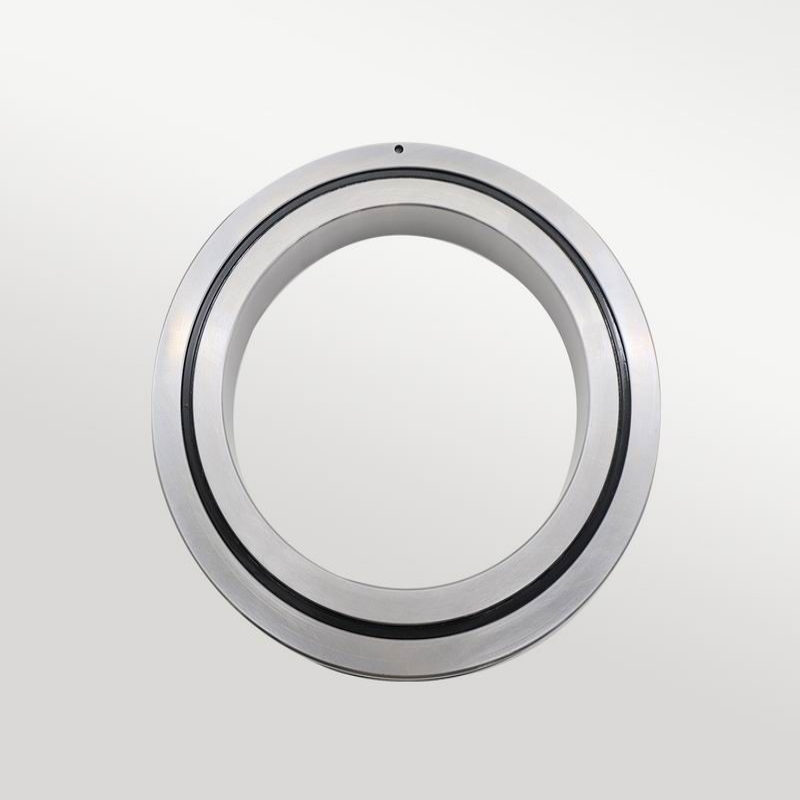

What are sealed cross roller bearings?

Sealed cross roller bearings are precision rolling bearings that integrate professional sealing components on the basis of traditional crossed roller bearings,which retain the structural feature of cylindrical rollers arranged orthogonally at 90 degrees and the ability to withstand simultaneous radial,axial and moment loads.The sealing structure is installed at the gap between the inner and outer rings of the bearing,forming a closed protective layer between the rolling elements,raceways and the external environment.Essentially,it is a protective barrierdesigned for precision cross roller bearings,which can effectively block the intrusion of external dust,metal chips,water and other contaminants,and prevent the loss of internal lubricating grease.NewBee's CRBH series sealed cross roller bearings are made of high-carbon chromium steel GCr15 with a surface hardness of HRC 60-62,and reach P4/P2 ultra-precision grade,realizing micron-level rotational accuracy while maintaining reliable sealing performance.

What are the key structural features of sealed cross roller bearings?

The core competitiveness of sealed cross roller bearings lies in the organic combination of precision cross roller structure and customized sealing design,and NewBee's CRBH series fully embodies this design concept with its unique structural features.

Integrated sealing design:The sealing component of the CRBH series is integrated with the bearing inner and outer rings during processing,without additional assembly gaps,which avoids the reduction of rotational accuracy caused by the sealing structure and ensures the nanometer-level runout tolerance of the bearing.

Pre-filled high-performance lubricating grease:The CRBH series is pre-filled with lithium-based grease or high-temperature fluorine grease according to application scenarios,which matches the sealing structure to form a closed lubrication system,realizing maintenance-free operation of the bearing for a long time.

Precision matching of rolling elements and cages:The nylon 66 cage of the CRBH series optimizes the roller spacing,and cooperates with the sealing structure to maintain the stability of the bearing radial internal clearance,avoiding the change of clearance caused by lubricant loss.

What factors influence the performance of sealed cross roller bearings?

The stable operation of sealed cross roller bearings is jointly affected by sealing material properties,assembly process and actual working conditions,which is also the key to the parameter matching of NewBee's CRBH series products.

Sealing material performance:The temperature resistance,oil resistance and wear resistance of the sealing material directly determine the service life of the bearing.The rubber seal of NewBee's CRBH series uses nitrile rubber with excellent oil resistance,which can adapt to the working temperature range of -40℃~+150℃,and the high-temperature version can withstand 200℃ high temperature.

Assembly interference fit:Excessive interference fit between the bearing and the shaft/housing will squeeze the sealing component,causing deformation and failure,and even changing the original radial clearance of the bearing.NewBee provides detailed assembly specifications for the CRBH series to ensure the rationality of interference fit.

Working condition parameters:High dust,high humidity,high speed and other working conditions will accelerate the aging of the sealing structure.For example,the CRBH series applied in steel plant rolling mills needs to be equipped with reinforced anti-high-temperature and anti-chip sealing structures.

Lubricant viscosity matching:The viscosity of the internal lubricating grease affects the friction resistance of the sealing structure.The CRBH series matches the lubricant with corresponding viscosity according to the sealing type and operating speed,balancing the sealing effect and rotational flexibility.

How do sealed cross roller bearings optimize equipment operation?

Properly selected sealed cross roller bearings can significantly improve the operational stability and service life of industrial equipment,and the practical application of NewBee's CRBH series in various industries has fully verified this advantage.

Protect the precision of the bearing core:The sealing structure prevents contaminants from entering the raceway and rolling elements,avoiding abrasive wear of the precision ground raceway of the CRBH series,and maintaining the P4/P2 grade rotational accuracy for a long time—this is crucial for semiconductor wafer handling robots and optical theodolites that require high precision.

Extend the service life of the bearing:The closed lubrication system of the CRBH series reduces the loss of lubricating grease and the wear of rolling elements,and its service life is increased by more than 30% compared with open cross roller bearings,which effectively reduces the maintenance frequency of steel plants,mining machinery and other heavy equipment.

Adapt to complex working conditions:The CRBH series with rubber seal can work stably in dusty and humid working conditions such as construction machinery and marine equipment,solving the problem of poor environmental adaptability of traditional precision cross roller bearings.

Realize unmanned operation support:The pre-filled lubricating grease and maintenance-free design of the CRBH series make it suitable for fully automated production lines and unmanned equipment,reducing the manual maintenance cost of customers.

What adverse effects result from improper selection of sealed cross roller bearings?

Improper selection or installation of sealed cross roller bearings will not only fail to exert the protective effect of the sealing structure,but also cause abnormal bearing operation and even premature failure,and the CRBH series is no exception.Selecting the non-contact metal dust cover CRBH series for high-dust working conditions will lead to the intrusion of dust and metal chips,causing abrasive wear of the raceway and rolling elements,increasing the bearing vibration and noise,and reducing the rotational precision of the equipment.Choosing ordinary rubber seal CRBH series for high-temperature working conditions will accelerate the aging and cracking of the sealing material,leading to the loss of lubricating grease,the increase of bearing operating temperature and the decrease of rigidity,and even bearing seizure in severe cases.Excessive interference during assembly will damage the sealing component of the CRBH series,resulting in the loss of protective effect and the direct failure of the bearing.For heavy machinery such as mining equipment,improper selection of the CRBH series may even trigger sudden equipment breakdowns and production safety accidents.NewBee Transmission provides professional on-site technical support and installation guidance for global customers to avoid the above problems caused by improper selection and assembly.Sealed cross roller bearings are a key product combining precision and protection in the field of transmission components,and the CRBH series of NewBee Transmission is tailored for various industrial application scenarios with its customized design concept.All products are designed and inspected in accordance with ISO international standards,providing reliable precision transmission solutions for global high-end equipment manufacturing.
