How Precision RB Crossed Roller Bearings Are Applied in the Custom Cleanroom Robotic Joints for Wafer Transfers?

What are Precision RB Crossed Roller Bearings?

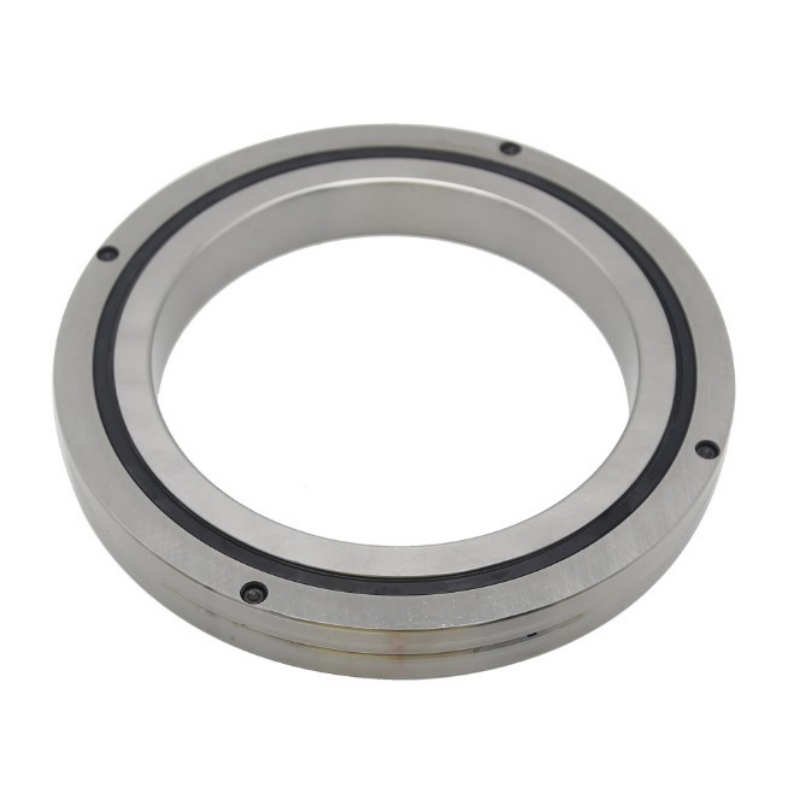

RB Crossed Roller Bearings are high-precision components featuring cylindrical rollers arranged at 90°angles in alternating directions.This allows a single bearing to handle radial,axial,and moment loads simultaneously,making them ideal for compact,high-stiffness applications like robotics,CNC rotary tables,and medical equipment.Available precision grades cover P5,P4 and P2;inner diameter ranges from 30mm to 1250mm while cross-section height varies between 8mm and 110mm.The rings and rollers are manufactured from GCr15 high-carbon chrome steel with surface hardness HRC 60-62 or corrosion-resistant SUS440C stainless steel,and nylon 66 serves as lightweight bearing cage material.Two sealing options are available:standard open type for clean environment and UU/U contact rubber seal to block dust and liquid splashing with industrial heavy-duty grease lubrication.

What are Custom Cleanroom Robotic Joints for Wafer Transfers?

Custom cleanroom robotic joints for wafer transfers are core motion components of semiconductor wafer handling robots,operating inside Class 100/1000 ultra-clean cleanroom workshops for silicon wafer picking,transferring and positioning between lithography,etching and inspection equipment.These custom joints cover shoulder,elbow and wrist rotary positions of wafer transfer manipulators.They need ultra-low particle emission,zero outgassing,micron-level repetitive positioning accuracy and stable low-speed rotation without jitter.Most joint spindles are pre-mounted with reducers and drive gears before bearing installation,which brings challenges to conventional integral bearings.Cleanroom environments demand strict control of dust generation,oil leakage and rust,putting high standards on bearing material,sealing and lubrication selection.Any tiny vibration or positioning deviation will cause wafer scratch or production scrap.

The features of RB Crossed Roller Bearings

Multi-Directional Load Capacity:Unlike standard ball bearings,the crossed arrangement empowers the RB series to accommodate loads from all directions at once.

High Rigidity and Precision:The integration of a preload adjusts the bearing clearance,eliminating internal gaps and allowing for high rotational accuracy and minimal deformation under heavy loads.

Compact Space-Saving Profile:Because one crossed bearing replaces multiple conventional ball or roller bearings,they are exceptionally well-suited for tight,space-constrained assemblies.

Smooth Rotation:Spacer retainers separate the rollers,preventing them from skewing and eliminating friction between rolling elements for a stable,low-torque motion.

The applications of RB Crossed Roller Bearings

Industrial Robotics & Automation:Used in basic motion parts like rotary joints,waists,and wrists for smooth and precise motion control.

Precision Machine Tools:Utilized in the rotating tables of machining centers,rotary units of manipulators,and indexing heads to handle heavy,spinning components.

Medical Equipment:Deployed in sophisticated imaging components like MRI machines,CT scanners,and surgical robots to provide smooth,accurate,and vibration-free movement.

Semiconductor & IC Manufacturing:Provide micron-scale accuracy for wafer handling equipment,photolithography machines,and cleanroom pick-and-place systems.

Optical & Measuring Instruments:Essential for the tracking accuracy of astronomical telescopes,radar antennas,and Coordinate Measuring Machines (CMM).

The Importance of RB Crossed Roller Bearings in Custom Cleanroom Robotic Joints for Wafer Transfers

RB crossed roller bearings serve as irreplaceable core rotary supports for custom cleanroom wafer transfer robotic joints and dominate wafer transmission precision and cleanroom production stability.

Split Outer Ring Simplifies Custom Joint Assembly:Separable outer ring enables convenient mounting on pre-finished joint spindle with pre-installed reducers,greatly shortening customized robot development cycle and assembly cost for semiconductor manufacturers.

Single-Bearing Composite Load Optimizes Compact Joint Layout:One RB replaces multiple bearing combinations to bear arm self-weight,wafer payload and swing overturning loads simultaneously,making robotic arm structure more compact to fit limited cleanroom equipment layout.

High Rigidity Suppresses Micro-Vibration during Wafer Handling:Excellent structural rigidity eliminates tiny deformation and jitter under dynamic swing,avoiding silicon wafer collision and scratch in high-precision transfer process.

High Precision Ensures Micron Wafer Positioning:P4/P2 high precision controls ultra-small rotational runout to guarantee consistent repeated positioning accuracy,realizing precise docking between wafer and process equipment cavity.

Cleanroom-Oriented Custom Material & Lubrication:SUS440 stainless steel + low-outgassing special grease effectively avoids rust and volatile substance pollution to ultra-clean environment; open design reduces particle accumulation inside bearing.

High Durability Reduces Fab Unplanned Downtime:Surface-hardened bearing parts support long-time uninterrupted 24h wafer transfer operation,lowering regular maintenance frequency and improving semiconductor production efficiency.

Manufacturer of Precision RB Crossed Roller Bearings

Newbeetrans is a professional RB crossed roller bearing manufacturer,providing tailor-made bearing solutions specially designed for custom cleanroom wafer transfer robotic joints and all types of heavy precision machinery.

Semiconductor Cleanroom Customization:Develop clean-grade RB bearings with full stainless steel construction,low-particle special cleanroom grease and customized open/sealing structure as per client’s cleanroom requirement; customized sample delivery within 10–15 days.

Strict Precision Production:All raceways and rollers adopt ultra-precision superfinishing to achieve P5/P4/P2 precision standards,full dimensional inspection for all finished products,monthly output over 2 million sets.

Fast Global Shipment:Standard RB stock items can be dispatched promptly with worldwide multi-channel logistics service.

Authoritative Quality Certification:Products comply with ISO9001 & GB/T307.1 standards,SGS inspection certificates available upon customer request.
