How Precision RB Crossed Roller Bearings Are Applied in Wafer Handling Robot Elbow & Shoulder Joints?

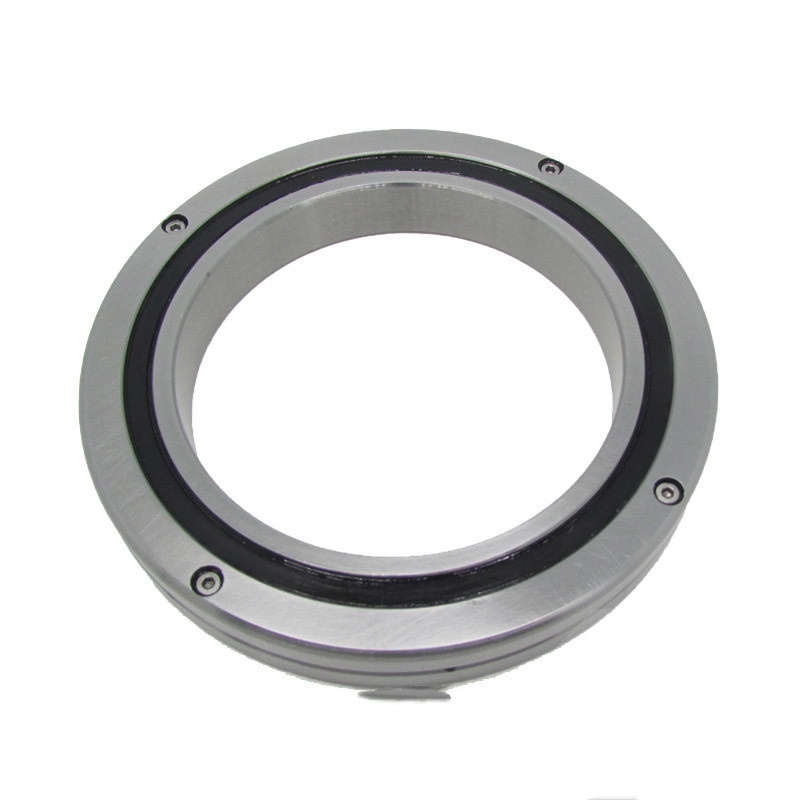

What are Precision RB Crossed Roller Bearings?

RB Crossed Roller Bearings are high-precision components featuring cylindrical rollers arranged at 90°angles in alternating directions.This allows a single bearing to handle radial,axial,and moment loads simultaneously,making them ideal for compact,high-stiffness applications like robotics,CNC rotary tables,and medical equipment.Available precision grades cover P5,P4 and P2;inner diameter ranges from 30mm to 1250mm while cross-section height varies between 8mm and 110mm.The rings and rollers are manufactured from GCr15 high-carbon chrome steel with surface hardness HRC 60-62 or corrosion-resistant SUS440C stainless steel,and nylon 66 serves as lightweight bearing cage material.Two sealing options are available:standard open type for clean environment and UU/U contact rubber seal to block dust and liquid splashing with industrial heavy-duty grease lubrication.

What are Wafer Handling Robot Elbow & Shoulder Joints?

Wafer handling robot elbow and shoulder joints are core motion units of semiconductor wafer transfer robots,which operate in ultra-clean Class 100 and Class 1000 cleanrooms.They undertake key tasks such as picking,transferring,positioning and docking of silicon wafers between lithography,etching and testing equipment.Most elbow and shoulder joint spindles are pre-assembled with gears and reducers before bearing installation,which creates assembly difficulties for traditional integral bearings.These joints operate with frequent start-stop and low-speed precise rotation,bearing continuous multi-directional dynamic loads.Meanwhile,the ultra-clean workshop puts forward extremely strict requirements on dust generation,outgassing,corrosion resistance and operational stability of supporting parts.Any tiny vibration,positioning deviation or particle pollution will cause wafer scratches,damage and production yield loss,so the performance of supporting bearings is critical to the whole robotic system.

The features of RB Crossed Roller Bearings

Multi-Directional Load Capacity:Unlike standard ball bearings,the crossed arrangement empowers the RB series to accommodate loads from all directions at once.

High Rigidity and Precision:The integration of a preload adjusts the bearing clearance,eliminating internal gaps and allowing for high rotational accuracy and minimal deformation under heavy loads.

Compact Space-Saving Profile:Because one crossed bearing replaces multiple conventional ball or roller bearings,they are exceptionally well-suited for tight,space-constrained assemblies.

Smooth Rotation:Spacer retainers separate the rollers,preventing them from skewing and eliminating friction between rolling elements for a stable,low-torque motion.

The applications of RB Crossed Roller Bearings

Industrial Robotics & Automation:Used in basic motion parts like rotary joints,waists,and wrists for smooth and precise motion control.

Precision Machine Tools:Utilized in the rotating tables of machining centers,rotary units of manipulators,and indexing heads to handle heavy,spinning components.

Medical Equipment:Deployed in sophisticated imaging components like MRI machines,CT scanners,and surgical robots to provide smooth,accurate,and vibration-free movement.

Semiconductor & IC Manufacturing:Provide micron-scale accuracy for wafer handling equipment,photolithography machines,and cleanroom pick-and-place systems.

Optical & Measuring Instruments:Essential for the tracking accuracy of astronomical telescopes,radar antennas,and Coordinate Measuring Machines (CMM).

The Importance of RB Crossed Roller Bearings in Wafer Handling Robot Elbow & Shoulder Joints

RB crossed roller bearings are indispensable core components for wafer handling robot elbow and shoulder joints,which directly affect wafer transfer accuracy,cleanroom safety and the overall production efficiency of semiconductor lines.

Simplify Complex Assembly Work:The separable outer ring can be installed directly on the spindle with pre-mounted gears and reducers without disassembling existing components.It effectively shortens the robot assembly cycle and lowers production and maintenance costs for semiconductor equipment manufacturers.

Adapt to Complex Composite Loads:A single RB bearing replaces multiple bearing sets to bear the self-weight of the robot arm,wafer payload and swing overturning moment synchronously,simplifying the internal structure of joints and making the robotic arm more compact.

Guarantee Ultra-precise Wafer Positioning:P4/P2 high precision controls minimal rotational runout,ensuring consistent repeated positioning accuracy of joints.It realizes accurate docking between wafers and process equipment and avoids scrapping caused by positioning errors.

Meet Strict Cleanroom Requirements:Low-friction design reduces particle generation.Optional SUS440C stainless steel and special low-outgassing lubricant prevent pollution to the ultra-clean environment.UU rubber seal can also block fine dust in the air.

Suppress Micro-vibration to Protect Wafers:High rigidity restrains micro-vibration during robot movement,eliminating wafer scratches,cracks and other defects caused by jitter in the transfer process.

Reduce Production Downtime:Excellent fatigue resistance enables 24-hour uninterrupted operation of wafer handling robots.It cuts the frequency of bearing replacement and routine maintenance,and improves the continuous production capacity of semiconductor workshops.

Manufacturer of Precision RB Crossed Roller Bearings

Newbeetrans is a professional manufacturer of RB crossed roller bearings.We provide customized bearing solutions tailored for wafer handling robot joints and various heavy-load precision equipment.

Cleanroom-oriented Customization:We develop special RB bearings with low dust generation,low outgassing,anti-corrosion and zero backlash.Custom stainless steel materials and dedicated cleanroom grease are available,and customized samples can be delivered within 10–15 days.

Strict Precision Manufacturing:All raceways and rollers adopt super-fine grinding to reach P5/P4/P2 precision standards.Full inspection is implemented for key dimensions,and the monthly production capacity exceeds 2 million sets.

Efficient Global Delivery:Standard RB bearings are in stock for quick shipment,and complete global logistics services are provided for customers worldwide.

Authoritative Quality Certification:Our products comply with ISO 9001 and GB/T 307.1 standards,and SGS inspection reports can be provided upon request.
