How Precision Crossed Roller Bearings Are Applied in the Large Slewing Devices?

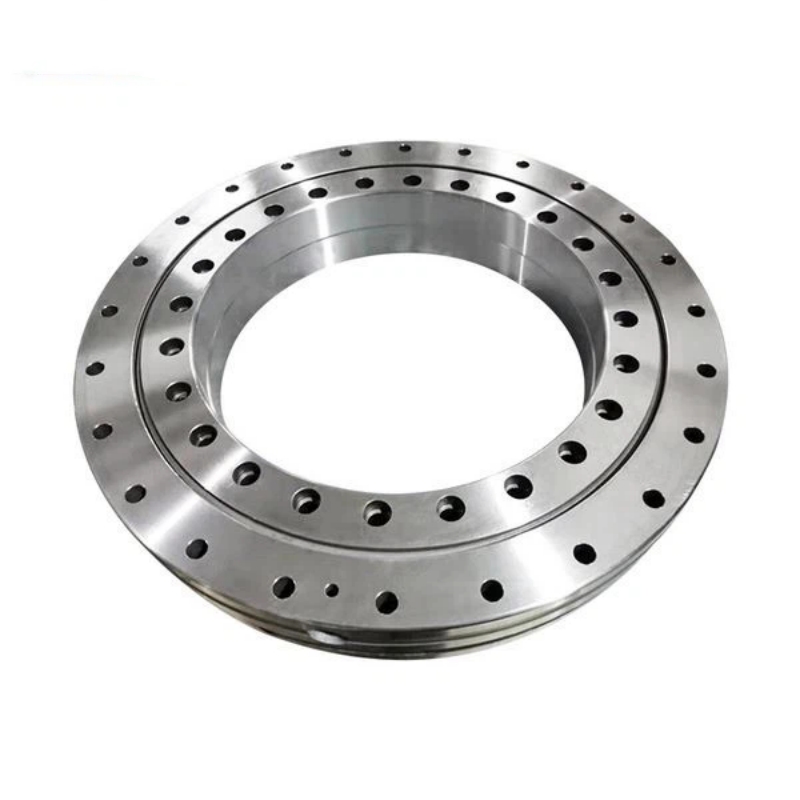

What are Precision Crossed Roller Bearings?

Precision crossed roller bearings are ultra-precision rolling bearings with cylindrical rollers arranged vertically and crosswise at 90° in the V-shaped raceway,separated by precision cages or isolation blocks.They are manufactured through precision grinding,superfinishing and optimized heat treatment processes,with precision grades up to P2,P4 and P5,and inner diameters ranging from 10mm to 1000mm.A single set of precision crossed roller bearings can bear radial loads,axial loads and overturning moments at the same time,replacing the combination of multiple standard bearings and greatly simplifying the mechanical structure.They integrate the advantages of thin-section design,with extremely thin cross-section,lightweight and miniaturized features,which can save a lot of installation space.NewBee Transmission provides a full range of crossed roller bearings including RA,RB,RU and CRBH series,and supports customized design of size,material,lubrication and sealing to meet the operating requirements of large slewing devices.

What are Large Slewing Devices?

Large slewing devices are large-scale mechanical devices used to drive heavy parts to achieve 360° rotary motion and precise positioning.They are the core execution components of large precision equipment,mainly including radar antenna rotary platforms,aerospace slewing mechanisms,simulation robot large rotary units,photoelectric navigation equipment rotary devices and wind power generation slewing systems.These devices have extremely strict performance requirements:they need to bear heavy static and dynamic loads,maintain micron-level rotary positioning accuracy,adapt to complex working environments such as high and low temperatures,and achieve long-term stable and smooth operation.The performance of rotating support bearings directly determines the working accuracy,reliability and service life of large slewing devices.

The Importance of Precision Crossed Roller Bearings in Large Slewing Devices

Precision crossed roller bearings are the core guarantee for the performance of large slewing devices,and their importance is reflected in the following key aspects:

Heavy-load and high rigidity:The line contact between rollers and raceways brings excellent rigidity,which can stably bear heavy radial,axial and overturning loads,and avoid deformation during the rotation of large slewing devices.

Ultra-high rotary precision:Micron-level rotary runout control ensures the precise positioning and stable rotation of large slewing devices,and meets the high-precision motion requirements of aerospace,radar and other equipment.

Compact and space-saving:The thin-section design breaks through the space limitations of large slewing devices,realizes the lightweight and miniaturized design of equipment,and improves the space utilization rate.

 Low friction and smooth operation:Optimized internal structure reduces friction torque and energy consumption,ensures smooth and low-vibration rotation,and extends the service life of the device.

High reliability and long service life:High-quality materials and precision manufacturing technology make the bearings adapt to complex working conditions,reduce maintenance frequency,and ensure the long-term stable operation of large slewing devices.

Manufacturer of Precision Crossed Roller Bearings

NewBee Transmission is a professional manufacturer of precision crossed roller bearings with 20 years of industry experience,focusing on providing high-end bearing solutions for large slewing devices:

Complete product range:Supplies RA,RB,RU,CRBH,SXU crossed roller bearings with precision grades P2/P4/P5 and a size range of 10-1000mm,which fully meets the matching needs of various large slewing devices.

Strong customized design capability:A professional R&D team of more than 30 senior engineers is familiar with international standards such as ISO,DIN and JIS.It can provide targeted design according to the load,speed and space constraints of large slewing devices,and complete sample development within 15 days.

Advanced manufacturing capacity:Equipped with fully automatic CNC machine tools,high-precision grinding equipment and heat treatment production lines,adopting precision cold ring rolling and superfinishing processes to ensure the consistency of micron-level precision.The monthly production capacity exceeds 2 million sets,which can meet the needs of small-batch trial production and large-volume orders.

Strict quality control system:Raw materials are double-verified by spectrometers and metallographic microscopes; key dimensions are online monitored,and 100% full inspection of noise,vibration and service life is carried out.It has passed ISO 9001 and GB/T 307.1 certifications,and can provide SGS third-party inspection reports.

Efficient global logistics service:Intelligent warehousing and customized anti-rust and shock-proof packaging ensure zero damage during transportation.Overseas warehouses in Europe and North America realize 7-10 days of fast delivery,supporting a variety of trade terms such as FOB,CIF and DDP.

For technical specifications,pricing,or custom bearing solutions:

Email:paul@newbeetrans.com

Website:www.newbeetrans.com
