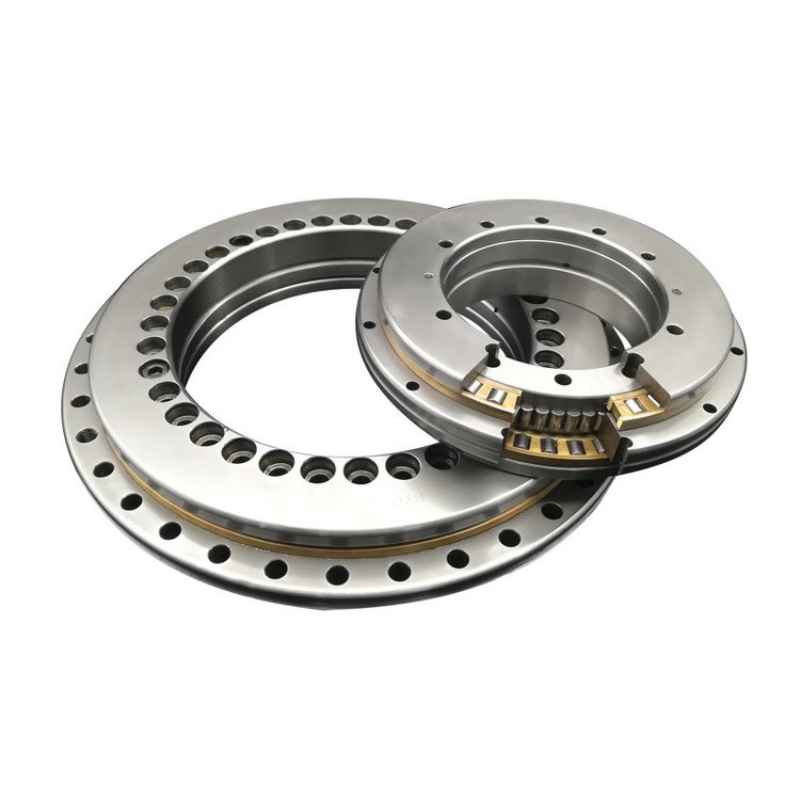

YRT Bearings Introduction

What are YRT Bearings?

YRT bearings (Axial-Radial Cylindrical Roller Bearings) are high-precision ready-to-fit units designed for rotary tables,indexing heads,and swivel milling heads.They combine a double-direction axial thrust bearing and a radial cylindrical bearing,allowing them to support radial loads,bidirectional axial loads,and tilting moments simultaneously without clearance.

Factory preload eliminates internal clearance completely to achieve zero-backlash rotation,delivering nanometer-level rotary accuracy.Newbeetrans YRT series covers complete specifications with inner diameter ranging from 50mm to 1200mm,outer diameter 126-1490mm and overall height 30-164mm.Multiple grades are optional:P2 ultra-precision & P4 precision for rotary accuracy; C0 light preload,C1 medium preload,C2 heavy preload for different load scenarios.

Main Raw Material Configuration

Bearing rings & rollers:GCr15 high-carbon chromium steel (surface quenched HRC 60-62) for standard working conditions; SUS440C stainless steel for corrosion-resistant cleanroom environments.

Cage:Nylon 66 lightweight spacer,brass high-strength cage or customized composite materials.

Lubrication & seal:PFPE vacuum grease for low-temperature/vacuum; circulating oil lubrication for high-speed variants,multi-layer dust-proof sealing optional.

Series

Standard YRT:Low-speed heavy-load universal type for CNC rotary tables;

YRTS High-speed version:Optimized roller and lubrication structure for higher limiting rotation speed up to 1200rpm;

YRTM Measuring version:Reserved installation interface for built-in angle encoders for ultra-precision measurement equipment.

The features of YRT Bearings

Triple-Component Combined Structure:Integrates two axial roller and cage assemblies with one full-complement radial roller assembly. This unique 3-row layout allows a single bearing to simultaneously handle high radial loads,double-direction axial loads,and heavy tilting moments.

Extreme Rigidity & Precision:Engineered with high radial and axial stiffness,high runout accuracy (often within microns),and pre-adjusted internal preload out of the factory.

Direct-Mount Installation:Features pre-drilled mounting holes directly on the inner and outer rings,eliminating the need for complex custom housing covers or shaft retaining shoulders.

Compact Footprint:Replaces the need for multiple separate bearings (e.g.,combining thrust and radial bearings),drastically saving axial space and simplifying drive mechanisms.

The applications of YRT Bearings

CNC Machine Tools & Milling Heads

Rotary Tables:Serves as the main support bearing for 4th and 5th-axis CNC rotary tables,maintaining accuracy under heavy cutting forces.

Indexing Tables & Heads:Provides micro-inch positioning accuracy for precise workholding and multi-axis indexing.

Robotics & Industrial Automation

Robot Joint Actuators:Used in heavy-duty robotic waist or arm joints requiring high tilting moment resistance in a compact footprint.

Precision Direct-Drive Systems:Pairs with torque motors/DDR motors in direct-drive rotary stages.

Metrology & Inspection Equipment

Optical & Laser Measuring Systems:Drives high-precision rotary encoder stages and coordinate measuring machines (CMMs) where axial runout must be minimal.

Radar & Telescope Mounts:Supports continuous tracking turntables requiring ultra-smooth rotation and zero backlash.

Medical & Aerospace Equipment

Medical Scanners:Used in high-precision rotational mechanisms for CT scanners,C-arm imaging systems,and surgical positioning tables.

Aerospace Test Rigs:Installed in centrifuge platforms and gimbal systems to simulate rotational stability.

Manufacturer of YRT Bearings

Newbeetrans is a professional manufacturer specializing in R&D and mass production of precision YRT bearings,with complete production lines for forging,ultra-precision grinding,heat treatment and performance testing,fully complying with ISO 9001 quality management standards.

Core Manufacturing Advantages

Full Series Standard Inventory:Complete stock of YRT50 to YRT1200 standard models for fast delivery within 10-20 working days; customized drawing solutions available for special specifications.

Strict Precision Inspection:Every finished YRT bearing passes rotary runout test,rigidity test,moment load fatigue test and temperature rise detection before delivery; full material and performance test reports can be provided upon request.

Diversified Customization Support:Support stainless steel anti-corrosion modification,vacuum low-outgassing lubrication,built-in encoder interface,special preload and sealing customization for semiconductor,medical and aerospace equipment.

Professional Technical Team:Provide bearing load calculation,preload matching,installation torque guidance and overall rotary structure optimization design for machine tool,automation and measurement equipment manufacturers.

Global Logistics Service:Complete air and sea cross-border logistics solutions to deliver products to customers all over the world stably.
