How Thin Section Four Point Contact Ball Bearings Are Applied in Satellite tracking antenna azimuth & elevation gimbal turrets?

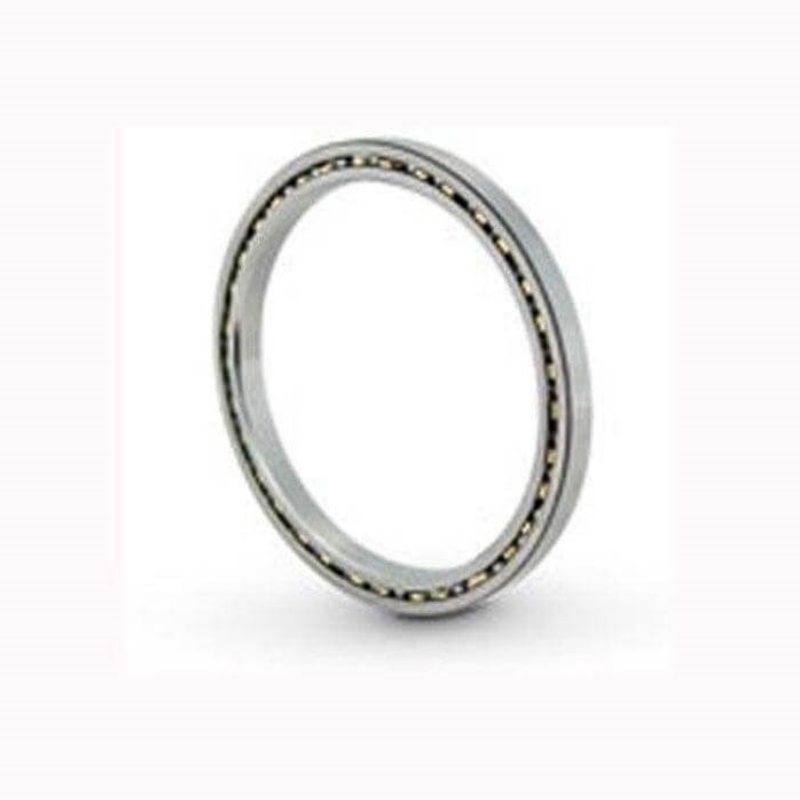

What are Thin Section Four Point Contact Ball Bearings?

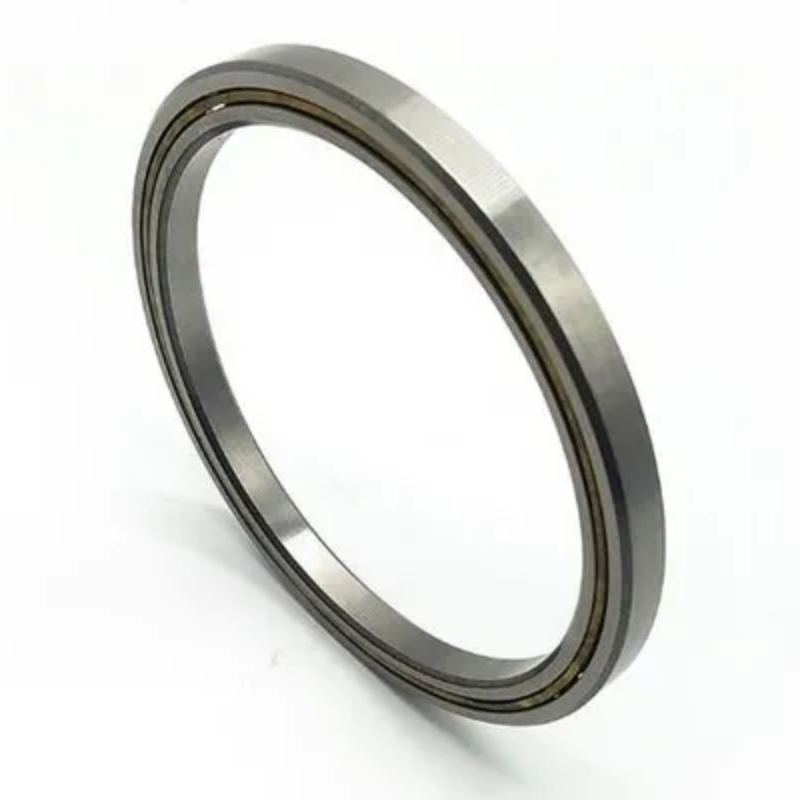

Thin section four-point contact ball bearings are space-saving,single-row bearings featuring a special "gothic arch" raceway that creates four points of contact between the balls and the rings.They are engineered to handle radial,axial,and moment loads simultaneously within a highly compact,lightweight envelope.Inner diameter:20 mm-1000 mm Cross-section:4.7625×4.7625 mm-25.4×25.4 mm.Material:bearing rings and rolling elements steel GCr15 or stainless steel 9Cr18 Precision levels:P0,P6,P5 and P4 Two structural forms are available:open type for clean indoor environments and sealed J-series with rubber contact seals for dust,splash and particle isolation.For lubrication,standard industrial grease and low-outgassing vacuum lubricants are optional.Standard thin section bearing models can be delivered within 7-15 working days,and customized sizes,materials and sealing schemes are arranged according to customer technical drawings.

What are Satellite tracking antenna azimuth & elevation gimbal turrets?

Satellite tracking antenna azimuth and elevation gimbal turrets are core high-precision rotary support structures for ground-based,shipborne and vehicle satellite communication tracking systems.The azimuth turret drives 360° full horizontal rotation of the antenna reflector,while the elevation gimbal realizes vertical pitching adjustment within a large angle range,jointly completing real-time locking and continuous tracking of moving geostationary,low-orbit satellites.These gimbals bear multiple complex loads during long-term outdoor operation:self-weight of large-diameter antenna panels,wind impact moment under all weather conditions,alternating axial tension and radial gravity during pitching and rotating,as well as vibration loads from vehicle navigation or ship sway.The internal installation space of the gimbal frame is strictly limited,and aerospace-grade lightweight design is required to reduce the overall load of the base support.The tracking system demands ultra-high angular stability and micro-angle positioning accuracy;tiny rotation clearance,friction torque fluctuation or bearing deformation will directly cause signal loss,tracking drift and communication interruption.In addition,the equipment operates outdoors under variable temperatures,rain,dust and salt fog,so the turret bearings must have excellent corrosion resistance,dust sealing and long-term maintenance-free performance.

The features of Thin Section Four Point Contact Ball Bearings

Multi-Directional Load Capacity:The unique geometry creates four points of contact between the ball and the raceway.This enables the bearing to accommodate bi-directional axial loads,radial loads,and overturning moments.

Space and Weight Savings:Unlike standard bearings where the cross-section scales up with the bore diameter,thin-section bearings maintain a constant cross-section across different sizes.This yields significant mass reduction and a much smaller design envelope.

Replaces Duplex Bearings:By handling thrust loads from both directions and resisting moment loads,a single four-point contact bearing can often do the work of a paired back-to-back or face-to-face angular contact bearing setup.

High Rigidity:They are highly rigid and provide excellent running accuracy,often used with an internal preload (using balls slightly larger than the raceway space) to eliminate clearance and increase overall stiffness.

The applications of Thin Section Four Point Contact Ball Bearings

Aerospace,Defense,& Satellites Gimbal & Pointing Systems:Used in missile launchers and radar tracking platforms for precise angular control and low-torque movement.

Space Exploration:Deployed in satellites and spacecraft mechanisms where minimizing payload weight is a strict requirement.

Robotics & Automation Articulating Joints:Utilized in the elbows and joints of robotic arms to reduce friction while handling loads in compact spaces.

Rotary & Indexing Tables:Keeps machine tools and work-holding devices rigid and perfectly aligned with minimal deflection.

Medical & Imaging Equipment Diagnostic Scanners:Supports smooth,quiet,and stable rotation in large machinery such as MRI and CT scanners.

Surgical Robotics:Enables precise,repeatable motion required for delicate robotic surgical procedures.Semiconductor Manufacturing Manufacturing Tools:Used in wafer steppers,chemical mechanical polishers (CMP),photolithography equipment to achieve high geometric accuracy in vacuum or cleanroom environments

The Importance of Thin Section Four Point Contact Ball Bearings in Satellite tracking antenna azimuth & elevation gimbal turrets

Constant Thin Cross-Section Optimizes Gimbal Compact & Lightweight Design:Satellite antenna azimuth and elevation gimbals adopt narrow frame structures to control overall equipment volume and base load.Thin section four point contact ball bearings feature unchanged thin cross-section regardless of inner diameter,greatly shrinking radial and axial installation space compared with standard bearing combinations.The lightweight bearing structure effectively lowers the total dead weight of the turret,reducing structural stress of the support base and improving the wind resistance stability of the whole antenna tracking system.

Single Bearing Bears All-Weather Composite Loads Simultaneously:A single thin four-point contact bearing replaces two groups of matched angular contact bearings.It synchronously bears radial antenna self-weight,bidirectional axial loads generated during pitching,and large wind overturning moments under storm conditions.The integrated bearing structure simplifies the internal transmission layout of azimuth and elevation turrets,cuts the number of matching mechanical parts,lowers assembly difficulty and overall development cost of tracking equipment.

Preloaded High Rigidity Eliminates Tracking Drift:Preload design removes bearing internal clearance and provides strong anti-tilting rigidity.When strong wind impacts the antenna or ships/vehicles produce sway vibration,the bearing restrains micro angular deflection of the reflector.It maintains ultra-stable micro-degree pointing precision,prevents satellite signal loss and communication disconnection caused by tracking offset,and ensures uninterrupted data transmission all day long

Ultra-Low Friction Torque Delivers Smooth Continuous Tracking:Super-finished raceways and miniature steel balls generate tiny,stable friction torque.The gimbal can perform slow,uniform continuous rotation and fine angle correction without rotation jitter,meeting the high dynamic response requirements of fast satellite capture and real-time continuous orbit tracking.

Custom Materials & Sealing Adapt Outdoor Harsh Environments:J-type double rubber sealed bearings block outdoor dust,rainwater and sand;9Cr18 stainless steel customized bearings with anti-salt-fog surface treatment are suitable for ship-borne coastal antenna gimbals.Matched low-temperature special grease ensures normal rotation under extreme high and low temperature conditions,extending bearing service life and reducing field maintenance work.

Long Fatigue Life Realizes Long-Term Unattended Operation:Precision ground raceways and high-hardness rolling elements have outstanding anti-fatigue performance,adapting years of uninterrupted reciprocating rotation of azimuth and elevation turrets.Low wear reduces regular lubrication and replacement cycles,greatly lowering on-site inspection and maintenance frequency for remote outdoor tracking stations.

Manufacturer of Thin Section Four Point Contact Ball Bearings

Newbeetrans is a professional manufacturer specializing in thin section bearings.We develop customized bearing solutions exclusively for satellite tracking antenna azimuth & elevation gimbal turrets,and other aerospace precision rotary equipment.

Aerospace Special Customization:Supply low-outgassing vacuum lubricated,salt-fog resistant stainless steel thin bearings with enhanced wide-temperature sealing;custom aerospace prototype samples can be delivered within 10–15 days.

Precision Manufacturing Standard:All inner and outer ring raceways adopt ultra-precision superfinishing to reach P0,P6,P5 and P4 accuracy grades.Every finished bearing undergoes full inspection of dimensional tolerance,rotational torque and runout before shipment.

Global Fast Shipment:Mass stock of standard KA / KB / KC / KD / KF / KG open thin series and JA / JB sealed series supports quick delivery;complete cross-border logistics service covers all global customers.

Authoritative Quality Certification:All products meet ISO 9001 and relevant national precision bearing standards,and SGS test reports can be provided upon request.
